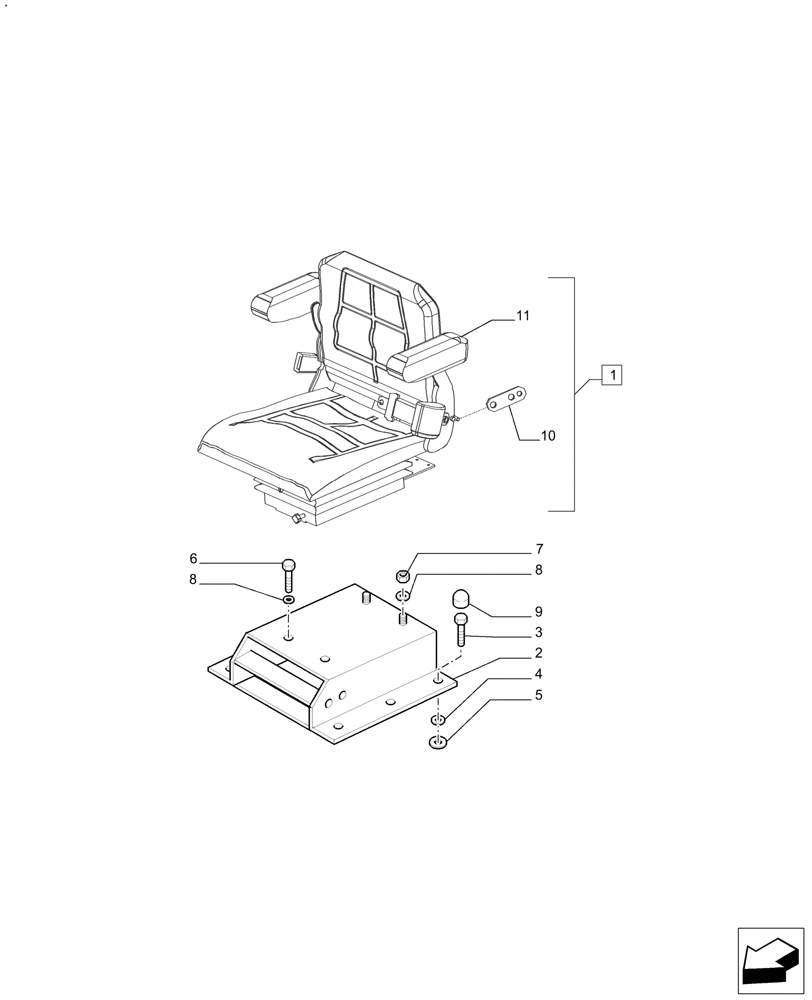

Запчасти Case IH FARMALL 110A (90.120.AD[01]) - DELUXE SEAT WITH RETRACTABLE BELTS AND SWITCH - W/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

73338103

Seat Assy Driver Mech, Incl 10 - 11

1шт.

2

5093531

SUPPORT

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

4

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

6шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

9

5089481

CAP,17mm OD

W/CAB

6шт.

10

73337113

LINK

Seat Belt

1шт.

11

87634294

DRIVER SEAT

ASSY, Incl in 1

1шт.
