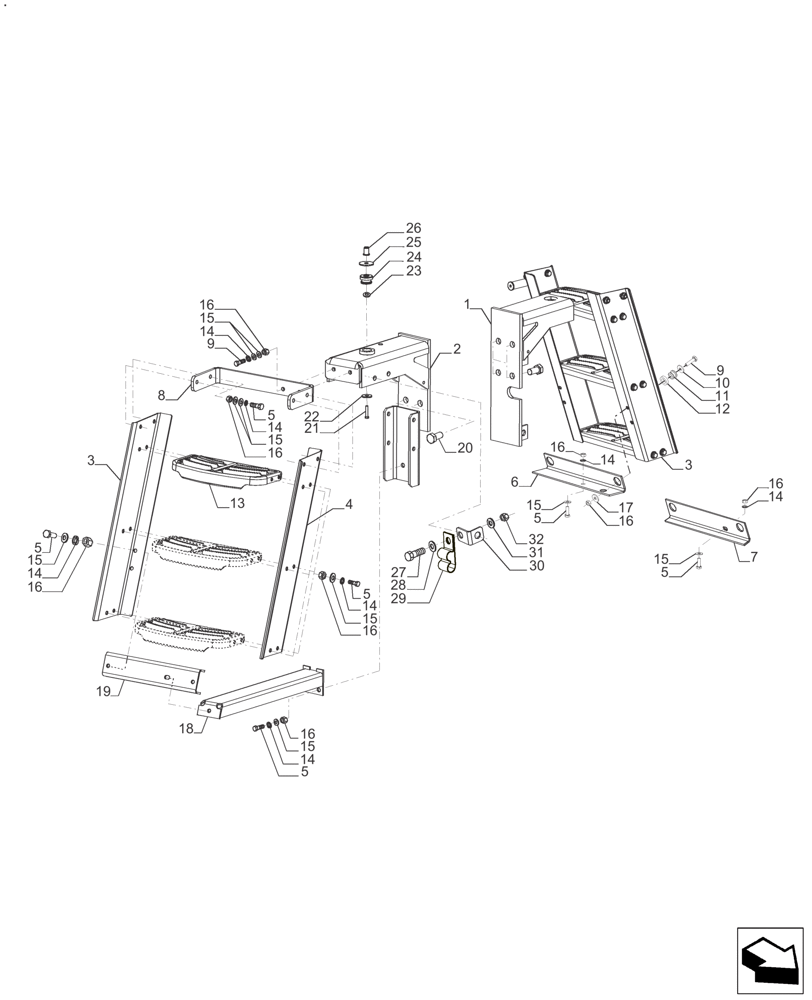

Запчасти Case IH FARMALL 110A (90.118.AE) - STEP, ROPS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

73337673

SUPPORT

Sup Assy Platform LH

1шт.

1

73335595

SUPPORT

Support Step LH CAB

1шт.

2

73337669

SUPPORT

Sup Assy Platform RH

1шт.

2

73335592

SUPPORT

Support Step RH CAB

1шт.

3

73337711

SUPPORT

Sup Step LH

1шт.

4

73337712

SUPPORT

Sup Step RH

1шт.

5

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

37шт.

6

73337971

SUPPORT

Sup Assy Low LH 6 Cyl.

1шт.

7

73337969

SUPPORT

Sup Assy Low LH 4 Cyl.

1шт.

8

73337716

SUPPORT

Support Steps RH

1шт.

9

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

4шт.

10

86636827

WASHER,0.41" ID x 1.25" OD x 0.13" Thk

2шт.

11

82009429

ISOLATOR

2шт.

12

73337059

SPACER,19.4mm ID x 31.75mm OD x 7.9mm L

2шт.

13

73337713

STEP

Step

6шт.

14

85700672

LOCK WASHER,M10

39шт.

15

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

45шт.

16

86500689

NUT,M10 x 1.5, Cl 10

41шт.

17

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

2шт.

18

73337973

BRACKET

Tie Rod Assy RH

1шт.

19

73337977

BRACKET

Bracket Low Step RH

1шт.

20

86624002

BOLT,Hex, M20 x 40mm, Cl 8.8

8шт.

21

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

22

86624147

WASHER,0.53" ID x 1.5" OD x 0.12" Thk

2шт.

23

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

24

73337033

ISOLATOR

Isolator, 2000N Assy.

2шт.

25

87613264

WASHER,0.53" ID x 2" OD x 0.12" Thk

2шт.

26

73336653

RIVET,Pop, 16mm OD x 25mm L

Rivet Thread M12

2шт.

27

83952638

SCREW,Hex, M10 x 25mm

1шт.

28

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

2шт.

29

83934650

CLIP

1шт.

30

73335063

SUPPORT

1шт.

31

85700672

LOCK WASHER,M10

1шт.

32

82879516

NUT,M10, G8

1шт.
