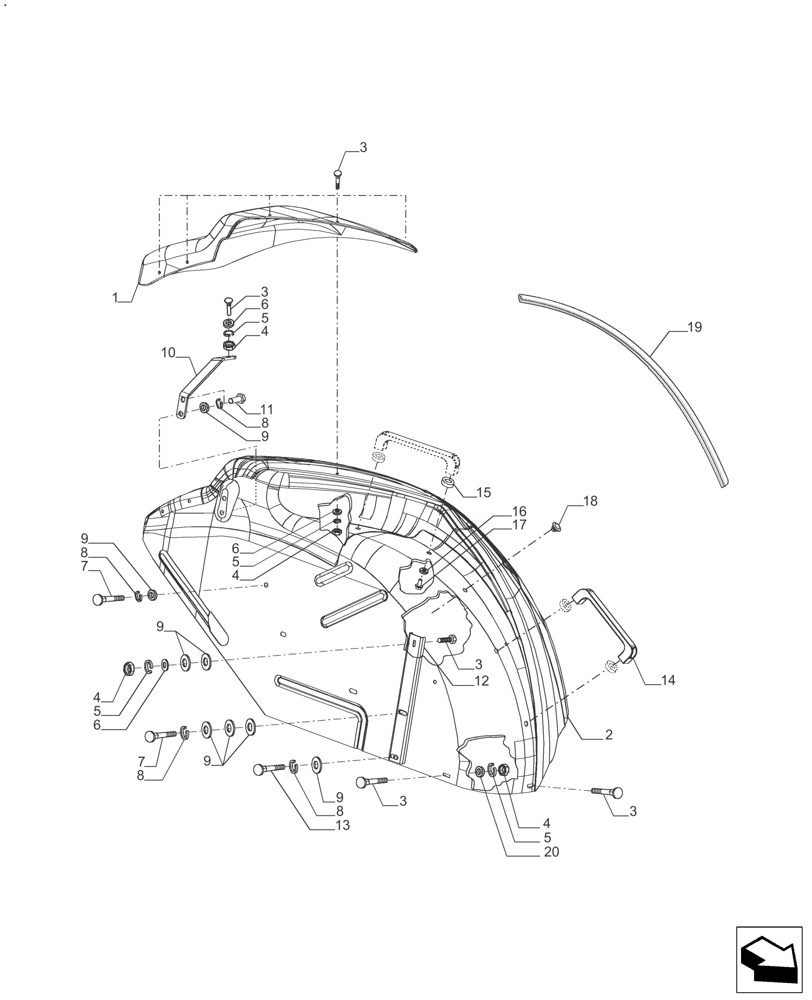

Запчасти Case IH FARMALL 110A (90.116.AC[02]) - REAR FENDER - LH 4/6 CYL. (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82988318

COVER,Fender

Upper LH

1шт.

2

73336982

REAR FENDER

Fender Rear LH

1шт.

3

88833

CARRIAGE BOLT,Short Nk, 1/4"-20 x 1", Gr 5

8шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

8шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

6

83926806

WASHER,1/4", SAE

7шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

BOLT M10X25 8.8 ZND HEX 1.5P

4шт.

8

85700672

LOCK WASHER,M10

7шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

11шт.

10

73337190

Sup RR LH Fender

1шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

12

73337197

FENDER

Support Fender Rear Lo

1шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

14

73338534

HANDRAIL

Handle 4/6 Cyl. (Use with one stair)

1шт.

14

73338534

HANDRAIL

Handle 4/6 Cyl. (Use with two stair)

2шт.

15

73338535

INSULATOR

Handrail Insulator 4/6 Cyl. (Use with one stair)

2шт.

15

73338535

INSULATOR

Handrail Insulator 4/6 Cyl. (Use with two stair)

4шт.

16

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

4/6 Cyl.

4шт.

17

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4/6 Cyl.

4шт.

18

73337400

PLUG

Plug 9/16 4/6 Cyl.

1шт.

19

82988179

TRIM

1шт.

20

83916712

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

, Start Year: 31-MAY-13

2шт.
