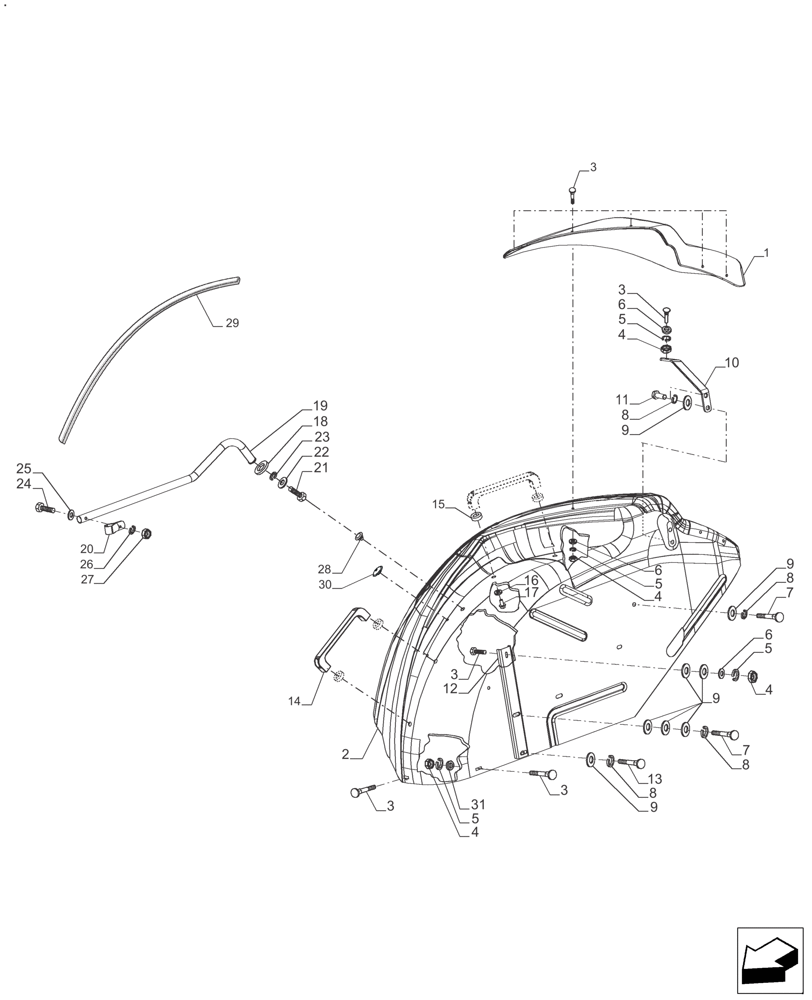

Запчасти Case IH FARMALL 110A (90.116.AC[01]) - REAR FENDER - RH 4/6 CYL. (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82988317

COVER,Fender

Fender, Upper R.H.

1шт.

2

73336979

FENDER

Rear Fender RH

1шт.

3

88833

CARRIAGE BOLT,Short Nk, 1/4"-20 x 1", Gr 5

8шт.

4

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

8шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

6

83926806

WASHER,1/4", SAE

7шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

BOLT M10X25 8.8 ZND HEX 1.5P

4шт.

8

85700672

LOCK WASHER,M10

7шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

11шт.

10

73337187

Support RR RH Fender

1шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

12

73337197

FENDER

Support Fender Rear Low

1шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

14

73338534

HANDRAIL

Handle 4/6 Cyl. (Use with one stair)

1шт.

14

73338534

HANDRAIL

Handle 4/6 Cyl. (Use with two stair)

2шт.

15

73338535

INSULATOR

Handrail Insulator 4/6 Cyl. (Use with one stair)

2шт.

15

73338535

INSULATOR

Handrail Insulator 4/6 Cyl. (Use with two stair)

4шт.

16

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

4/6 Cyl.

4шт.

17

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4/6 Cyl.

4шт.

18

82988223

INSULATOR

4/6 Cyl. (Use with one stair), Years: -30-SEP-13

1шт.

18

73337137

Cushion Handrail, 4/6 Cyl., Start Year: 30-SEP-13

1шт.

19

73335128

HANDRAIL

Handrail Assy. R.H. 4/6 Cyl.

1шт.

20

73335224

BRACKET, SUPPORTING

4/6 Cyl. (Use with one stair)

1шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4/6 Cyl., Start Year: 28-FEB-13

1шт.

22

81845769

LOCK WASHER,5/16"

4/6 Cyl.

1шт.

23

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4/6 Cyl., Start Year: 28-FEB-13

1шт.

24

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

4/6 Cyl.

1шт.

25

83926806

WASHER,1/4", SAE

4/6 Cyl.

1шт.

26

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

4/6 Cyl.

1шт.

27

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4/6 Cyl.

1шт.

28

73337400

PLUG

Plug 9/16, 4/6 Cyl. (Use with one stair)

2шт.

29

82988179

TRIM

(Use without stair)

1шт.

30

73335235

BUTTON PLUG

2шт.

31

83916712

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

, Start Year: 31-MAY-13

2шт.
