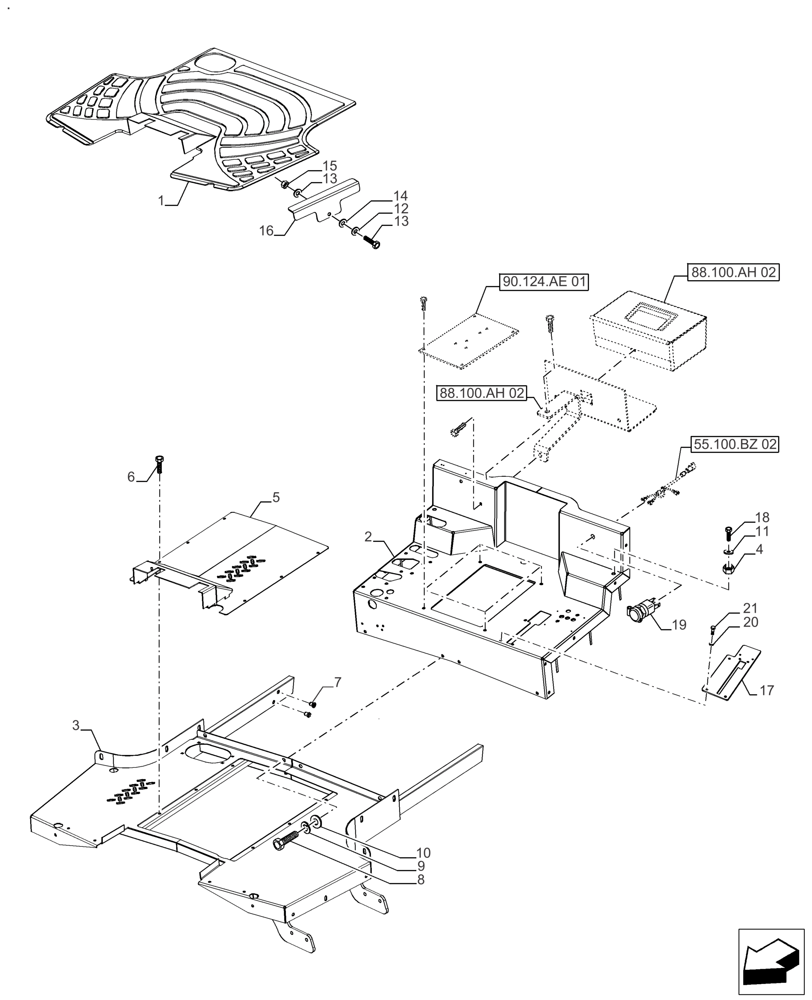

Запчасти Case IH FARMALL 110A (90.110.AP[02]) - VAR - 333107, 334107, 336107 - PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

73336605

FLOOR MAT

Platform

1шт.

2

73337182

PLATFORM

Platform Assy. Rear

1шт.

3

73336491

PLATFORM

Platform Assy.

1шт.

4

337475

NUT,M12, Cl 10

2шт.

5

73337842

COVER

Plate Platform

1шт.

6

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

6шт.

7

73336652

RIVET,13mm OD x 21mm L

Rivet Thread M10

2шт.

8

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

9

85700672

LOCK WASHER,M10

4шт.

10

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

Stl.

4шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

4шт.

14

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

15

83958007

NUT,M8, G8

2шт.

16

73336606

FLOOR MAT

Retainer Floor MAT

2шт.

17

73337183

CONTROL LEVER

1шт.

18

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

19

82002966

POWER SOCKET,M18 x 1

1шт.

20

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.
