(90.110.AP[01]) - MUDGUARD & FOOTBOARD, W/ CAB

Запчасти Case IH FARMALL 110A (90.110.AP[01]) - MUDGUARD & FOOTBOARD, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

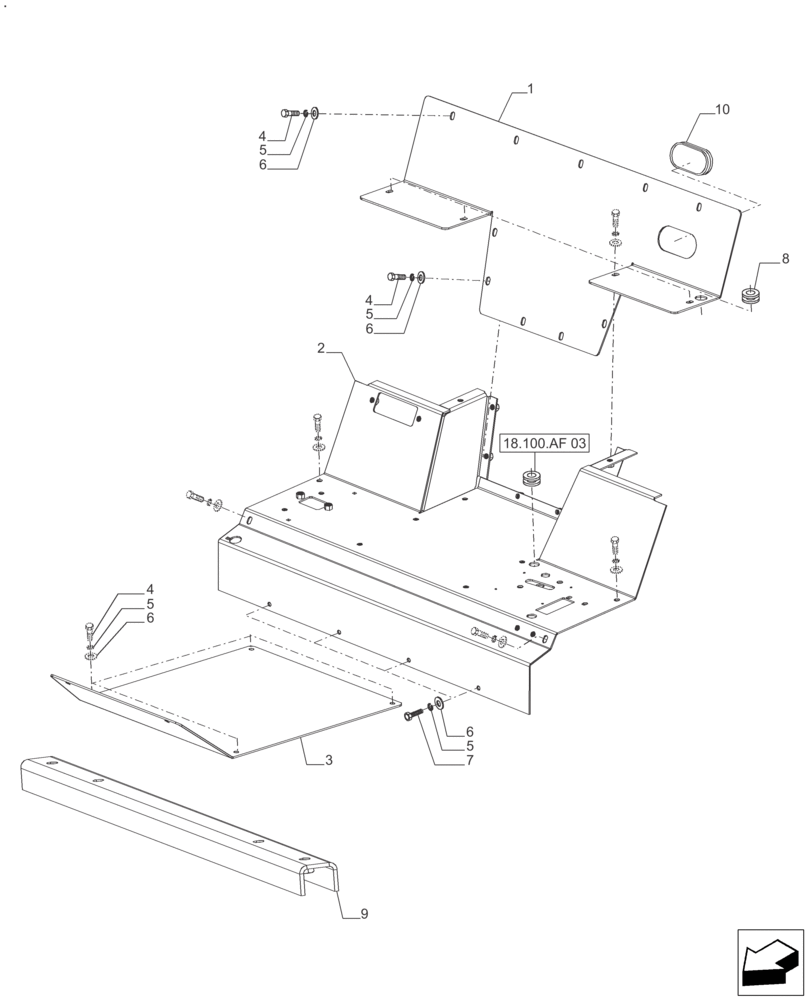

Схема запчастей Case IH FARMALL 110A - (90.110.AP[01]) - MUDGUARD & FOOTBOARD, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
6
6
6
8
5
4
5
3
7
5
2
6
4
9
18.100.af 03
4
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

73338621

PLATFORM

Platform Rear

1шт.

2

73338616

PLATFORM

Platform Assy. Middle

1шт.

3

73338131

ACCESS COVER

Cover inspection

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

29шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

27шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

33шт.

7

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

8

10399580

GROMMET,8mm ID x 14mm GRV ø x 20mm OD x 8mm Thk

1шт.

9

73337928

FLOOR

Reinforcement Assy Floor

1шт.

10

5173209

PLUG

1шт.
