(90.100.AC[02]) - COVERS, HOOD & SEPARATOR, 4/6 CYL. PLATFORM

Запчасти Case IH FARMALL 110A (90.100.AC[02]) - COVERS, HOOD & SEPARATOR, 4/6 CYL. PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

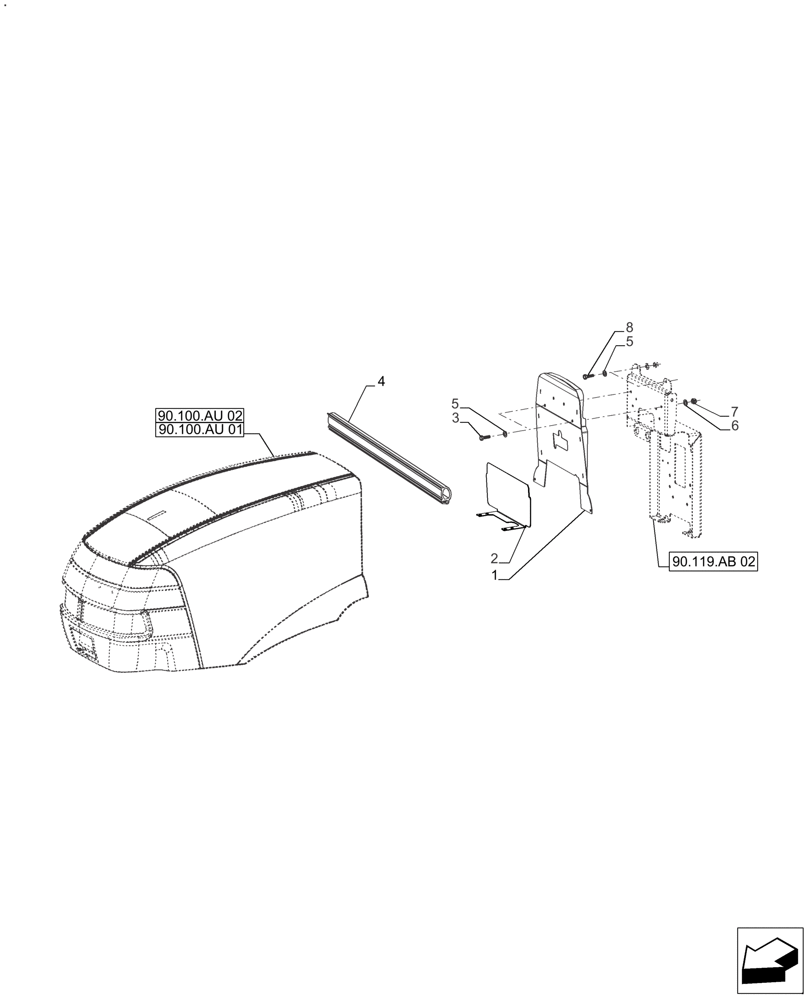

Схема запчастей Case IH FARMALL 110A - (90.100.AC[02]) - COVERS, HOOD & SEPARATOR, 4/6 CYL. PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
3
1
4
2
8
5
90.100.au 02
7
90.100.au 01
90.119.ab 02
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

73337762

BAFFLE

ASSY HEAT

1шт.

2

73337767

COVER

COVER

1шт.

3

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

4

73337766

RUBBER SEAL,1421mm L

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

6

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

7

43362

NUT,M8 x 1.25, Cl 10

4шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.
