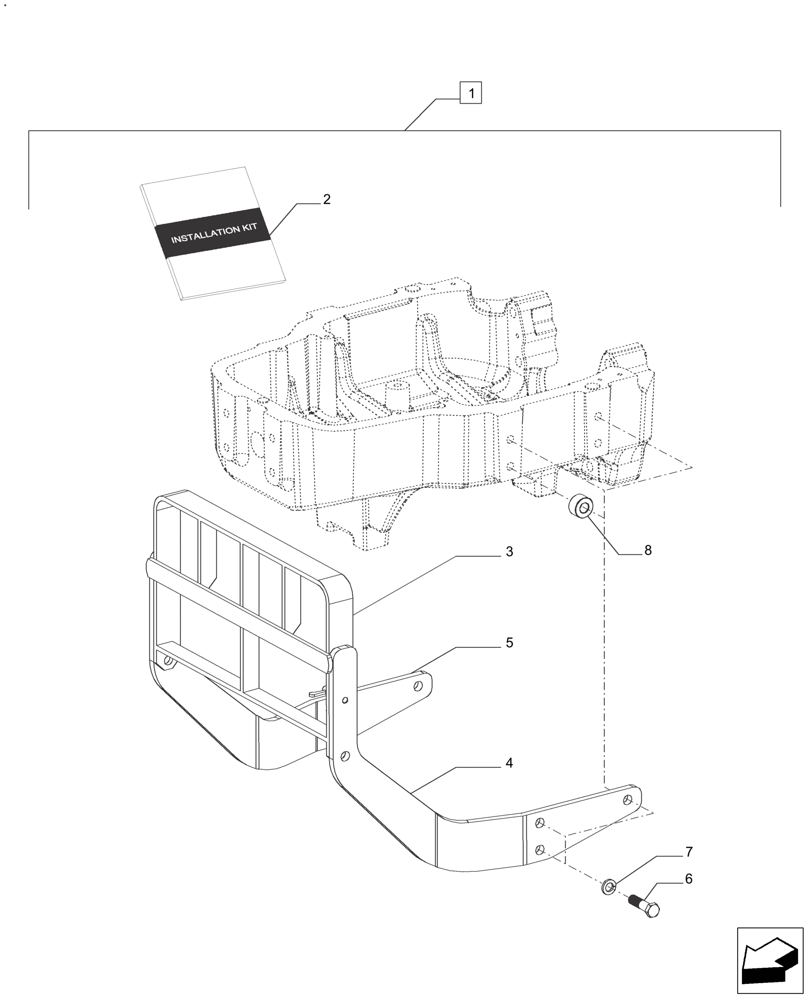

Запчасти Case IH FARMALL 110A (88.100.90[05]) - DIA KIT GRILL-GUARD W/ARMS LH & RH (88) - ACCESSORIES

1

719453200

DIA KIT, TRACTOR

DIA KIT, Grill-Guard W/Arms, Incl 2 - 8

1шт.

2

73338515

SERVICE KIT

INSTRUCTION, Installation, Grill-Guard W/Arms

1шт.

3

715824136

SERVICE KIT

1шт.

4

73338516

ARM

Arm LH (ALO 10414087)

1шт.

5

73338517

ARM

Arm RH (ALO 10414088)

1шт.

6

83914123

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

6шт.

7

83917225

LOCK WASHER,Helical Spring, 0.766" ID x 1.285" OD x 0.226"

6шт.

8

73338518

SPACER

Spacer 25 mm ZND

6шт.
