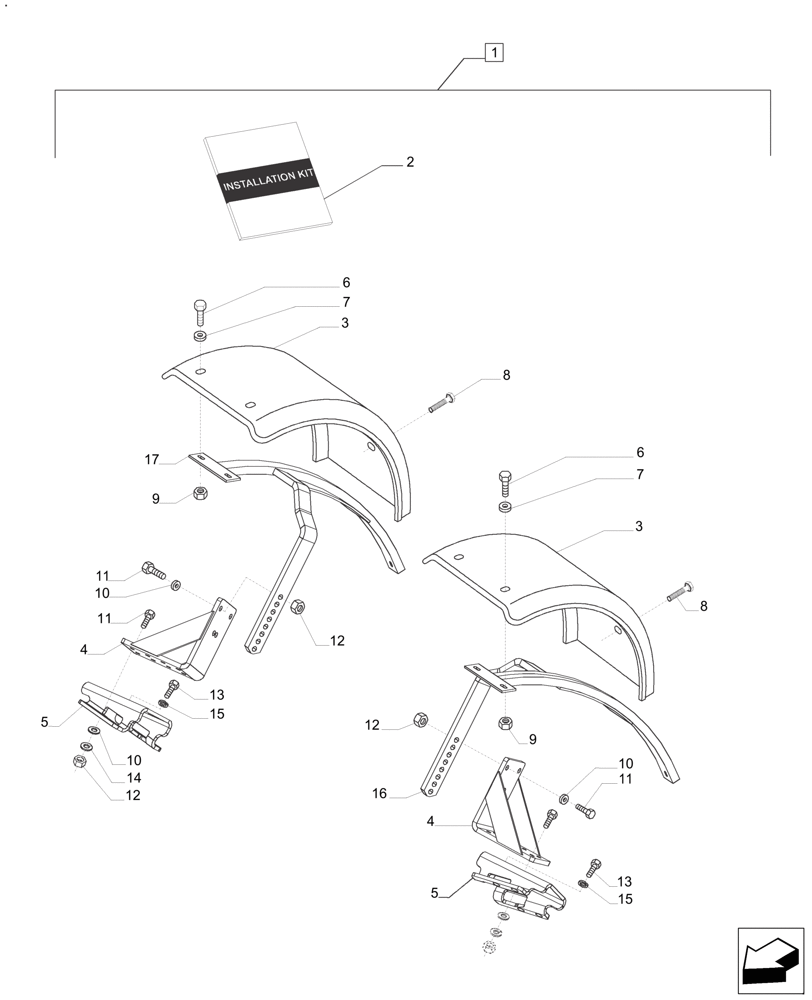

Запчасти Case IH FARMALL 110A (88.100.90[03]) - DIA KIT FRONT FENDERS, 4 CYL. 4WD (88) - ACCESSORIES

1

710168025

FRONT FENDERS F/FRON

DIA KIT, Front Fenders 4 Cyl., Incl 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

INSTRUCTION, Installation, Front Fenders 4 CyL., Incl in 1

1шт.

3

87582091

FRONT FENDER

(420mm Wide)

2шт.

4

73336884

SUPPORT

Support Assy Fender

2шт.

5

73336882

BASE PLATE

Base Fender

2шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

8

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

9

43362

NUT,M8 x 1.25, Cl 10

6шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

12шт.

11

120122

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

12шт.

12

337475

NUT,M12, Cl 10

Nylon

12шт.

13

1190518

HEX SOC SCREW,M16 x 30mm, Cl 8.8

, Start Year: 15-JAN-13

8шт.

14

10517074

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

12шт.

15

10572179

LOCK WASHER,M16

8шт.

16

73338682

SUPPORT

Assy Fender LH, Start Year: 15-JAN-13

1шт.

17

73338680

SUPPORT

Assy Fender RH, Start Year: 15-JAN-13

1шт.
