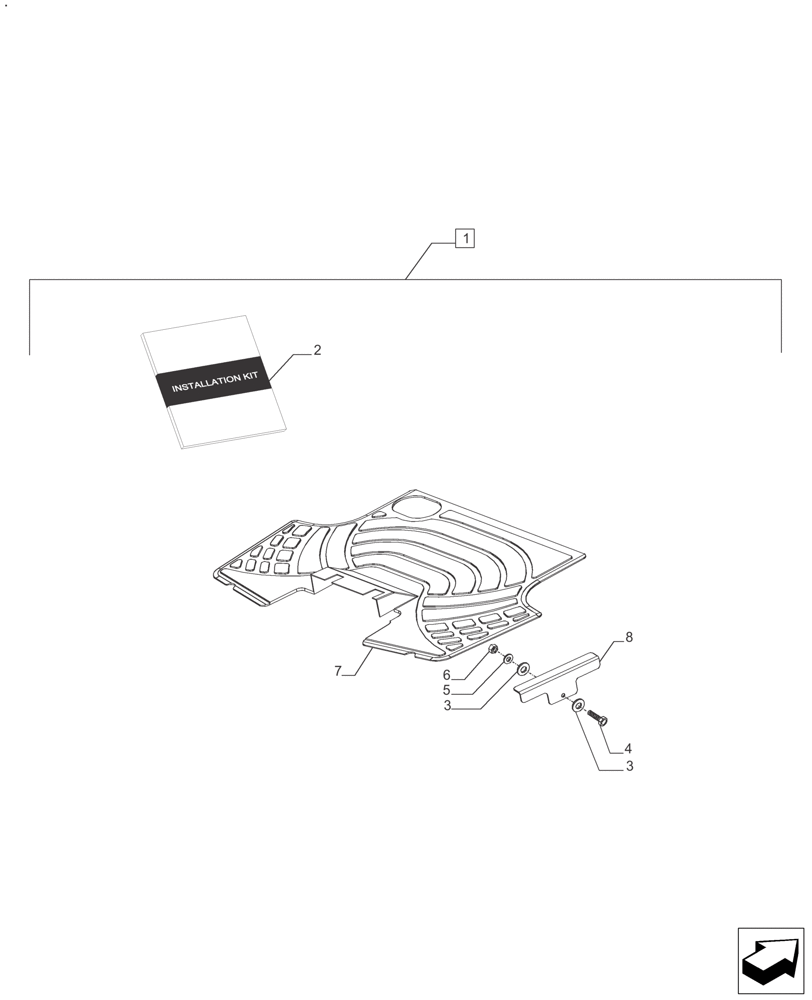

Запчасти Case IH FARMALL 110A (88.100.90[02]) - DIA KIT FLOORMAT PLATFORM (88) - ACCESSORIES

1

719438200

FLOOR MAT

DIA KIT, Floormat Platform, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

INSTRUCTION, Installation, Floormat Platform, Incl in 1

1шт.

3

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

4шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

5

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

6

83958007

NUT,M8, G8

2шт.

7

73336605

FLOOR MAT

Floormat Platform

1шт.

8

73336606

FLOOR MAT

Retainer Floormat

2шт.
