(88.100.90[01]) - DIA KIT EXTENSION MIRROR CAB

Запчасти Case IH FARMALL 110A (88.100.90[01]) - DIA KIT EXTENSION MIRROR CAB (88) - ACCESSORIES

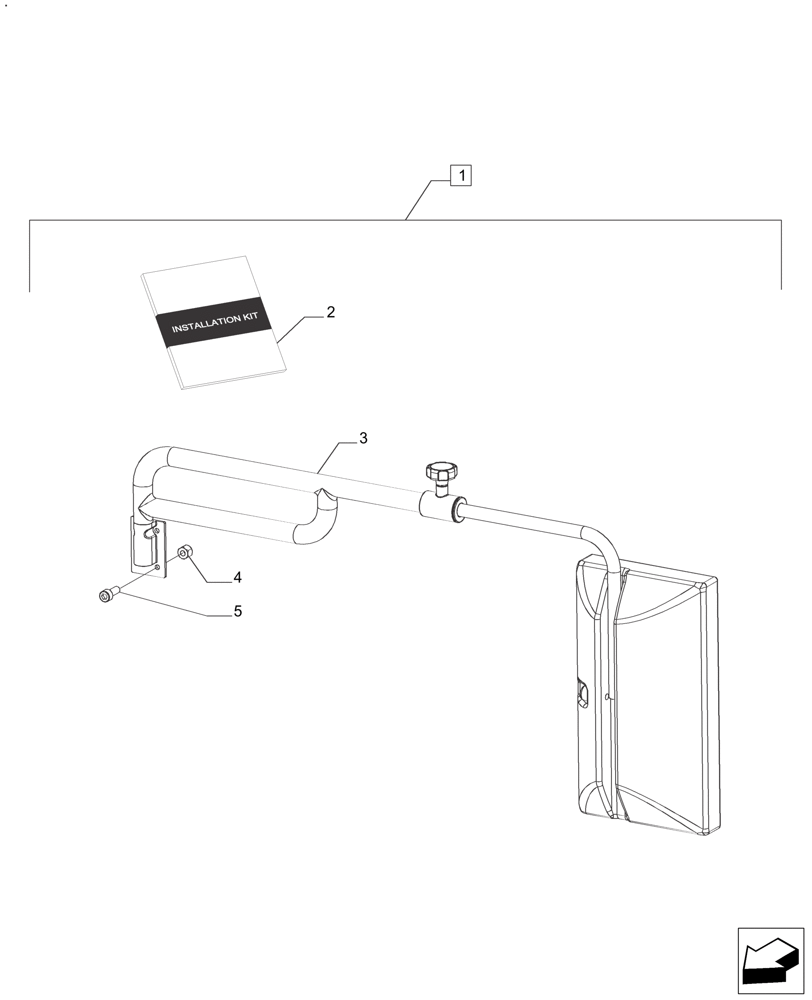

Схема запчастей Case IH FARMALL 110A - (88.100.90[01]) - DIA KIT EXTENSION MIRROR CAB (88) - ACCESSORIES
4
3
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719879505

DIA KIT, TRACTOR

DIA KIT EXTENSION MIRROR CAB, Incl 2 - 5

1шт.

2

5093362

INSTRUCTION

INSTRUCTION, Installation, Extension Mirror

1шт.

3

84470895

REAR VIEW MIRROR

2шт.

4

12574211

NUT,M6 x 1, Cl 8

Shaft Transmission Output Creeper

8шт.

5

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

8шт.
