Запчасти Case IH FARMALL 110A (88.100.55[05]) - DIA KIT REAR WINDSHIELD WIPER (88) - ACCESSORIES

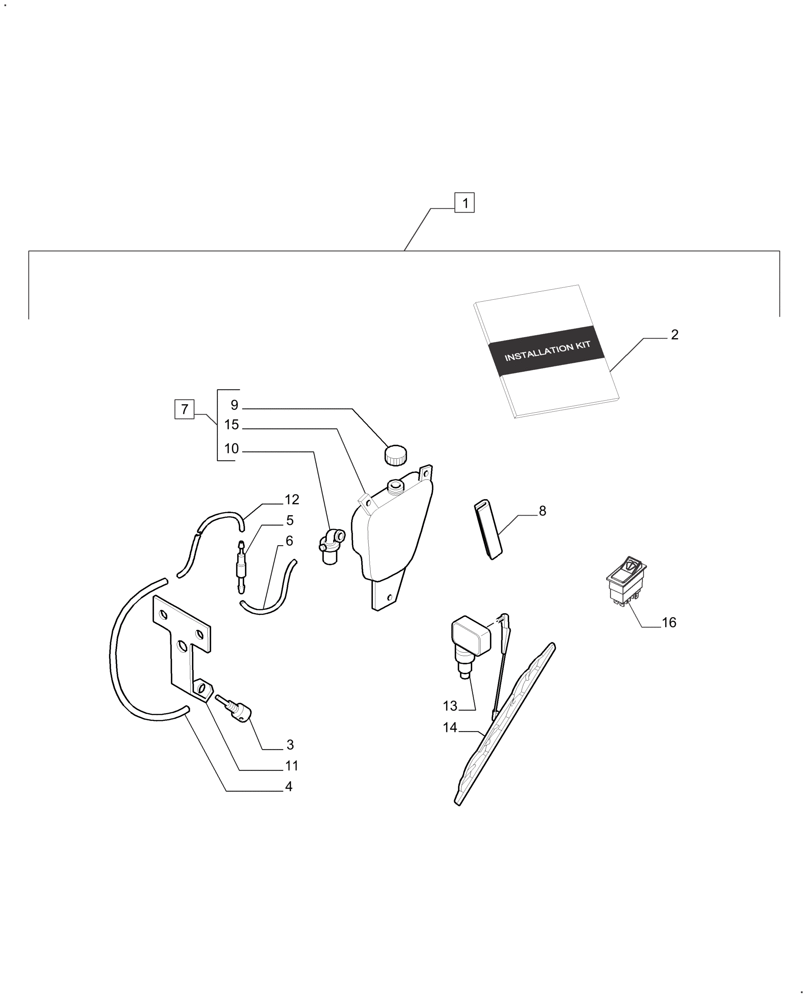

Схема запчастей Case IH FARMALL 110A - (88.100.55[05]) - DIA KIT REAR WINDSHIELD WIPER (88) - ACCESSORIES
6
15
13
16
9
14
10
3
8
11
1
7
2
12
4
5

Артикул

Название

Примечание

Количество

1

710642505

DIA KIT, TRACTOR

DIA KIT, Rear Winshield Wiper, Incl 2 - 16

1шт.

2

5093977

INSTRUCTION

INSTRUCTION, Installation, Rear Winshield Wiper

1шт.

3

5092907

NOZZLE

2шт.

4

5094134

HOSE,25mm ID x 165mm L

4шт.

5

5092910

FITTING

2шт.

6

5092909

HOSE,4mm ID x 200mm L

2шт.

7

84480060

RESERVOIR, WINDSHIEL

Double Outlet, Incl 9, 10, 15

1шт.

8

5094133

FLEXIBLE SHEATH

Rear

1шт.

9

87302624

CAP

1шт.

10

87309569

PUMP

2шт.

11

5094345

SUPPORT

Rear

1шт.

12

5093390

HOSE,4mm ID x 3320mm L

Rear

1шт.

13

5093388

WIPER MOTOR,12V

Rear

1шт.

14

5093389

KIT

Wiper Blade Rear

1шт.

15

84469258

RESERVOIR

Wiper Tank

1шт.

16

5094131

WINDSHIELD WIPER SWI

1шт.
