Запчасти Case IH FARMALL 110A (88.100.55[03]) - DIA KIT ALARM REVERSE PLATFORM (88) - ACCESSORIES

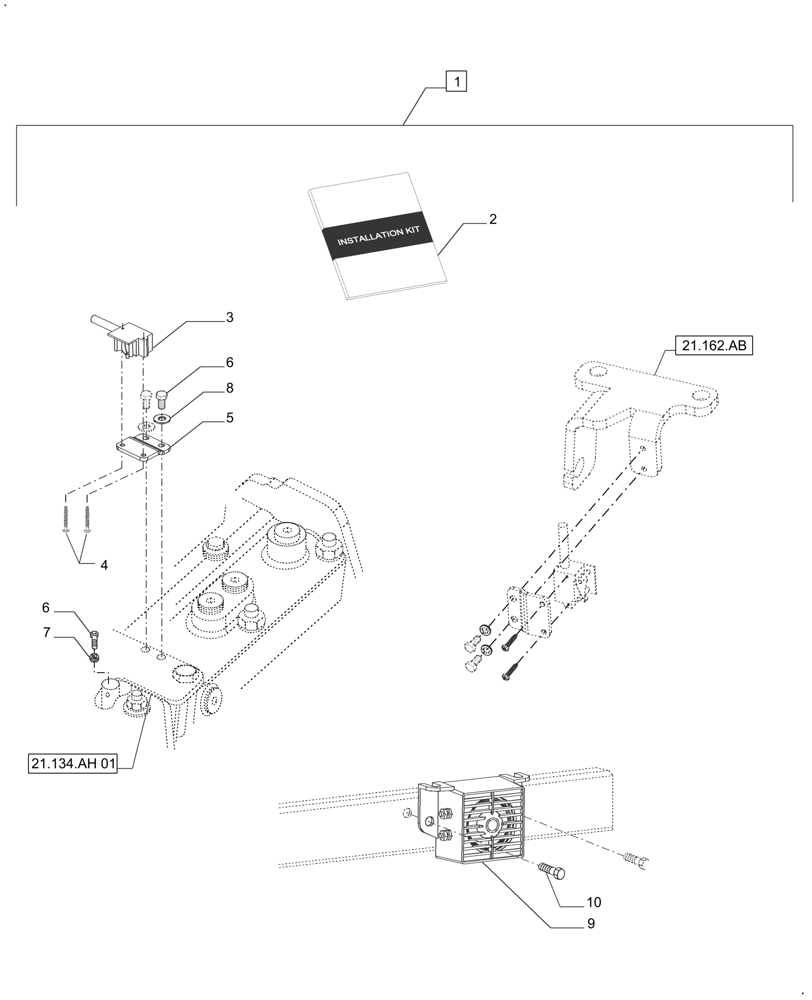

Схема запчастей Case IH FARMALL 110A - (88.100.55[03]) - DIA KIT ALARM REVERSE PLATFORM (88) - ACCESSORIES
7
1
21.162.ab
3
10
6
4
2
5
9
21.134.ah 01
6
8

Артикул

Название

Примечание

Количество

1

719445200

DIA KIT, TRACTOR

DIA KIT, Alarm Reverse Platform, Incl 2 - 10

1шт.

2

73338511

INSTRUCTION

INSTRUCTION, Installation, Alarm Reverse Platform

1шт.

3

84142375

PARK BRAKE SWITCH

Handbreak

1шт.

4

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

Switch Handbreak

2шт.

5

73338050

SUPPORT

SUPPORT SWITCH Handbreak

1шт.

6

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

3шт.

7

81838649

NUT,M5

x 0.8

1шт.

8

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

9

109511A1

ALARM

Reverse

1шт.

10

87752073

SCREW,Hex Wash Hd, M6 x 1 x 16mm

M6 x 1 x 16

2шт.

Выбрано товаров: 10
