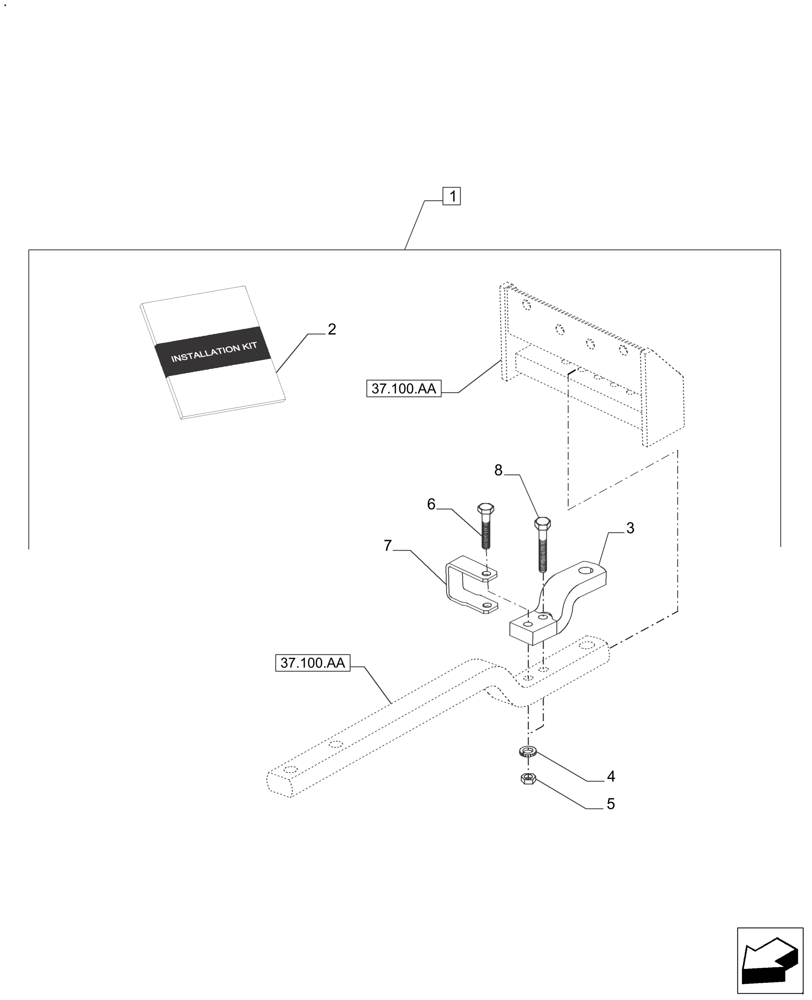

Запчасти Case IH FARMALL 110A (88.100.39[03]) - DIA KIT SWINGING DRAWBAR 6 CYL (88) - ACCESSORIES

1

719430201

CLEVIS

DIA KIT, Drawbar, Swinging 6 CYL., Incl 2 - 8

1шт.

The same like 47805469

1шт.

2

NSS

NOT SOLD SEPARAT

INSTRUCTION, Installation, Drawbar, Swinging 6 CYL., Incl in 1

1шт.

3

47466035

DRAWBAR

Strap Drawbar, Start Year: 28-FEB-13

1шт.

4

10572379

WASHER,M20.2 x 33.6 x 6 Thk, HT

2шт.

5

12164311

NUT,Hex, M20 x 1.5

2шт.

6

10960837

BOLT,Hex, M20 x 1.5 x 105mm, Cl 10.9

1шт.

7

73337272

SUPPORT

Chain Support Drawbar

1шт.

8

15989537

BOLT,Hex, M20 x 1.5 x 120mm, Cl 10.9

1шт.
