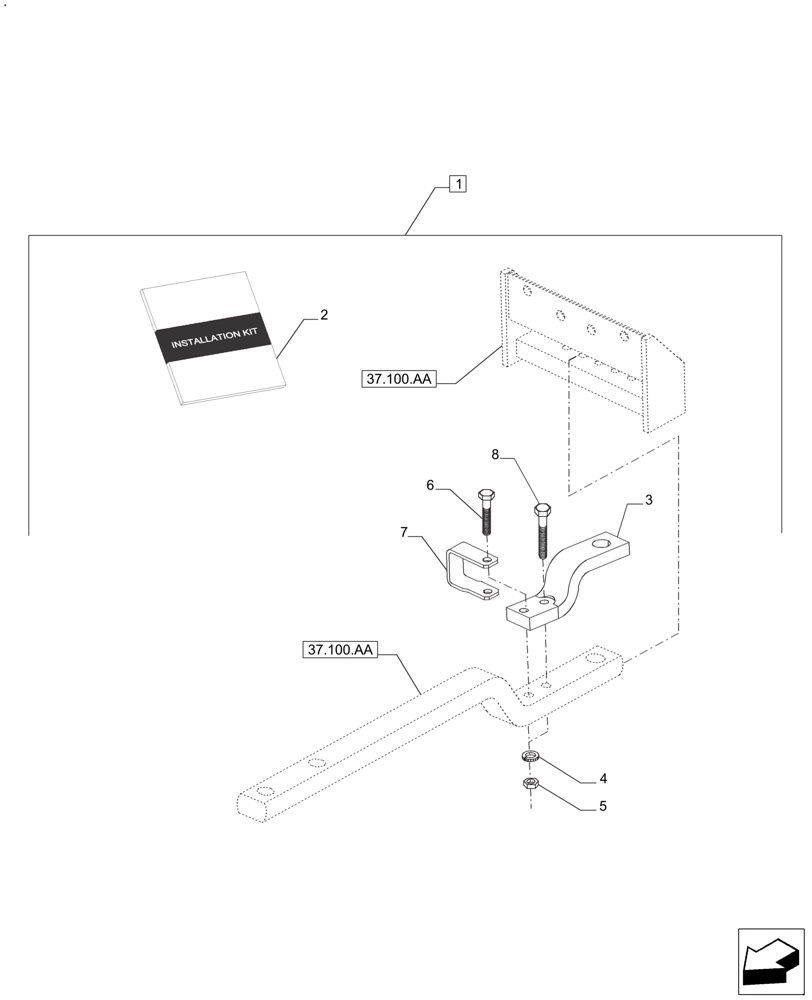

Запчасти Case IH FARMALL 110A (88.100.39[02]) - DIA KIT SWINGING DRAWBAR 4 CYL (88) - ACCESSORIES

1

719430200

CLEVIS

DIA KIT, Drawbar, Swinging 4 CYL., Incl 2 - 8

1шт.

The same like 47805466

1шт.

2

NSS

NOT SOLD SEPARAT

INSTRUCTION, Installation, Drawbar, Swinging 4 CYL., Incl in 1

1шт.

3

73337256

DRAWBAR

Strap Drawbar, Start Year: 28-FEB-13

1шт.

4

81815409

LOCK WASHER,5/8"

2шт.

5

81823240

NUT,5/8"-18, G5

2шт.

6

83902570

BOLT,Hex, 5/8" x 3 1/2", Gr 5

1шт.

7

73335028

CHAIN

Chain Support Drawbar

1шт.

8

83923832

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.
