Запчасти Case IH FARMALL 110A (88.100.39[01]) - DIA KIT FRONT END WAFER WEIGHTS (88) - ACCESSORIES

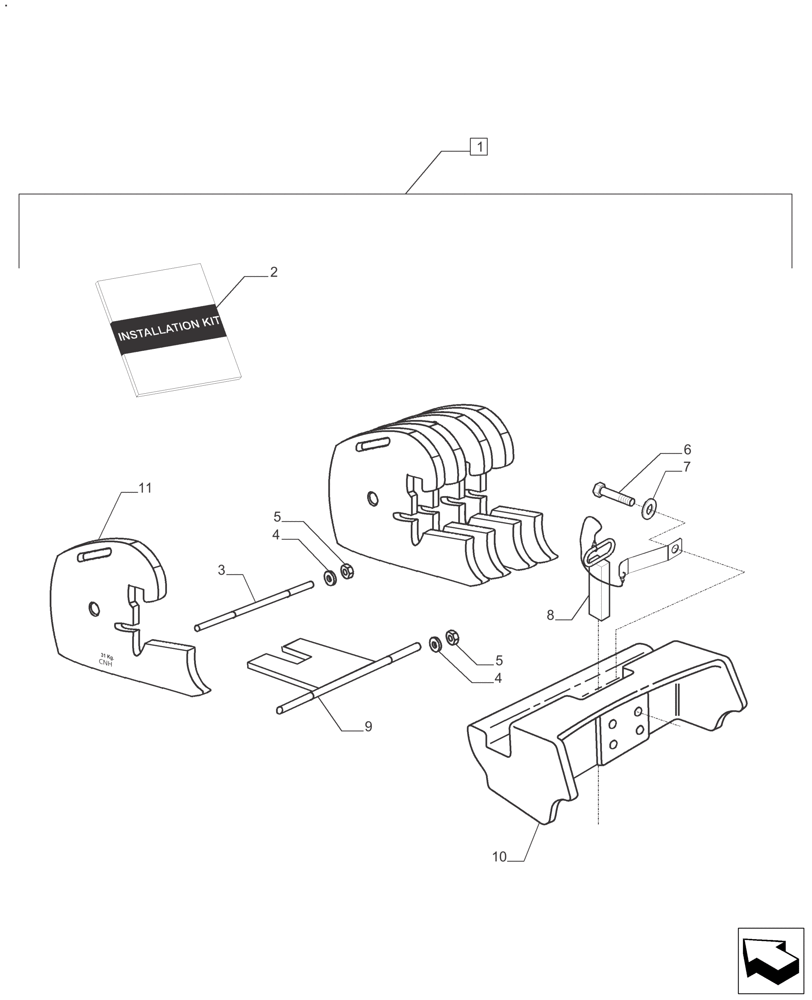

Схема запчастей Case IH FARMALL 110A - (88.100.39[01]) - DIA KIT FRONT END WAFER WEIGHTS (88) - ACCESSORIES
3
7
1
11
5
4
5
4
8
2
6
9
10

Артикул

Название

Примечание

Количество

1

11160003

WEIGHT PACKAGE

KIT 6 Front Weights, Cast 31 Kg. Incl 2 - 5, 9, 11

1шт.

not included items 6-8,10, these should be bought by separately

1шт.

1

11160004

WEIGHT PACKAGE

KIT 8 Front Weights, Cast 31 kg. Incl 2 - 5, 9, 11

1шт.

not included items 6-8,10, these should be bought by separately

1шт.

1

11160005

FRONT WEIGHT CARRIER

KIT 12 Front Weights, Cast 31 kg. Incl 2 - 5, 9, 11

1шт.

not included items 6-8,10, these should be bought by separately

1шт.

1

719665025

FRONT WEIGHT CARRIER

DIA KIT 16 Front Weights, Cast 31 kg. Incl 2 - 11

1шт.

2

73338449

INSTRUCTION

INSTRUCTION, Installation, 16 Front Weights

1шт.

3

82987968

STUD

Stud 8 Front Weights

1шт.

Use With 8 Front Weights|3|Usar Con 8 Contrapesos Delanteros

1шт.

3

82987967

STUD

Stud 12 Front Weights

1шт.

Use With 12 Front Weights|3|Usar Con 12 Contrapesos Delanteros

1шт.

3

82987716

THREADED ROD

Stud 16 Front Weights

1шт.

Use With 16 Front Weights|3|Usar Con 16 Contrapesos Delanteros

1шт.

4

81827393

WASHER,5/8" x 1 3/4" x .160/.108" Thk

Flat Stl.

4шт.

5

81814295

NUT,5/8"-11, G5

4шт.

6

83911686

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

4шт.

7

81845770

WASHER,0.83" ID x 1.44" OD x 0.13" Thk

4шт.

8

73335382

LOCK

Pin Assy. Front Weights

1шт.

9

82982929

BRACKET

Assy. Bracket 8 Front Weights

1шт.

Use With 8 Front Weights|3|Usar Con 8 Contrapesos Delanteros

1шт.

9

82987930

BRACKET

Assy. Bracket 12 Front Weights

1шт.

Use With 12 Front Weights|3|Usar Con 12 Contrapesos Delanteros

1шт.

9

82987715

BRACKET

Assy. Bracket 16 Front Weights

1шт.

Use With 16 Front Weights|3|Usar Con 16 Contrapesos Delanteros

1шт.

10

82983259

WEIGHT CARRIER

Carrier, Front Weights

1шт.

11

82987801

WEIGHT

Front, Weight, Cast 31 Kg.

8шт.

Use With 82982929 Bracket Assy, 8 Front Weights|3|Usar Con 82982929 Ens. Soporte, 8 Contrapesos Delanteros

1шт.

11

82987801

WEIGHT

Front, Weight, Cast 31 Kg.

12шт.

Use With 82987930 Bracket Assy, 12 Front Weigths|3|Usar Con 82987930 Ens. Soporte, 12 Contrapesos Delanteros

1шт.

11

82987801

WEIGHT

Front, Weight, Cast 31 Kg.

16шт.

Use With 82987715 Bracket Assy, 16 Front Weights|3|Usar Con 82987715 Ens, Soporte, 16 Contrapesos Delanteros

1шт.

Выбрано товаров: 32
