Запчасти Case IH FARMALL 110A (88.100.35[10]) - DIA KIT, TRACTOR, VALVE, ROPS, FROM 3 TO 4 BODIES, AFTER SN: CF01596M (88) - ACCESSORIES

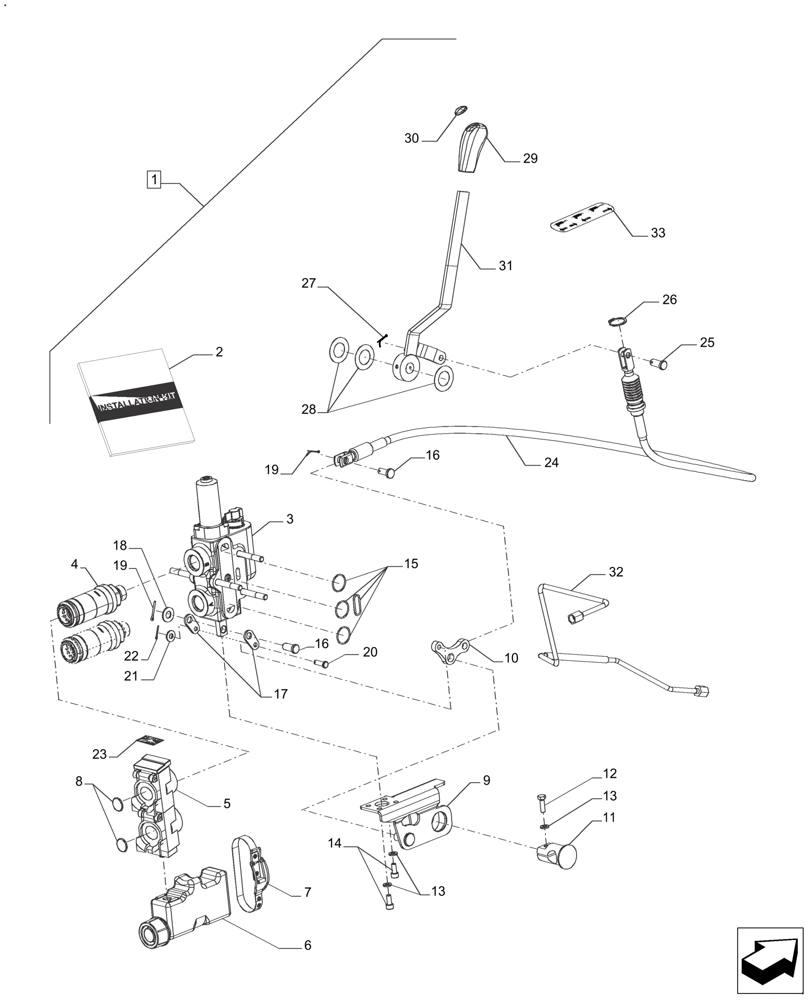

Схема запчастей Case IH FARMALL 110A - (88.100.35[10]) - DIA KIT, TRACTOR, VALVE, ROPS, FROM 3 TO 4 BODIES, AFTER SN: CF01596M (88) - ACCESSORIES
17
13
2
19
25
16
23
8
15
18
10
14
22
12
7
13
9
3
31
27
29
28
24
33
4
30
11
21
6
32
5
16
26
1
20
19

Артикул

Название

Примечание

Количество

1

48018884

KIT

Kit Installation, From 3 to 4 Bodies, Incl 1 - 33

1шт.

2

48018885

INSTRUCTION

Installation, Valve Kit

1шт.

3

47610794

Body Assy, Fourth Auxiliary Valve

1шт.

4

47370116

COUPLING

2шт.

5

82018943

DUST CAP

1шт.

6

47922580

BOTTLE

1шт.

7

82032061

CLIP

1шт.

8

82029895

DISC,20mm D, Black

Black

2шт.

9

73338186

SUPPORT

Support Assy, Remote Valve

1шт.

10

73338188

CAM

Cam, Pivot

1шт.

11

87683059

PIN,28mm OD x 46.5mm L

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

13

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

14

47537437

SCREW

SCREW, HEX SOC, M6X1.0X14.0 FULL 12.9ZND

2шт.

15

221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

4шт.

16

86637937

CLEVIS PIN,3/8" x 11/16"

2шт.

17

73338189

PLATE

Plate HT, Remote Valve Control

2шт.

18

85700664

WASHER,3/8" x .81" x .08" Thk

1шт.

19

81813880

COTTER PIN,3/32" x 3/4"

2шт.

20

81873225

PIN,1/4" x 49/64" L

1шт.

21

83926806

WASHER,1/4", SAE

1шт.

22

81454228

COTTER PIN,1/16" x .50" L

1шт.

23

5119109

DECAL

1шт.

24

47956630

CABLE

ASSY-HYD R/CNTRL VLV, with two clevis, OAL = 1000 mm / 39.37"

1шт.

25

385818

CLEVIS PIN,M8 x 20

1шт.

26

81865873

CLIP,19.40mm D

1шт.

27

81813879

COTTER PIN,1/16" x 3/4"

2шт.

28

82989331

SHIM

3шт.

29

47056482

KNOB

Black

1шт.

30

87698517

DATA PLAQUE

Black

1шт.

31

73335905

CONTROL LEVER

1шт.

32

73338003

TUBE

Tube, Hyd Assy, LS Valve Quad

1шт.

33

82000658

DECAL

1шт.

Выбрано товаров: 33
