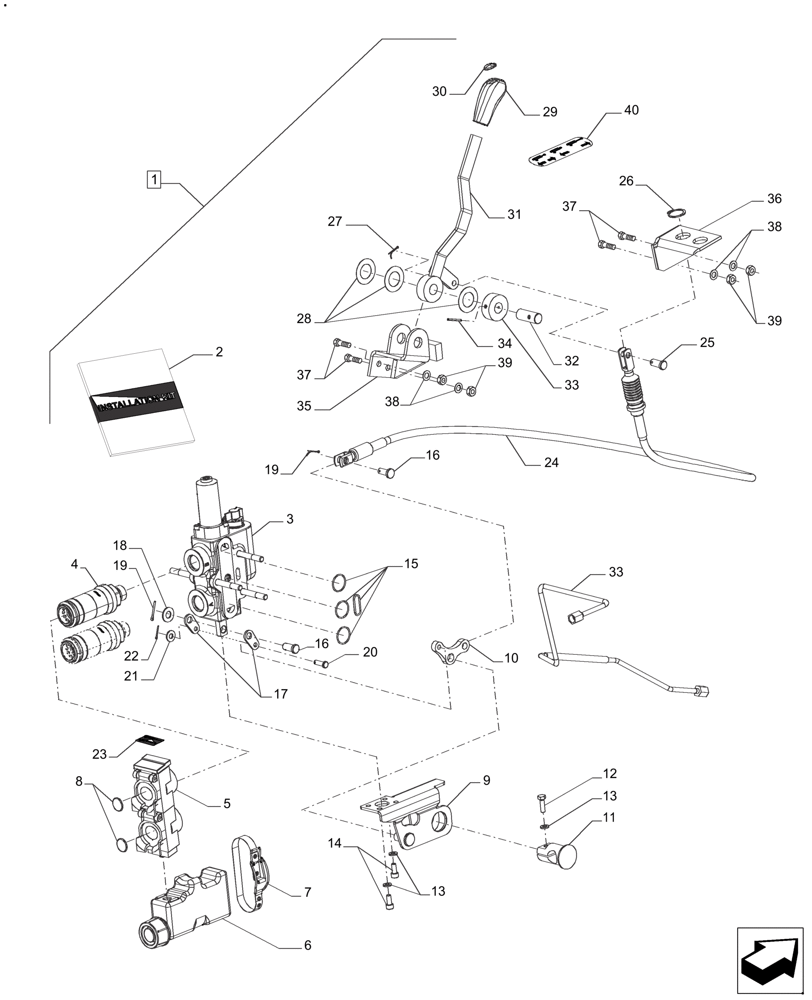

Запчасти Case IH FARMALL 110A (88.100.35[08]) - DIA KIT, TRACTOR, VALVE, ROPS, FROM 2 TO 3 BODIES, AFTER SN: CF01578M (88) - ACCESSORIES

1

48018903

KIT

Kit Installation, From 2 to 3 Bodies, Incl 2 - 41

1шт.

2

48018905

INSTRUCTION

Installation, Valve Kit

1шт.

3

47607581

VALVE

Body Assy, Third Auxiliary Valve

1шт.

4

47370116

COUPLING

2шт.

5

82018943

DUST CAP

1шт.

6

47922580

BOTTLE

1шт.

7

82032061

CLIP

1шт.

8

82029894

DISC,20mm OD x 5.5mm Thk, Green, PA6+30% Glass Fiber

Brown

2шт.

9

73338186

SUPPORT

Support Assy, Remote Valve

1шт.

10

73338188

CAM

Cam, Pivot

1шт.

11

87683059

PIN,28mm OD x 46.5mm L

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

13

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

14

47537437

SCREW

SCREW, HEX SOC, M6X1.0X14.0 FULL 12.9ZND

2шт.

15

221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

4шт.

16

86637937

CLEVIS PIN,3/8" x 11/16"

2шт.

17

73338189

PLATE

Plate HT, Remote Valve Control

2шт.

18

85700664

WASHER,3/8" x .81" x .08" Thk

1шт.

19

81813880

COTTER PIN,3/32" x 3/4"

2шт.

20

81873225

PIN,1/4" x 49/64" L

1шт.

21

83926806

WASHER,1/4", SAE

1шт.

22

81454228

COTTER PIN,1/16" x .50" L

1шт.

23

5119109

DECAL

1шт.

24

47956630

CABLE

ASSY-HYD R/CNTRL VLV, with two clevis, OAL = 1000 mm / 39.37"

1шт.

25

385818

CLEVIS PIN,M8 x 20

1шт.

26

81865873

CLIP,19.40mm D

1шт.

27

81813879

COTTER PIN,1/16" x 3/4"

1шт.

28

82989331

SHIM

3шт.

29

47056482

KNOB

Black

1шт.

30

87698516

DATA PLAQUE

Brown

1шт.

31

73335908

CONTROL LEVER

1шт.

32

73400391

AXLE

, Years: -29-NOV-13

1шт.

32

47451547

SHAFT

, Start Year: 29-NOV-13

1шт.

33

47607584

Spacer, Lever

1шт.

34

14162270

LOCK PIN,M3 x 28, Slotted

1шт.

35

73335901

SUPPORT

1шт.

36

73335899

SUPPORT

1шт.

37

82880843

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

38

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

39

83958007

NUT,M8, G8

4шт.

40

82000658

DECAL

1шт.

41

47530532

TUBE

Tube Assy, LS Valve Triple

1шт.
