Запчасти Case IH FARMALL 110A (88.100.35[06]) - DIA KIT, TRACTOR, VALVE, ROPS, FROM 1 TO 2 BODIES, AFTER SN: CF01573M (88) - ACCESSORIES

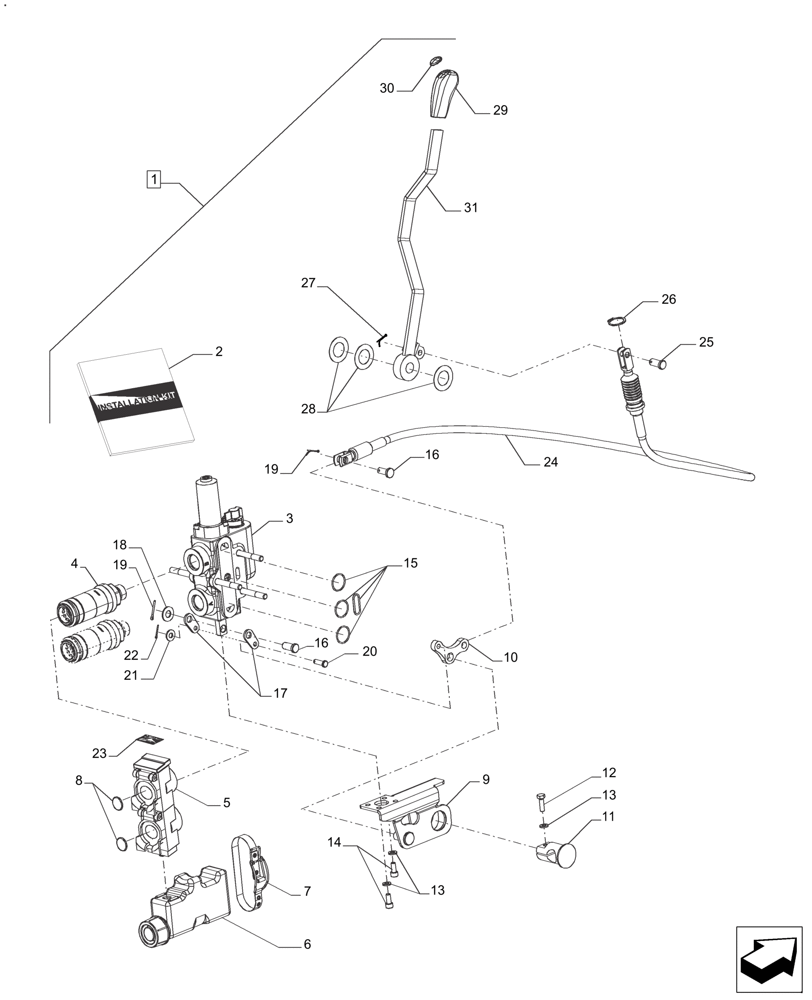

Схема запчастей Case IH FARMALL 110A - (88.100.35[06]) - DIA KIT, TRACTOR, VALVE, ROPS, FROM 1 TO 2 BODIES, AFTER SN: CF01573M (88) - ACCESSORIES
22
7
24
28
14
23
11
10
19
31
1
2
16
8
20
5
3
18
4
30
27
12
6
26
9
29
19
15
16
25
13
13
21
17

Артикул

Название

Примечание

Количество

1

718040200

KIT

Valve Kit Installation, From 1 to 2 bodies, Incl 2 - 31

1шт.

2

47610781

Instruction Installation, Valve Kit

1шт.

3

47610792

VALVE

Body Assy, Second Auxiliary Valve

1шт.

4

47370116

COUPLING

2шт.

5

82018943

DUST CAP

1шт.

6

47922580

BOTTLE

1шт.

7

82032061

CLIP

1шт.

8

82029893

LENS

Blue

2шт.

9

73338186

SUPPORT

Support Assy, Remote Valve

1шт.

10

73338188

CAM

Cam, Pivot

1шт.

11

87683059

PIN,28mm OD x 46.5mm L

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

13

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

14

47537437

SCREW

SCREW, HEX SOC, M6X1.0X14.0 FULL 12.9ZND

2шт.

15

221964

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

4шт.

16

86637937

CLEVIS PIN,3/8" x 11/16"

2шт.

17

73338189

PLATE

Plate HT, Remote Valve Control

2шт.

18

85700664

WASHER,3/8" x .81" x .08" Thk

1шт.

19

81813880

COTTER PIN,3/32" x 3/4"

2шт.

20

81873225

PIN,1/4" x 49/64" L

1шт.

21

83926806

WASHER,1/4", SAE

1шт.

22

81454228

COTTER PIN,1/16" x .50" L

1шт.

23

5119109

DECAL

1шт.

24

47769396

CABLE

L= 1200 mm

1шт.

25

385818

CLEVIS PIN,M8 x 20

1шт.

26

81865873

CLIP,19.40mm D

1шт.

27

81813879

COTTER PIN,1/16" x 3/4"

2шт.

28

82989331

SHIM

3шт.

29

47056482

KNOB

Black

1шт.

30

87698506

DATA PLAQUE

Blue

1шт.

31

73335477

LEVER

1шт.

Выбрано товаров: 31
