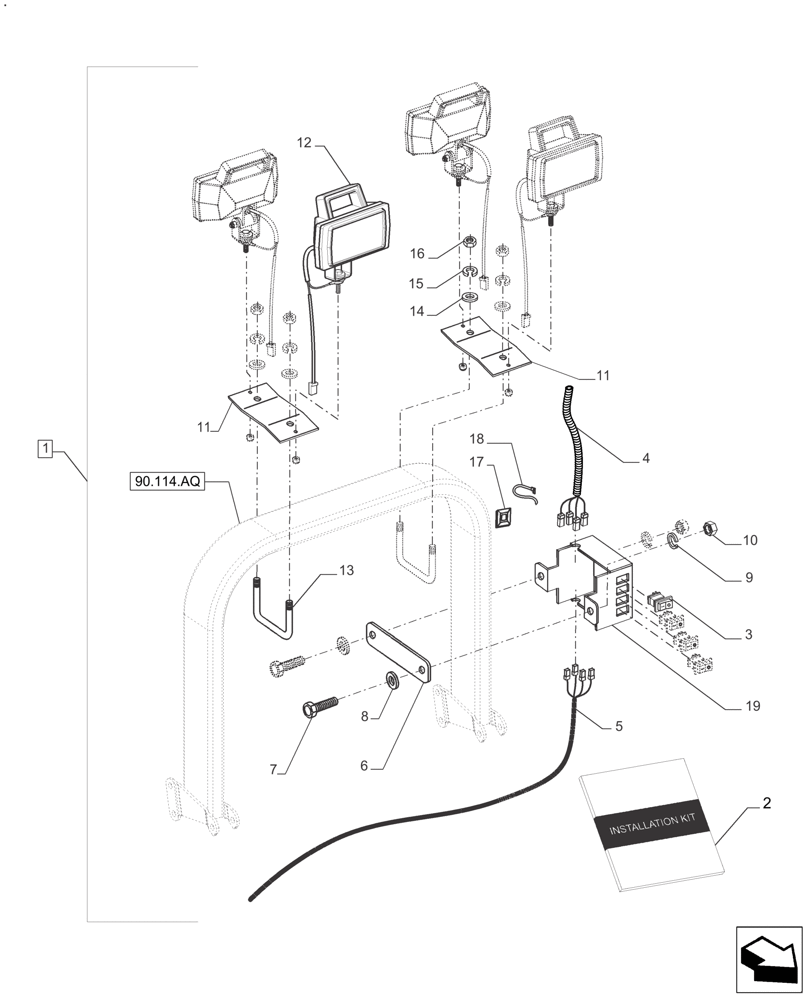

Запчасти Case IH FARMALL 110A (88.055.01) - DIA KIT, WORK LIGHTS, PLATFORM (88) - ACCESSORIES

1

718363005

DIA KIT, TRACTOR

Work Lights, Incl 2 - 19

1шт.

2

73335655

INSTRUCTION

Installation, Work Lights

1шт.

3

82987524

SWITCH ASSY

4шт.

4

82987574

ELECTRIC CABLE

Work Lights

1шт.

5

82987573

ELECTRIC CABLE

Lamp Feed

1шт.

6

82985386

PLATE

1шт.

7

81821509

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

83926806

WASHER,1/4", SAE

2шт.

9

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

10

81824361

NUT,1/4"-20, G5

2шт.

11

73335693

SUPPORT

Support, Work Lamp

2шт.

12

82989685

WORK LAMP,Halogen, 12V, 55W, Clear

Work Lamp

4шт.

13

82980370

U-BOLT

2шт.

14

81825893

WASHER,1/2" ID x 1.062" OD x 0.095" Thk

4шт.

15

83925802

LOCK WASHER,1/2"

4шт.

16

81825526

LOCK NUT,1/2"-13, G5

4шт.

17

82984995

FASTENER

W/Adhesive

3шт.

18

83933061

STRAP

9шт.

19

82985385

SUPPORT

Switch

1шт.
