(55.785.AO) - ELECTRICAL, SWITCH & HORN

Запчасти Case IH FARMALL 110A (55.785.AO) - ELECTRICAL, SWITCH & HORN (55) - ELECTRICAL SYSTEMS

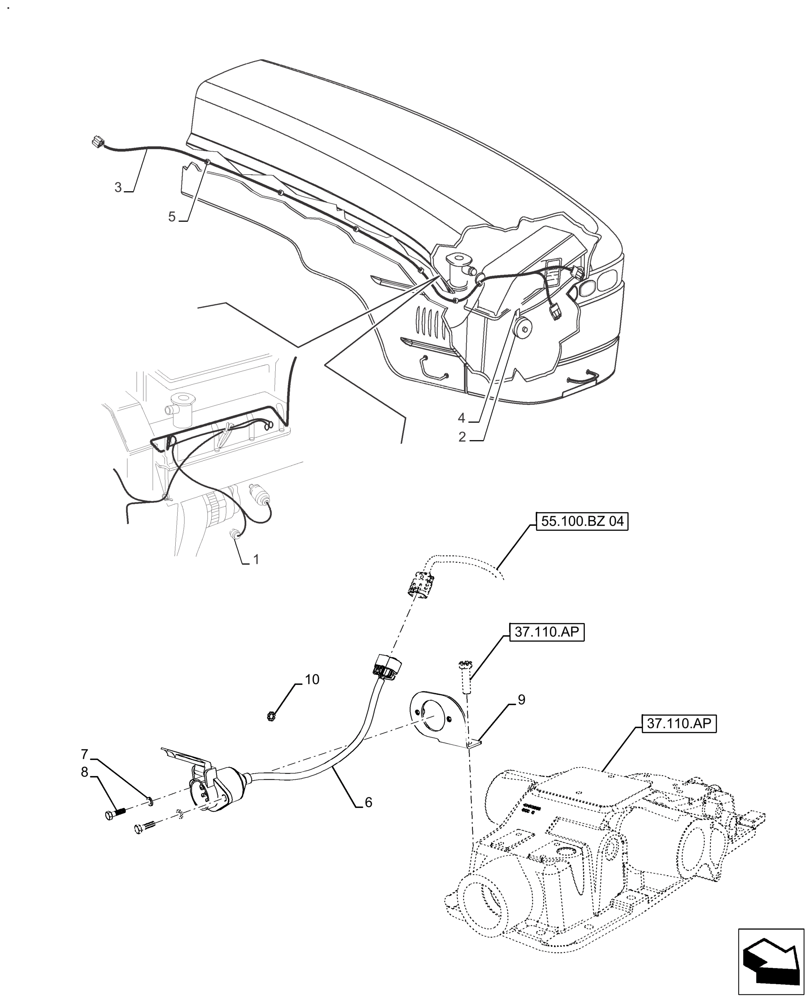

Схема запчастей Case IH FARMALL 110A - (55.785.AO) - ELECTRICAL, SWITCH & HORN (55) - ELECTRICAL SYSTEMS
37.110.ap
10
4
2
7
6
3
5
1
8
9
55.100.bz 04
37.110.ap
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2852889

PRESSURE SWITCH

Switch Assy., Oil Pressure Sender

1шт.

2

5087129

HORN

Assy.

1шт.

3

82988686

SUPPORT

Support, Horn

1шт.

4

82988673

WIRE HARNESS

Wire Harness, Front Lights

1шт.

5

83976853

CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type

.25 R

6шт.

6

47724277

WIRE HARNESS

Trailer Socket

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

9

47569753

BRACKET

Trailer Socket

1шт.

10

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

1шт.
