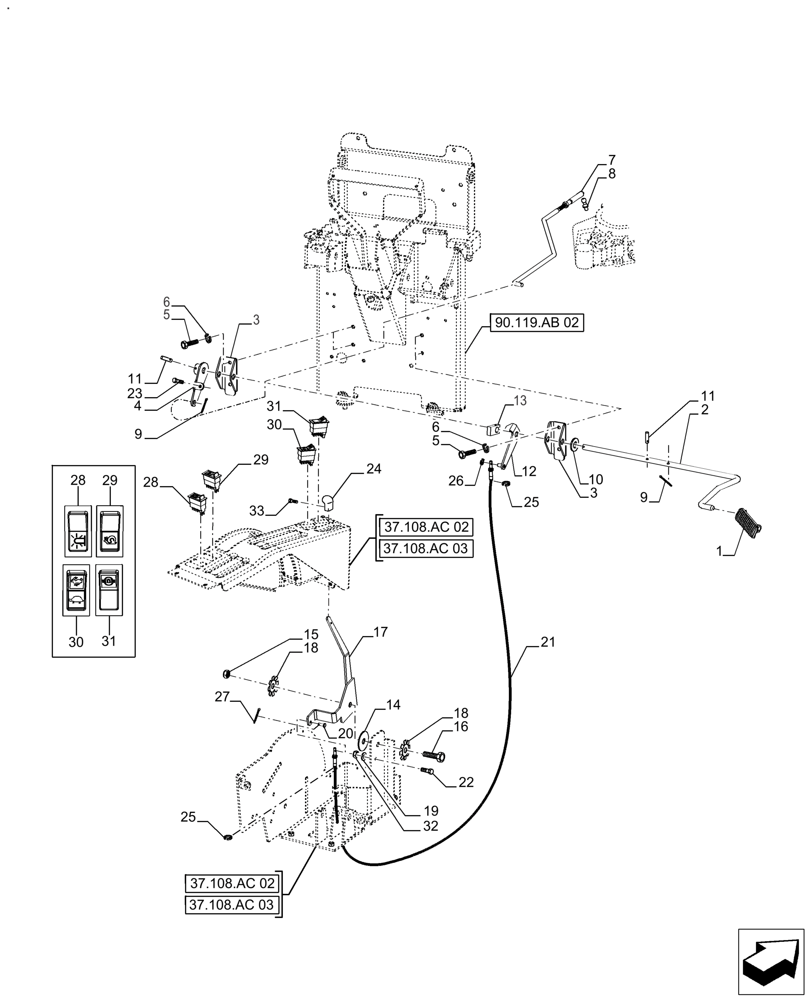

Запчасти Case IH FARMALL 110A (55.525.AM[02]) - THROTTLE CONTROL LINKAGE, ROPS (55) - ELECTRICAL SYSTEMS

1

84250071

PEDAL

Throttle Pedal Assy.

1шт.

2

82988407

ARM

Arm Assy. Throttle

1шт.

3

82988408

SUPPORT

Throttle Pedal

2шт.

4

82988410

LEVER

Cam Assy Throttle Pedal

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

81845769

LOCK WASHER,5/16"

4шт.

7

82988405

ROD

Rod Assy. Throttle

1шт.

8

82982970

SPECIAL BOLT

1шт.

9

85700711

COTTER PIN,3/32" x 1"

2шт.

10

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

11

83926136

SLOTTED PIN,5/32" x 1"

2шт.

12

82988412

CONTROL LEVER

Cam Assy. Hand Accelerator

1шт.

13

82988409

LEVER

Arm Assy. Acceleration

1шт.

14

83924272

FRICTION WASHER,14mm ID x 50mm OD x 3mm Thk

1шт.

15

16105014

LOCK NUT,M12 x 1.25

Insert Nylon

1шт.

16

86637971

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17

82989441

LEVER

Lever, Acceleration

1шт.

18

83902973

SPRING WASHER

2шт.

19

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

1шт.

20

412317

PIN

Pin

1шт.

21

82027257

CABLE,1774mm L

Handle Acceleration

1шт.

22

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

23

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

24

82034589

KNOB

Handle Acceleration

1шт.

25

86639142

SNAP RING,M8

Ext E Retaining

2шт.

26

11065374

SNAP RING,M5, Ext

1шт.

27

81813879

COTTER PIN,1/16" x 3/4"

1шт.

28

82007618

SWITCH ASSY

1шт.

29

83983778

CREEPER SWITCH

1шт.

30

83935175

RIDE CONTROL SWITCH

1шт.

31

5184399

DIFF LOCK SWITCH

, Start Year: 21-DEC-12

1шт.

32

83907174

NUT,M6, G8

1шт.

33

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

1шт.
