Запчасти Case IH FARMALL 110A (10.101.AA[02]) - CYLINDER HEAD 6 CYL. (10) - ENGINE

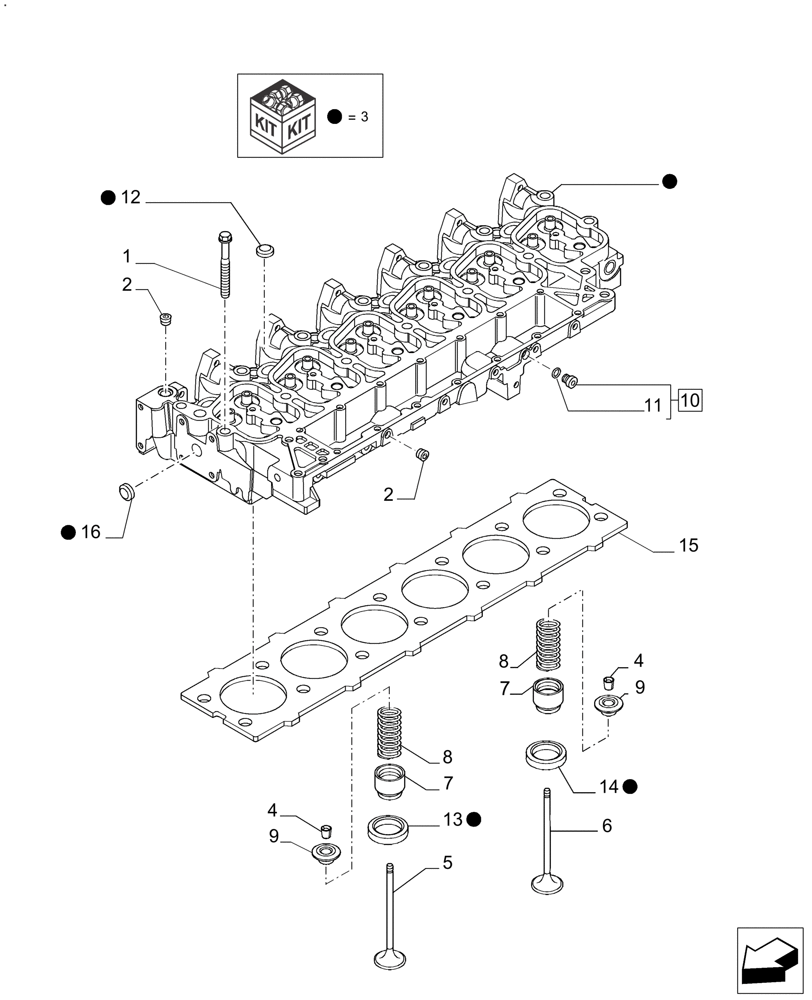

Схема запчастей Case IH FARMALL 110A - (10.101.AA[02]) - CYLINDER HEAD 6 CYL. (10) - ENGINE
11
12
7
13
3
3
10
9
5
8
3
6
3
7
14
9
2
3
15
16
3
2
3
1
4
4
8

Артикул

Название

Примечание

Количество

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

6шт.

1

4892859

BOLT,Flng, M12 x 1.75 x 143mm

14шт.

2

4895078

PIPE PLUG,1/2"-14

5шт.

3

4895765

CYLINDER HEAD

TS6.110, TS6.120, Incl 12 - 14, 16

1шт.

3

4895766

CYLINDER HEAD

TS6.125, TS6.140, Incl 12 - 14, 16

1шт.

4

4895183

COLLET

24шт.

5

4895188

STD EXHAUST VALVE

ENGINE

6шт.

6

4895187

STD INLET VALVE

ENGINE

6шт.

7

4895347

SEAL

12шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

12шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

12шт.

10

4899009

PLUG,M10 x1

Assy, Incl 11

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

Exhaust

6шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

Intake

6шт.

15

2830922

CYLINDER HEAD GASKET,1.4mm Thk

SP=1.25

1шт.

15

2830923

CYLINDER HEAD GASKET,1.15mm Thk

SP=1.15

1шт.

16

4895085

EXPANSION PLUG,25.74mm

OD

1шт.

Выбрано товаров: 19
