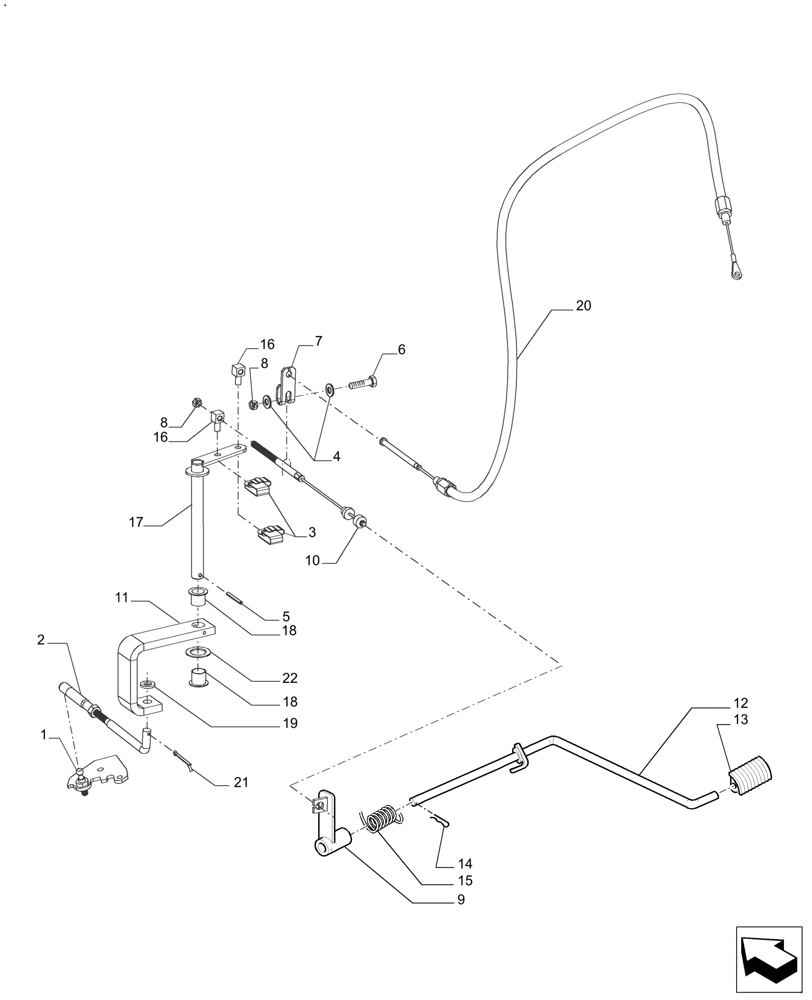

Запчасти Case IH FARMALL 110A (55.525.AM[01]) - THROTTLE CONTROL LINKAGE, CAB (55) - ELECTRICAL SYSTEMS

1

82982970

SPECIAL BOLT

Ball Throttle Control Rod

1шт.

2

73335895

ROD

Rod Assy. Throttle Control

1шт.

3

47440305

RETAINER

, Start Year: 16-AUG-13

2шт.

4

83926806

WASHER,1/4", SAE

2шт.

5

14162270

LOCK PIN,M3 x 28, Slotted

1шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

7

5110214

BRACKET

1шт.

8

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

Lock

2шт.

9

87612985

PEDAL

W/CAB

1шт.

10

87613005

CABLE,225mm L

W/CAB

1шт.

11

73335894

Lever Long

1шт.

12

87612976

PEDAL STEM

W/CAB

1шт.

13

84250071

PEDAL

1шт.

14

10733601

COTTER PIN,M3.2 x 22

1шт.

15

5097692

SPRING

1шт.

16

87378458

PIN,6mm OD x 21mm L

2шт.

17

73335891

SHAFT

Throttle Shaft Assy.

1шт.

18

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

19

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

1шт.

20

87626443

CABLE,1123mm L

1шт.

21

85700711

COTTER PIN,3/32" x 1"

1шт.

22

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.
