Запчасти Case IH FARMALL 110A (55.518.AI) - WINDSHIELD WIPER, FRONT & REAR (55) - ELECTRICAL SYSTEMS

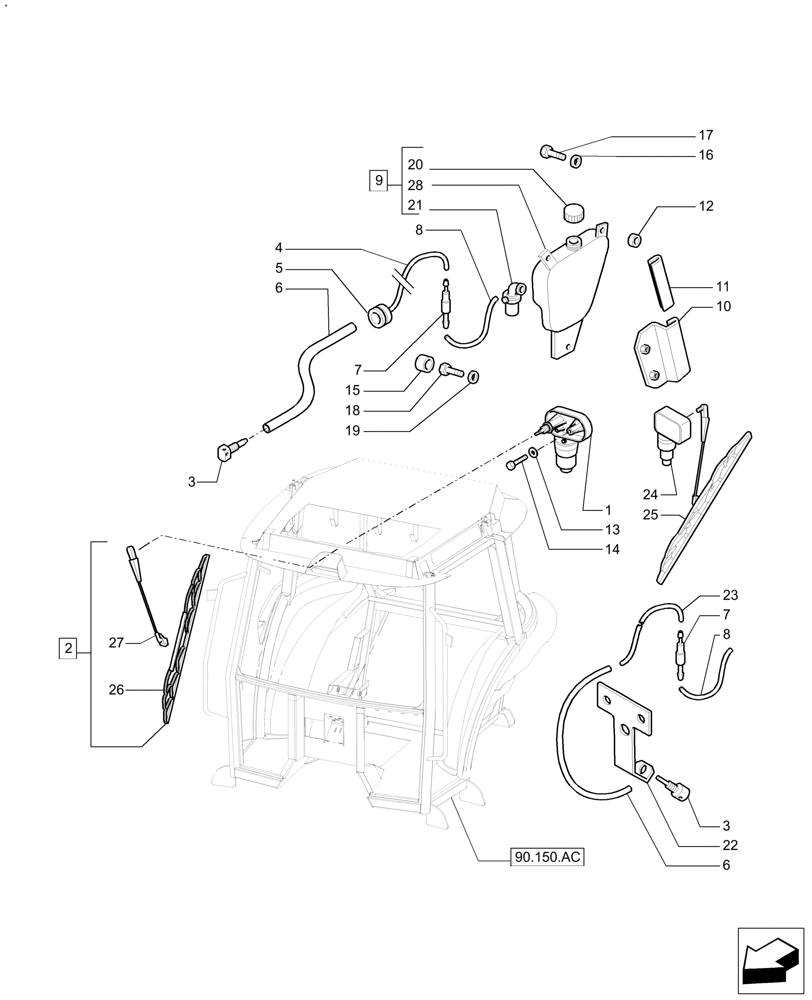

Схема запчастей Case IH FARMALL 110A - (55.518.AI) - WINDSHIELD WIPER, FRONT & REAR (55) - ELECTRICAL SYSTEMS
22
16
9
20
8
6
10
8
26
24
11
21
13
7
90.150.ac
3
7
15
12
14
28
4
6
18
23
19
3
17
25
5
27
2
1

Артикул

Название

Примечание

Количество

1

87474388

WIPER MOTOR

Front

1шт.

2

5092905

WIPER ARM

Front, Assy. Incl 26, 27

1шт.

3

5092907

NOZZLE

2шт.

4

5092908

TUBE

Front

1шт.

5

5092913

GROMMET

1шт.

6

5094134

HOSE,25mm ID x 165mm L

4шт.

7

5092910

FITTING

2шт.

8

5092909

HOSE,4mm ID x 200mm L

2шт.

9

84480060

RESERVOIR, WINDSHIEL

Incl 20, 21, 28

1шт.

10

5094175

SUPPORT

1шт.

11

5094138

RUBBER SEAL,171mm L

Front

1шт.

11

5094133

FLEXIBLE SHEATH

Rear

1шт.

12

5093041

RUBBER BUSHING,9mm ID x 20mm OD x 6.8mm L

2шт.

13

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

15

5089481

CAP,17mm OD

2шт.

16

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

18

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

19

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

20

87302624

CAP

1шт.

21

87309569

PUMP

2шт.

22

5094345

SUPPORT

Rear

1шт.

23

5093390

HOSE,4mm ID x 3320mm L

Rear

1шт.

24

5093388

WIPER MOTOR,12V

Rear

1шт.

25

5093389

KIT

Rear

1шт.

26

NSS

NOT SOLD SEPARAT

Wiper Blade, Incl in 2

1шт.

27

NSS

NOT SOLD SEPARAT

Wiper Arm, Incl in 2

1шт.

28

84469258

RESERVOIR

Wiper Tank (Double Outlet)

1шт.

Выбрано товаров: 29
