(55.405.AP) - STOP LIGHT, REAR, CAB - ONLY SOUTH AFRICA

Запчасти Case IH FARMALL 110A (55.405.AP) - STOP LIGHT, REAR, CAB - ONLY SOUTH AFRICA (55) - ELECTRICAL SYSTEMS

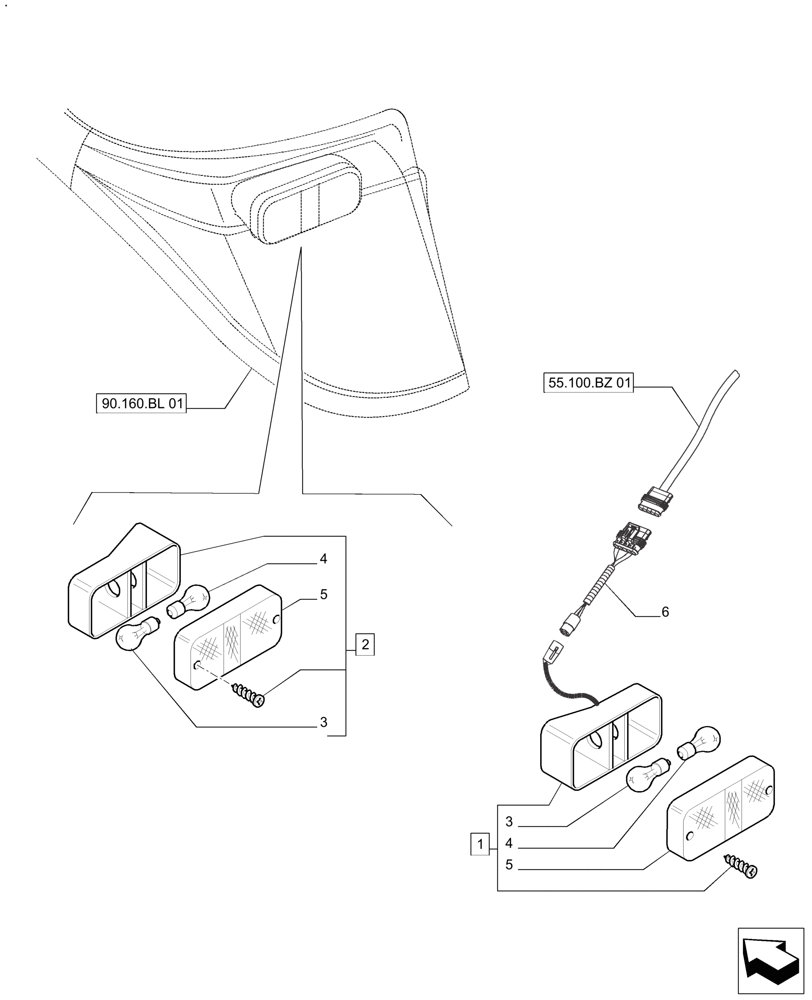

Схема запчастей Case IH FARMALL 110A - (55.405.AP) - STOP LIGHT, REAR, CAB - ONLY SOUTH AFRICA (55) - ELECTRICAL SYSTEMS
3
4
5
6
90.160.bl 01
2
1
4
5
3
55.100.bz 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091434

TAIL LAMP,12V, 21W, Amber/Red

RH, Incl 6-8, Start Year: 15-APR-13

1шт.

2

5091429

TAIL LAMP,12V, 21W, Amber/Red

LH, Incl 6-8, Start Year: 15-APR-13

1шт.

3

5080613

BULB,P21W, 12V, 21W

Incl in 1 & 2

2шт.

4

5080612

BULB,12V, 5/21W

Incl in 1 & 2

2шт.

5

5080614

LENS

Incl in 1 & 2

2шт.

6

47459928

WIRE HARNESS

Rear Lights Adapter RH & LH, Start Year: 15-APR-13

2шт.
