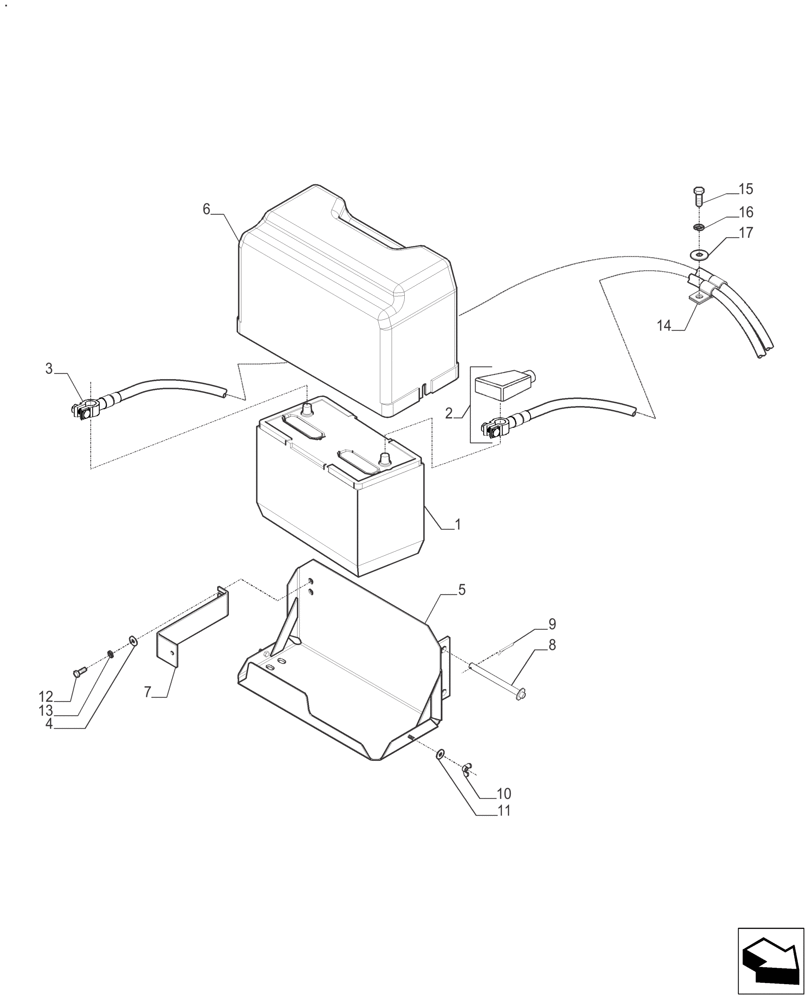

Запчасти Case IH FARMALL 110A (55.302.AG) - BATTERY (55) - ELECTRICAL SYSTEMS

1

84183281

WET BATTERY,Grp 31, 1000 CCA, 12V, 219.46mm H x 172.70mm W x 329.69mm L, Tpr Post

Assy. 12V 1000CCA, Power Frame 4/6 Cyl. (CAB/PLAT)

1шт.

2

82988677

CABLE

Positive, Battery to Solenoid

1шт.

3

82988678

NEG BATTERY CABLE

Battery to Ground (PLAT)

1шт.

4

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

(9 x 17 x 1.5 mm), Flat Stl.

2шт.

5

82988562

BATTERY TRAY

Battery Tray Assy.

1шт.

6

9575728

COVER

Battery

1шт.

7

82989251

BRACKET, SUPPORTING

1шт.

8

82988568

PIN

Battery Tray

2шт.

9

83415768

COTTER PIN,1/16" x 1"

2шт.

10

83916651

NUT,1/4"-28

2шт.

11

83916712

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

2шт.

12

82880843

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

13

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

14

83934650

CLIP

1шт.

15

83952638

SCREW,Hex, M10 x 25mm

1шт.

16

85700672

LOCK WASHER,M10

1шт.

17

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.
