(50.100.AP[03]) - AIR CONDITIONER - COMPONENTS

Запчасти Case IH FARMALL 110A (50.100.AP[03]) - AIR CONDITIONER - COMPONENTS (50) - CAB CLIMATE CONTROL

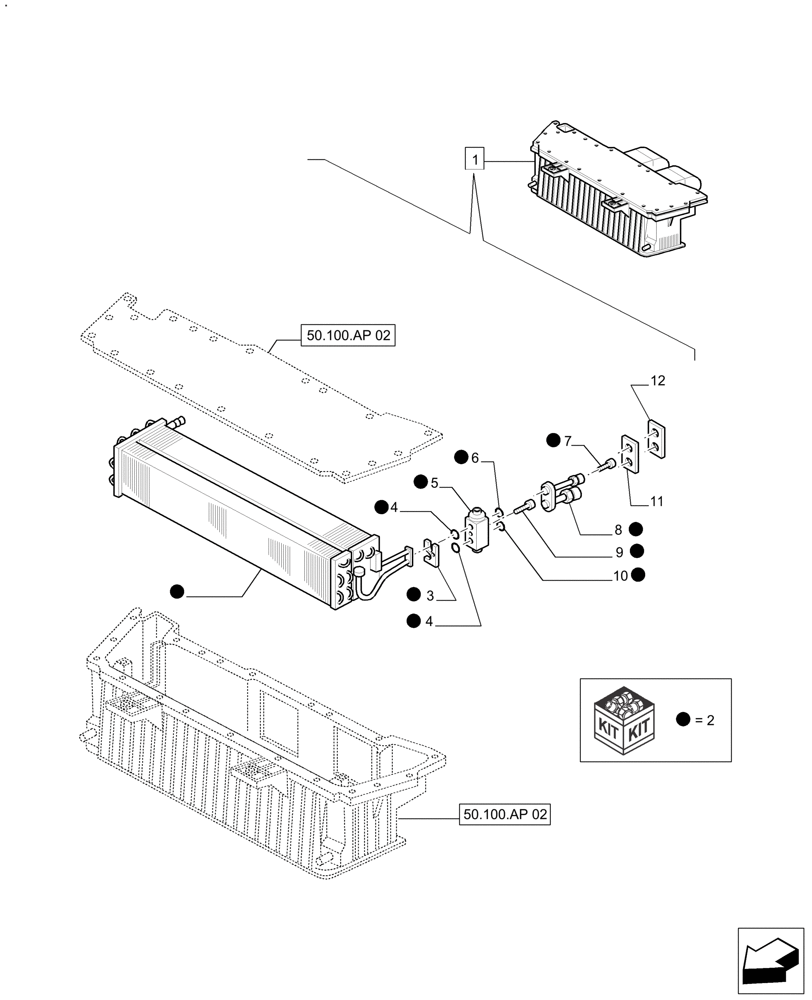

Схема запчастей Case IH FARMALL 110A - (50.100.AP[03]) - AIR CONDITIONER - COMPONENTS (50) - CAB CLIMATE CONTROL
2
2
2
2
2
2
3
2
10
5
4
2
9
50.100.ap 02
12
8
7
4
2
2
50.100.ap 02
6
11
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87701044

AIR CONDITIONER

Evaporator & Heater Assy

1шт.

2

82034855

EVAPORATOR

Incl 3 - 10

1шт.

3

81874723

PLATE

1шт.

4

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

5

82034858

VALVE

1шт.

6

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

7

81874722

HEX SOC SCREW,M6 x 15mm

1шт.

8

82009113

TUBE,60, 26 mm Length

Evaporator and Heat Exchanger

1шт.

9

81874721

HEX SOC SCREW,M5 x 39.5mm

2шт.

10

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x .070 Thk, Green

1шт.

11

82009242

GASKET

1шт.

12

81872757

SEAL

1шт.
