Запчасти Case IH FARMALL 110A (50.100.AP[01]) - AIR CONDITIONER, CAB (50) - CAB CLIMATE CONTROL

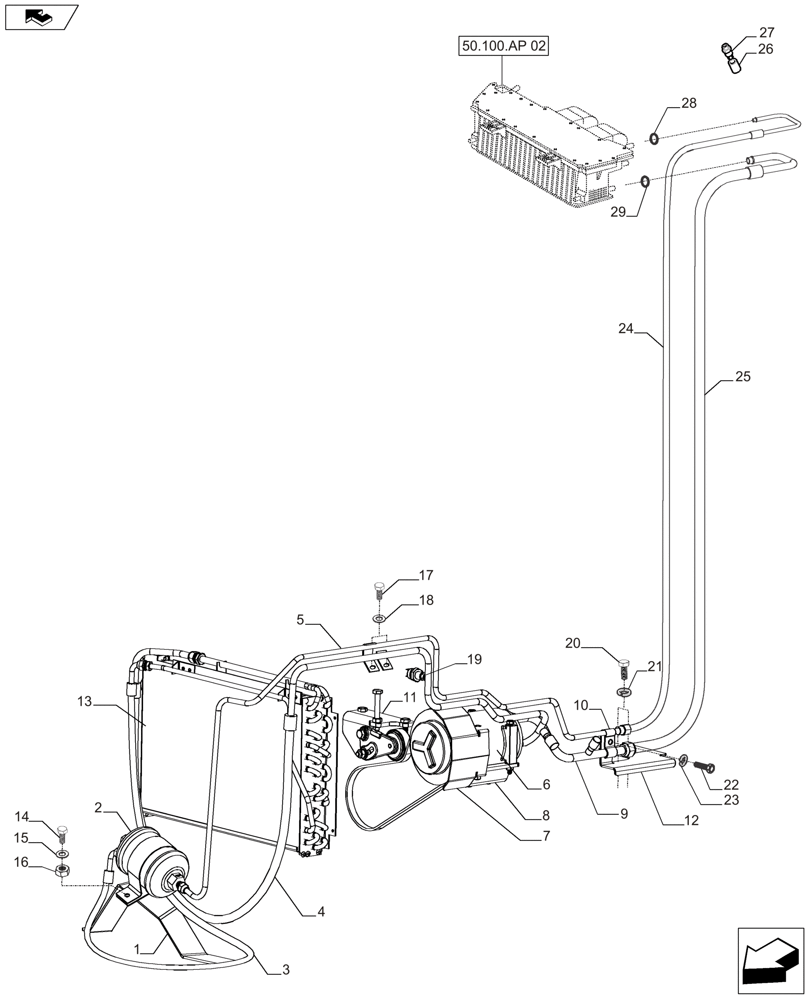

Схема запчастей Case IH FARMALL 110A - (50.100.AP[01]) - AIR CONDITIONER, CAB (50) - CAB CLIMATE CONTROL
27
1
16
14
24
3
10
8
12
11
7
21
17
6
26
23
05.100.03 01
19
20
2
4
9
15
18
29
25
13
5
28
22
50.100.ap 02

Артикул

Название

Примечание

Количество

1

73338086

SUPPORT

SUP ASSY DRYER 20° AC PTD 4/6 Cyl.

1шт.

2

295006A1

RECEIVER-DRYER

1шт.

3

73337710

A/C HOSE,7.47mm ID x 1150mm L

Hose Assy Cond-Dryer 4/6 Cyl.

1шт.

4

73337709

A/C HOSE

Hose Assy Tube Comp-Cond 4/6 Cyl.

1шт.

5

73338089

TUBE

Tube Assy.Dryer 4 Cyl.

1шт.

5

73338090

TUBE

Tube Assy.Dryer 6 Cyl.

1шт.

6

73337492

AIRCOND. COMPRESSOR

Compressor AC SANDENSD7H15

1шт.

7

73337502

SHIELD

Protection Pulley

1шт.

8

73337499

SUPPORT

Tube Assy Comp/evap 4 Cyl.

1шт.

9

73337705

TUBE

Tube Assy.Comp/Evap 4 Cyl.

1шт.

9

73337707

TUBE

Tube Assy.Comp/Evap 6 Cyl.

1шт.

10

73337725

PIPE CLAMP

Clamp A/C Pipes

1шт.

11

73337488

SUPPORT

Supp Assy Takeup

1шт.

12

73337722

SUPPORT

Supp Assy Tubes Comp

1шт.

13

84156148

CONDENSER

4/6 Cyl.

1шт.

14

12103

PROFILE

1шт.

15

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

16

43362

NUT,M8 x 1.25, Cl 10

1шт.

17

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4/6 Cyl.

2шт.

18

83926806

WASHER,1/4", SAE

4/6 Cyl.

2шт.

19

83977007

SWITCH ASSY

4/6 Cyl.

1шт.

20

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4/6 Cyl.

2шт.

21

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4/6 Cyl.

2шт.

22

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4/6 Cyl.

1шт.

23

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4/6 Cyl.

1шт.

24

73337933

A/C HOSE

Tube & Hose Evaporator to Dryer

1шт.

25

73337932

A/C HOSE

Tube & Hose Evaporator to Compressor

1шт.

26

81871638

FOAM INSULATION

1шт.

27

87356362

SWITCH ASSY

1шт.

28

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

29

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

Выбрано товаров: 31
