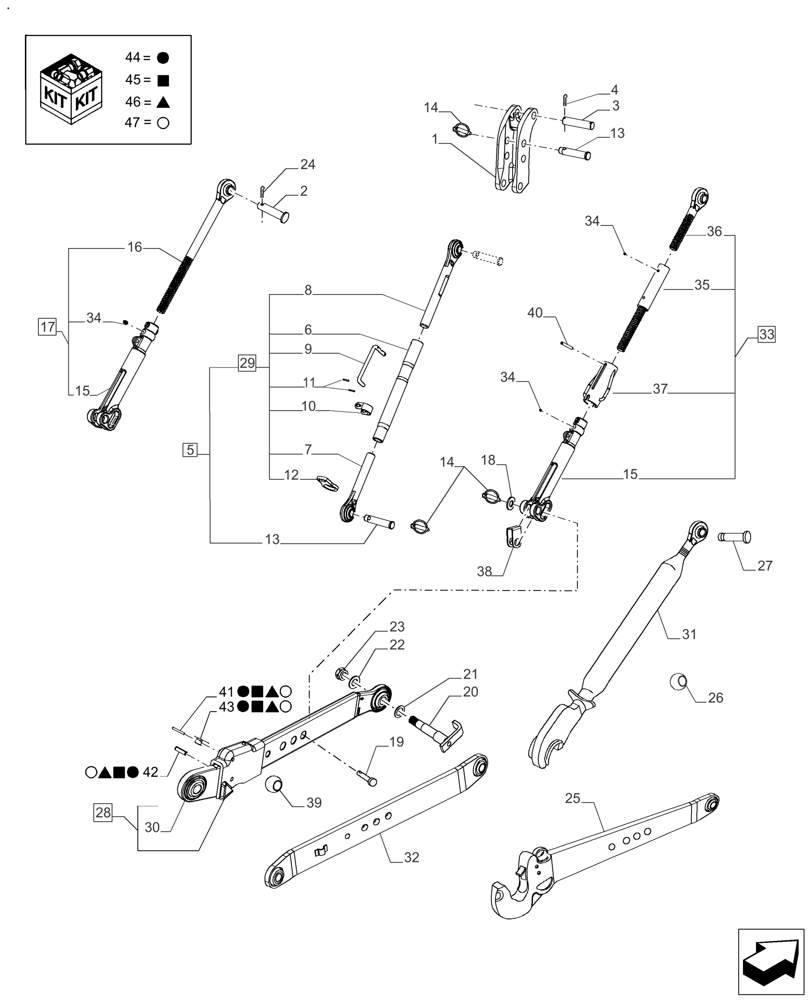

Запчасти Case IH FARMALL 110A (37.120.AX) - HYDRAULIC LIFT LINKAGE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

83991091

ROCKER

Rocker Control

1шт.

2

81873405

PIN,28.87mm OD x 120.93mm L

Hydraulic Lift Link Lower Fork

2шт.

3

82980530

PIN

Pin Hydraulic Lift Control Plng.

2шт.

4

81813916

COTTER PIN,1/8" x 1 1/2"

4шт.

5

82988763

LINK ARM ASSY KIT

Upper, Category II, With/Treatment, Incl 13, 29

1шт.

6

NSS

NOT SOLD SEPARAT

Housing, Upper Lift Link, Incl in 29

1шт.

7

NSS

NOT SOLD SEPARAT

Socket Front W/Treatment, Incl in 29

1шт.

8

NSS

NOT SOLD SEPARAT

Socket Rear W/Treatment, Category II, Incl in 29

1шт.

9

NSS

NOT SOLD SEPARAT

Latch Upper Lift Link, Incl in 29

1шт.

10

NSS

NOT SOLD SEPARAT

Support Clamp Upper Lift Link, Incl in 29

1шт.

11

NSS

NOT SOLD SEPARAT

Pin 3/16x1, Slotted, Incl in 29

2шт.

12

NSS

NOT SOLD SEPARAT

Retainer, Incl in 29

1шт.

13

82980529

PIN,25.34mm OD x 125.96mm L

Hydraulic Lift

2шт.

14

81810390

LINCH PIN,11.18mm OD

Pin & Ring Assy.

4шт.

15

73337403

LINK

Lower Fork Rod Link

2шт.

16

82980551

LEVER

Upper Socket Telescopic Assy. L.H.

1шт.

17

73337429

ROD

Rod Link Fix Assy. Telescopic L. H., Incl 15, 16, 34

1шт.

18

82895139

WASHER,1.01" ID x 1.81" OD x 0.12" Thk

Flat Stl.

2шт.

19

83904859

PIN,25.4mm OD x 128.7mm L

Pin Hydraulic Lift Link Lower Fork

2шт.

20

82989390

PIN

Shaft Assy., Lower Arm Hydraulic Lift

2шт.

21

81802631

THRUST WASHER,29.02mm ID x 44.4mm OD x 2.39mm Thk

Stl.

2шт.

22

81873789

WASHER,1.01" ID x 1.9" OD x 0.14" Thk

(Spacer)

2шт.

23

83958917

NUT,1"-12

2шт.

24

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

25

73337387

LIFT ARM

LO LINK HOOK RH CL2

1шт.

25

73337390

LIFT ARM

LO LINK HOOK LH CL2, Not Shown

1шт.

26

73337426

BALL,28mm ID x 50mm OD

UPPERLINK BALL

1шт.

27

82980529

PIN,25.34mm OD x 125.96mm L

2шт.

28

73335759

LIFT LINK

LIFT ARM Flex RH 4 Cyl. Incl 30

1шт.

28

73337077

ARM

LIFT ARM Flex RH 6 Cyl. Incl 30, Not Shown

1шт.

28

73335760

LIFT LINK

LIFT ARM Flex LH 4 Cyl. Incl 30, Not Shown

1шт.

28

73337079

ARM

LIFT ARM Flex LH 6 Cyl. Incl 30, Not Shown

1шт.

29

NSS

NOT SOLD SEPARAT

Link Assy - Upper Lift, Incl 6 - 12, Incl in 5

1шт.

30

NSS

NOT SOLD SEPARAT

LIFT LINK END ASSY, Incl in 28

1шт.

31

73337085

TOP LINK

TOP LINK QUICK

1шт.

32

82989778

LIFT ARM

Arm Lift, Rigid, RH/LH

2шт.

33

73337401

ADJUSTMENT ROD

Rod Link Adjust Assy., Telescopic R.H. Incl 15, 35 - 37, 40

1шт.

34

83416242

LUBE NIPPLE,Straight, 1/8"-27 x 0.66"

Straight, 90�

3шт.

35

73337407

PIPE

Pipe Assy. Adjusted

1шт.

36

82980538

SOCKET

Socket, Assy. Hydraulic Lift Link

1шт.

37

73337404

ADJUSTER

Nut Assy Adjuster

1шт.

38

73337477

SPACER

Spacer Telescopic Arm (w/Fix & Flex)

1шт.

39

73337382

BALL,28.83mm ID x 55.88mm OD

2шт.

40

73337406

PIN

PIN ROLL 3/8 X 2.500 CLDP MBK

1шт.

41

82932450

ROLL PIN

1/4 X 1.62 COILED SPRING

1шт.

42

82009421

COILED PIN,13.77mm OD x 51.18mm L

1шт.

43

83936684

PIN,12.7mm OD x 50.8mm L

1шт.

Incl in 47960063

1шт.

43

83957389

PIN

-LOWER LIFT LINK LOCK-L.H.

1шт.

Incl in 47960048

1шт.

43

83998760

PIN

-LWR LFT LNK LK RH

1шт.

Incl in 47959914

1шт.

43

83998762

SPLIT PIN/SAFETY PIN

-LOWER LIFT LINK LOCK LEFT HAND

1шт.

Incl in 47960040

1шт.

44

47960063

KIT

Kit RH, Pins Flexible Low Links LD, Incl 41 - 43

1шт.

45

47960048

KIT

Kit LH, Pins Flexible Low Links LD, Incl 41 - 43

1шт.

46

47959914

KIT

Kit RH, Pins Flexible Low Links HD, Incl 41 - 43

1шт.

47

47960040

KIT

Kit LH, Pins Flexible Low Links HD, Incl 41 - 43

1шт.
