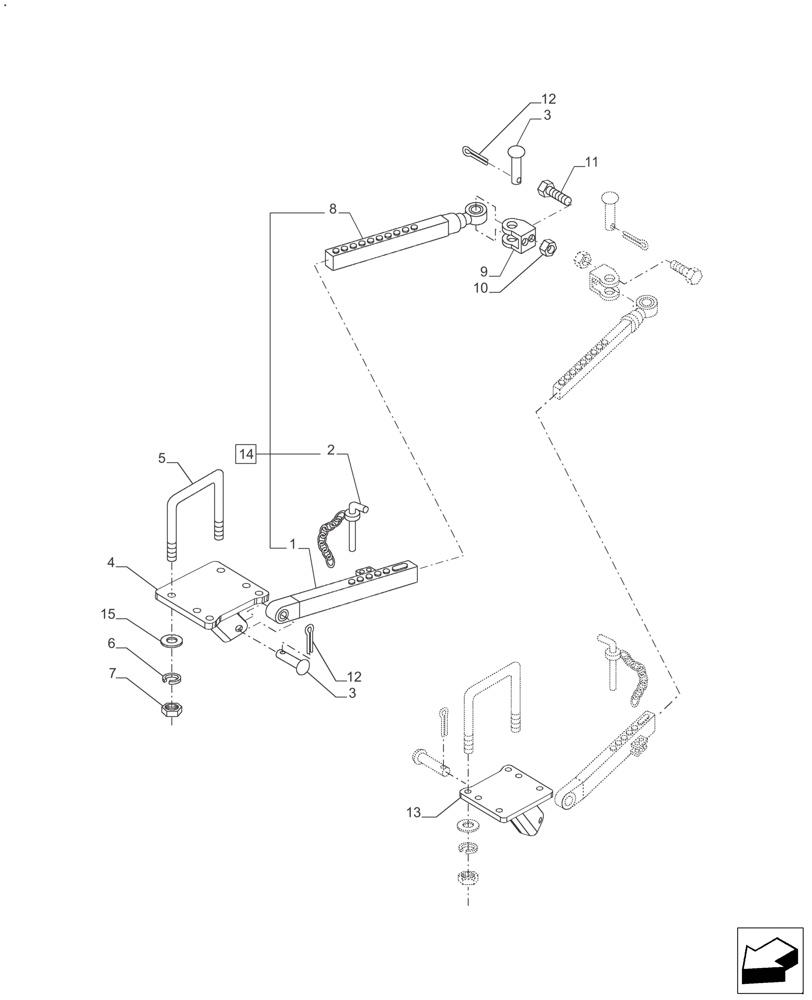

Запчасти Case IH FARMALL 110A (37.120.AF[01]) - LOWER LINK - STABILIZER SECTION (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

NSS

NOT SOLD SEPARAT

Arm Stabilizer Assy, Incl in 14

2шт.

2

82983551

CHAIN,292mm L

Assy, Incl in 14

2шт.

3

81864578

PIN,35.5mm OD x 97mm L

Pin Stabilizer Arms

4шт.

4

73337151

BRACKET

BRACKET ASSY-LO LIFT RH, USED FOR ROPS & CAB

1шт.

5

83919385

BOLT,U, 5/8" - 18 x 8"

2шт.

ONLY WITH CAB|3|SOLO CON CABINA|8|CABINADO

1шт.

6

86729275

LOCK WASHER,5/8 0.634 CST ZND

(CAB) 4/6 Cyl.

4шт.

7

408

NUT,5/8" - 18, Gr 5

(CAB) 4/6 Cyl.

4шт.

8

NSS

NOT SOLD SEPARAT

Lift Link End Assy, Incl in 14

2шт.

9

82966170

SUPPORT

Pivot, Bracket Stabilizer Arms

2шт.

10

280375

NUT,3/4"-10, GC

2шт.

11

83956435

BOLT,Hex, 3/4" - 10 x 2 1/2"

2шт.

12

81815888

COTTER PIN,5/32" x 1 1/4"

4шт.

13

73337147

BRACKET

BRACKET ASSY-LO LIFT LH, USED FOR ROPS & CAB

1шт.

14

82983543

STABILIZER

Arm Assy, Incl 1, 2, 8

1шт.

15

82894584

WASHER

Flat Washer 5/8 17 x 34 x 2.6, Start Year: 10-APR-13

4шт.

ONLY WITH CAB

1шт.
