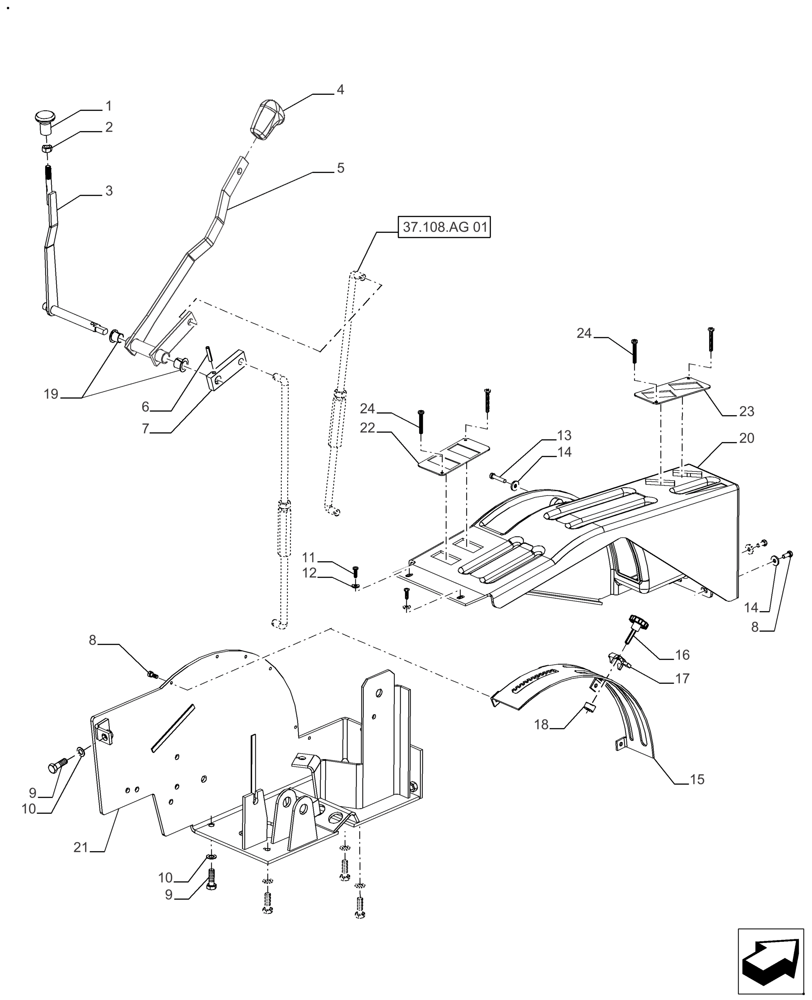

Запчасти Case IH FARMALL 110A (37.108.AC[02]) - VAR - 333107, 334107, 336107 - LIFT CONTROL LEVER- PLATFORM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

81863165

KNOB

1шт.

2

43362

NUT,M8 x 1.25, Cl 10

1шт.

3

81868792

LEVER

1шт.

4

87587989

KNOB

1шт.

5

73335025

LEVER

Lever Assy Hydraulic Lift Control

1шт.

6

130045

PIN,5mm OD x 26mm L, Slotted

1шт.

7

81870168

LEVER

1шт.

8

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

6шт.

9

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

10

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

5шт.

11

83932727

SELF-TAP SCREW,#8-18 x .62"

2шт.

12

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

2шт.

13

10389911

SCREW,Sl Pan Hd, M5 x 25mm, Cl 5.8

1шт.

14

81838650

WASHER,5.3mm ID x 15mm OD x 2mm Thk

3шт.

15

82007410

SECTOR

1шт.

16

81863160

KNOB

1шт.

17

73336191

LEVER

Stop Hydr Lift Ctrl Lever

1шт.

18

83984930

STOP

1шт.

19

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

Brake Control Lever

2шт.

20

73338334

HOUSING

Hydraulic Control, Console Panel

1шт.

21

73337125

SUPPORT

Assy. Hydraulic Control

1шт.

22

73338332

SUPPORT

RR Switch

1шт.

23

73338330

SUPPORT

Switch

1шт.

24

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

Handbrake Switch

4шт.
