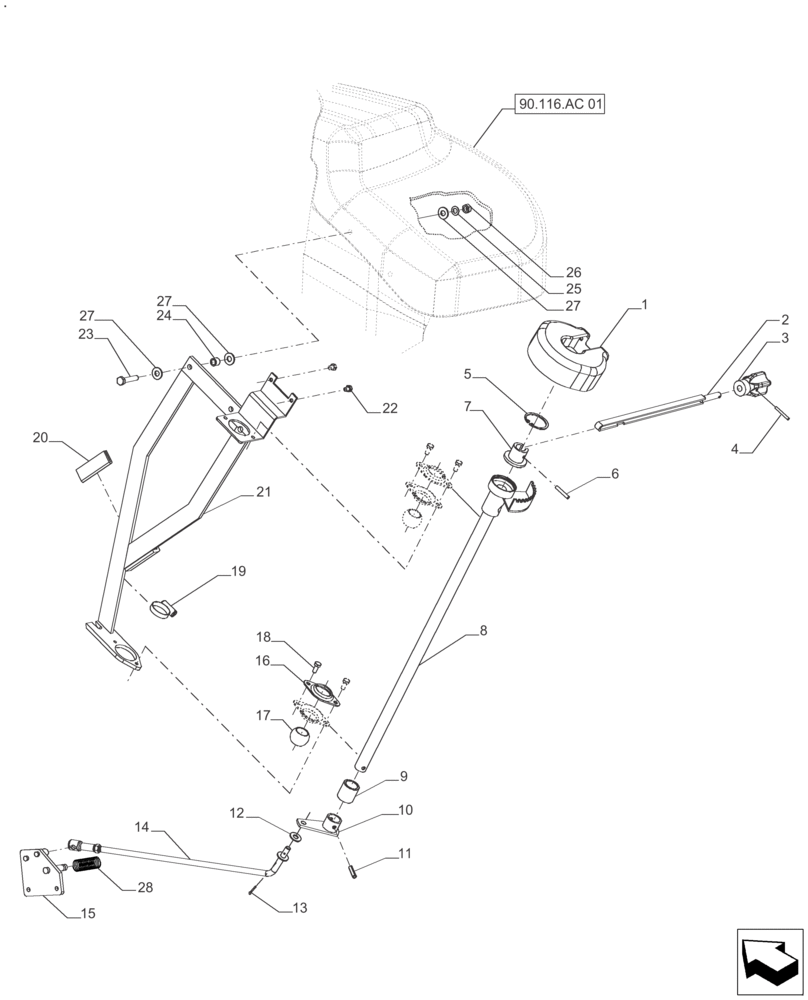

Запчасти Case IH FARMALL 110A (37.108.AC[01]) - VAR 330845 - LIFT CONTROL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5095271

GUARD

1шт.

2

5171022

LEVER

1шт.

3

5144119

KNOB

1шт.

4

14164470

LOCK PIN,M4 x 32, Slotted

1шт.

5

11059974

SNAP RING,M40, Int

1шт.

6

14601370

LOCK PIN,M5 x 30, Slotted

1шт.

7

5171002

HUB

1шт.

8

5170979

CONTROL SHAFT

1шт.

9

73338644

BUSHING

1шт.

10

82031536

LEVER

1шт.

11

13910170

ROLL PIN,M6 x 26, Coiled

1шт.

12

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

13

81813880

COTTER PIN,3/32" x 3/4"

1шт.

14

73338691

CONNECTING ROD

1шт.

15

47843985

CAM

1шт.

16

5110722

CUP

4шт.

17

5127536

BUSHING,20.5mm ID x 32mm OD

2шт.

18

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

19

82878201

CLAMP,22 - 32

1шт.

20

5095275

HL Ext. Cont. Fender Clamp Rubber

1шт.

21

73337434

SUPPORT

1шт.

22

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

23

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

, Years: -22-MAR-13

2шт.

23

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

, Start Year: 22-MAR-13

2шт.

24

87026609

SPACER,8.48mm ID x 12.7mm OD x 9.53mm L

2шт.

25

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

, Years: -22-MAR-13

2шт.

25

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

, Start Year: 22-MAR-13

2шт.

26

43362

NUT,M8 x 1.25, Cl 10

, Years: -22-MAR-13

2шт.

26

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

, Start Year: 22-MAR-13

2шт.

27

83926806

WASHER,1/4", SAE

, Start Year: 22-MAR-13

6шт.

28

83949283

SPRING

HYD LIFT CONTR LEVER

1шт.
