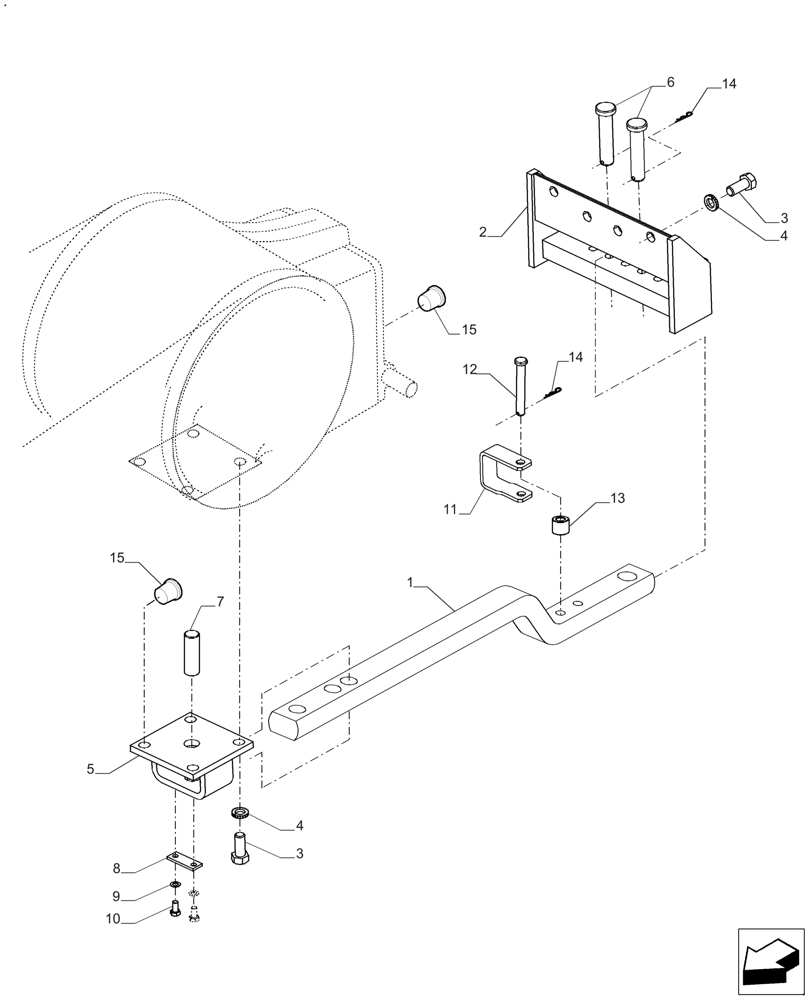

Запчасти Case IH FARMALL 110A (37.100.AA[02]) - SWINGING DRAWBAR - LESS CLEVIS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

73338216

SWINGING DRAWBAR

4 Cyl., Not Shown, Years: -28-FEB-13

1шт.

1

47582007

DRAWBAR

4 Cyl., Start Year: 25-SEP-13

1шт.

1

73338245

SWINGING DRAWBAR

6 Cyl., Not Shown, Years: -28-FEB-13

1шт.

1

47582005

DRAWBAR

6 Cyl. Not Shown, Start Year: 25-SEP-13

1шт.

2

73338370

DRAWBAR SUPPORT

Rear Assy. 4 Cyl.

1шт.

2

73338379

DRAWBAR SUPPORT

Rear Assy. 6 Cyl., Not Shown

1шт.

3

81821285

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

8шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.

5

73338375

DRAWBAR SUPPORT

Front Assy. 4 Cyl.

1шт.

5

73338383

DRAWBAR SUPPORT

Front Assy. 6 Cyl., Not Shown

1шт.

6

86632569

HEADED PIN,1" x 4 1/2", G5

2шт.

7

73337283

PIN

Swining Drawbar

1шт.

8

87363846

STEEL PLATE

1шт.

9

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

73335028

CHAIN

Chain Support Drawbar 4 Cyl.

1шт.

11

73337272

SUPPORT

Chain Drawbar 6 Cyl., Not Shown

1шт.

12

82983747

PIN,15.88mm OD x 93.7mm L

Chain Support 4 Cyl.

1шт.

12

412069

CLEVIS PIN,20mm OD x 110mm L

6 Cyl., Not Shown

1шт.

13

82984960

SPACER

4 Cyl.

1шт.

13

73337275

SPACER

Spacer 6 Cyl., Not Shown

1шт.

14

83917618

COTTER PIN,1/8" x 2 5/16"

1шт.

15

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

L/Drawbar

8шт.
