Запчасти Case IH FARMALL 110A (35.220.AE) - HYDRAULIC PUMP - MOUNTING (35) - HYDRAULIC SYSTEMS

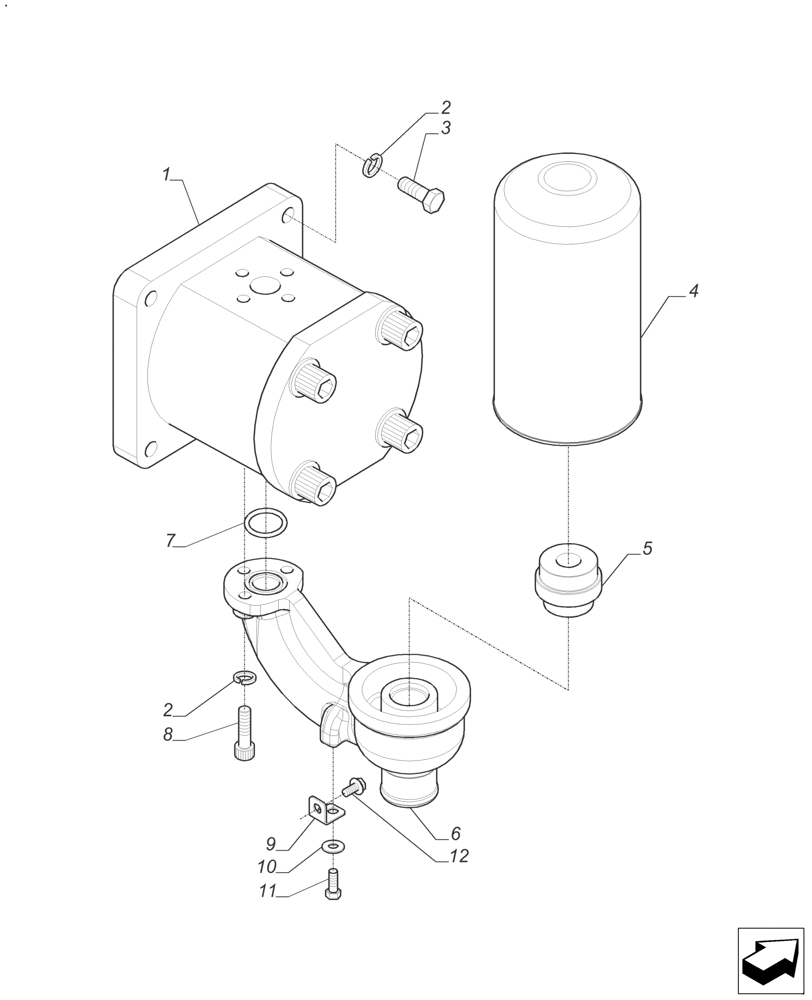

Схема запчастей Case IH FARMALL 110A - (35.220.AE) - HYDRAULIC PUMP - MOUNTING (35) - HYDRAULIC SYSTEMS
12
8
9
7
10
6
1
4
2
5
11
3
2

Артикул

Название

Примечание

Количество

1

73335602

HYDRAULIC PUMP,15.91 CC

1шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

7шт.

3

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

4

84518613

HYDRAULIC OIL FILTER

, Start Year: 18-JAN-13

1шт.

5

5085665

ADAPTER,M24 x 1.5 x 1-1/8" - 16

1шт.

6

82989909

SUPPORT

Support, Filter

1шт.

7

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

8

14306574

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

9

73335063

SUPPORT

Support Base Filter

1шт.

10

83926806

WASHER,1/4", SAE

1шт.

11

81821506

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Hex, 1/4-28 x 5/8, G5

1шт.

12

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

Выбрано товаров: 12
