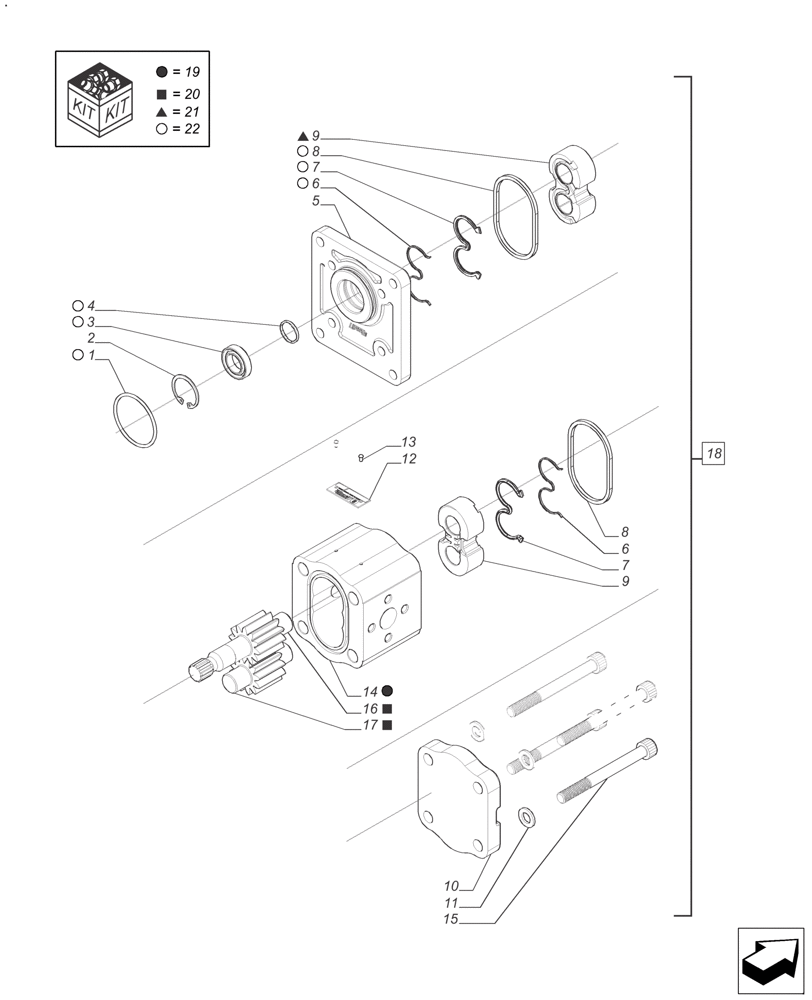

Запчасти Case IH FARMALL 110A (35.220.AA) - AUXILIARY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

O'Ring, 2.62 xØ45.69 xØ50.93, Incl in 18

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Retaining, Ø30x1.2, Incl in 18

1шт.

3

NSS

NOT SOLD SEPARAT

Retain, Seal, Ø17xØ30x7 LR, Incl in 18

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Guide, Incl in 18

1шт.

5

NSS

NOT SOLD SEPARAT

Base Cover, Incl in 18

1шт.

6

NSS

NOT SOLD SEPARAT

Joint Back, Compensation, Incl in 18

2шт.

7

NSS

NOT SOLD SEPARAT

Joint, Compensation, Incl in 18

2шт.

8

NSS

NOT SOLD SEPARAT

Square Ring, 3.15xØ63xØ70, Incl in 18

2шт.

9

NSS

NOT SOLD SEPARAT

Double Bearing, Incl in 18

2шт.

10

NSS

NOT SOLD SEPARAT

Cover, Incl in 18

1шт.

11

NSS

NOT SOLD SEPARAT

Flat Washer, Ø10xØ18x2, Incl in 18

4шт.

12

NSS

NOT SOLD SEPARAT

Identification Plate, Incl in 18

1шт.

13

NSS

NOT SOLD SEPARAT

Rivet U, Ø2.5x4.5, Incl in 18

2шт.

14

NSS

NOT SOLD SEPARAT

Main Body, Incl in 18

1шт.

15

NSS

NOT SOLD SEPARAT

Allen Bolt, M10x1.5x95 (12.9), Incl in 18

4шт.

16

NSS

NOT SOLD SEPARAT

Driving Gear, Incl in 18

1шт.

17

NSS

NOT SOLD SEPARAT

Driven Gear, Incl in 18

1шт.

18

73335602

HYDRAULIC PUMP,15.91 CC

Hydraulic Pump, Incl 1 - 17

1шт.

19

73335518

BODY

Spare Parts Kit, Incl 14

1шт.

20

73335517

HYD PUMP REPAIR KIT

Spare Parts Kit, Incl 16, 17

1шт.

21

73335516

HYD PUMP REPAIR KIT

Spare Parts Kit, Incl 9

1шт.

22

73335515

GASKET KIT

Spare Parts Kit, Incl 1, 3, 4, 6 - 8

1шт.
