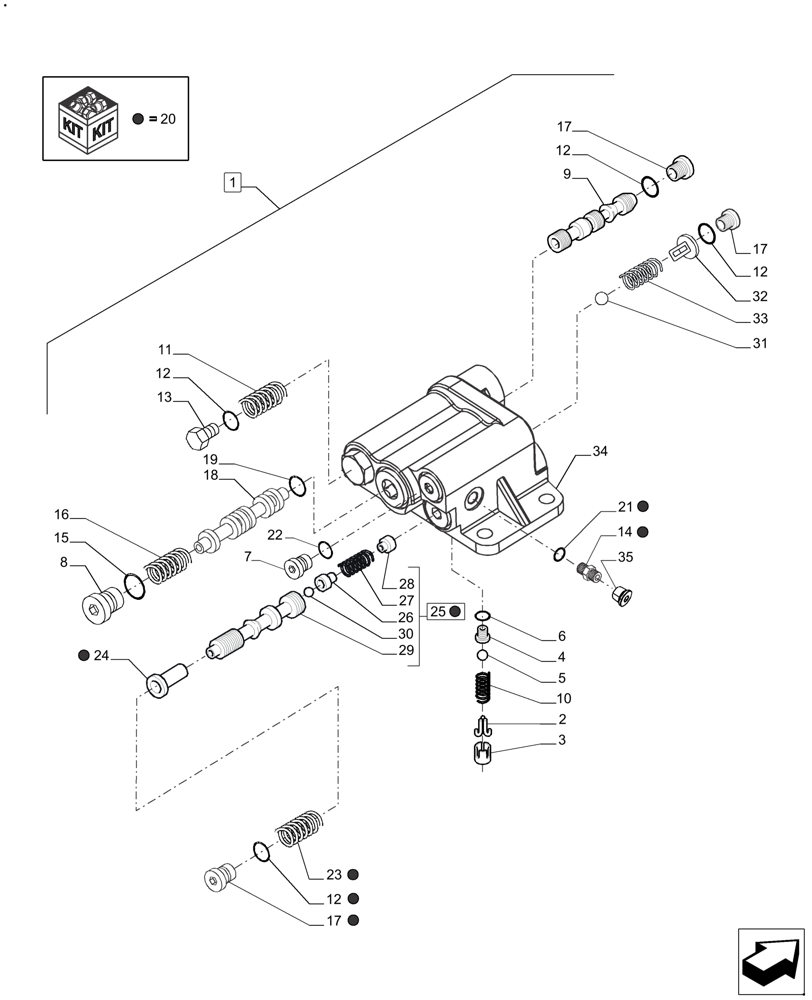

Запчасти Case IH FARMALL 110A (35.204.BP[01]) - HYDRAULIC LIFT UNLOAD VALVE (PRIORITY) ASSEMBLY (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
81871206
HYDRAULIC VALVE
Assy. WITH closed center remote valve, Incl 2 - 19, 21, 22 - 25, 31 - 35
1шт.
Use with PN 82988268 and PN 82988269
1шт.
1
81871195
HYDRAULIC VALVE
Assy. LESS closed center remote valve, Incl 2 - 22, 26 - 30, 34, 35
1шт.
Use with PN 82988268 and PN 82988269
1шт.
PN 83925042 not included into the PN 81871206
1шт.
2
83991170
CAGE
Cage
1шт.
3
83991169
SPACER
1шт.
4
83948377
SEAT/SLOT
Seat
1шт.
5
81869542
BALL
1шт.
6
81844851
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
90 Duro
1шт.
7
81819922
HEX SOCKET PLUG,3/4"-16
Assy
1шт.
8
83925030
PLUG,1 1/16"-12 SAE
1шт.
9
83925033
HYDRAULIC VALVE
1шт.
10
83925035
SPRING
Spring
1шт.
11
83925034
SPRING
Spring
1шт.
12
81827365
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
4шт.
13
82967015
PLUG
1шт.
14
83991167
PLUG
1шт.
Use with PN 81871206
1шт.
14
83925042
PLUG
Connector 7/16 - 20, Incl in 20
1шт.
15
81826567
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
16
83925031
SPRING
1шт.
17
81819963
HEX SOCKET PLUG,7/8"-14
3шт.
Use with PN 81871195
1шт.
17
83931689
PLUG,7/8" - 14
1шт.
Only 1 qty Incl in 20
1шт.
18
83925032
HYDRAULIC VALVE
Lift Unload
1шт.
19
83944792
SEAL,Locking, 10.52mm ID x 14.32mm OD x 3.43mm Thk
1шт.
20
82982976
CONVERSION KIT
VALVE Delux Incl 12, 14, 17, 21, 23 - 25
1шт.
21
81827528
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
22
81832258
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
23
83925040
SPRING
Spring
1шт.
Use with PN 82988268 and PN 82988269
1шт.
24
83972127
FILTER
Filter
1шт.
Use with PN 81871206
1шт.
25
83952853
SPOOL
Assy, Incl 26 - 30
1шт.
Use with PN 81871206
1шт.
26
83926339
SEAT/SLOT
Seat/Slot, Incl in 25
1шт.
27
83926350
SPRING
Spring, Incl in 25
1шт.
28
83926351
PLUG
Plug, Incl in 25
1шт.
29
82967019
SPOOL
Spool, Incl in 25
1шт.
30
82895236
BALL
Ball, Incl in 25
1шт.
31
81820737
BALL,9/16"
1шт.
Use with PN 81871206
1шт.
32
83953244
STOP
Spring Stop
1шт.
Use with PN 81871206
1шт.
33
83946314
SPRING
Spring
1шт.
Use with PN 81871206
1шт.
34
82856301
HOUSING
1шт.
35
83925041
PLUG
-H/LFT VLV BLOCK
1шт.
Use with PN 81871195
1шт.
Выбрано товаров: 51
