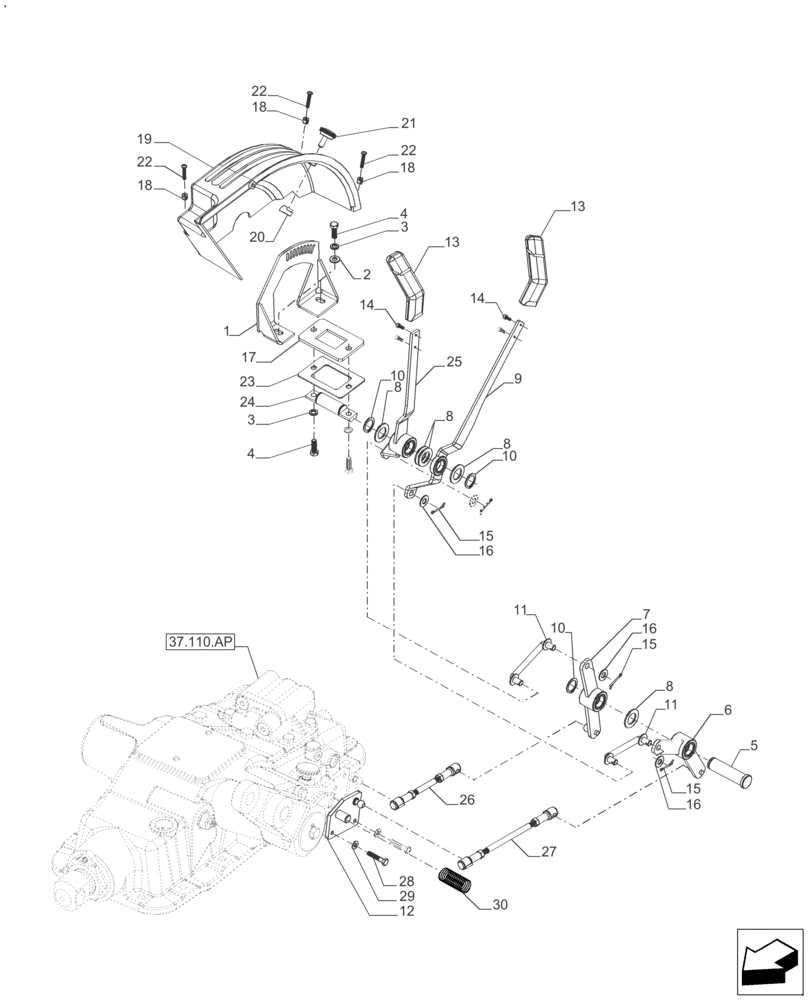

Запчасти Case IH FARMALL 110A (35.204.BL[10]) - LIFT CONTROL - CAB (35) - HYDRAULIC SYSTEMS

1

73336229

SUPPORT

Draft Control Lever

1шт.

2

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

3

81845769

LOCK WASHER,5/16"

4шт.

4

82880843

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

73335802

PIN

Pin Lift Lever

1шт.

6

73335809

LEVER

Cam Lift Lever Assy

1шт.

7

73336237

CAM

Lift Lever Assy

1шт.

8

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

5шт.

9

73338321

LEVER

Hydraulic Lift Assy

1шт.

10

11066976

SNAP RING,M21, Ext

3шт.

11

73335807

ROD

Hydraulic Lift Lever Assy

2шт.

12

47829010

CAM

Cam Hydraulic Lift Assy

1шт.

13

5126318

KNOB,Black

Sensibility

2шт.

14

14302928

BOLT,M4 x 0.7 x 10mm, Cl 8.8

Hydraulic Lift

4шт.

15

85700711

COTTER PIN,3/32" x 1"

4шт.

16

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

17

73336265

SEAL

Seal Levers

1шт.

18

14115780

BLOCK

3шт.

19

5097703

SELECTOR CASE

1шт.

20

47133761

STOP

1шт.

21

47133460

KNOB

1шт.

22

15959504

SELF-TAP SCREW,Pan Hd, M5 x 30

3шт.

23

73336263

FLANGE

Levers

1шт.

24

5133375

PIN,20mm OD x 100mm L

1шт.

25

73336231

LEVER

Assy Draft Control

1шт.

26

73338017

CONNECTING ROD

Rod Assy Connecting

1шт.

27

73338015

CONNECTING ROD

Rod Assy Connecting

1шт.

28

81821509

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

29

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

30

83949283

SPRING

HYD LIFT CONTR LEVER

1шт.
