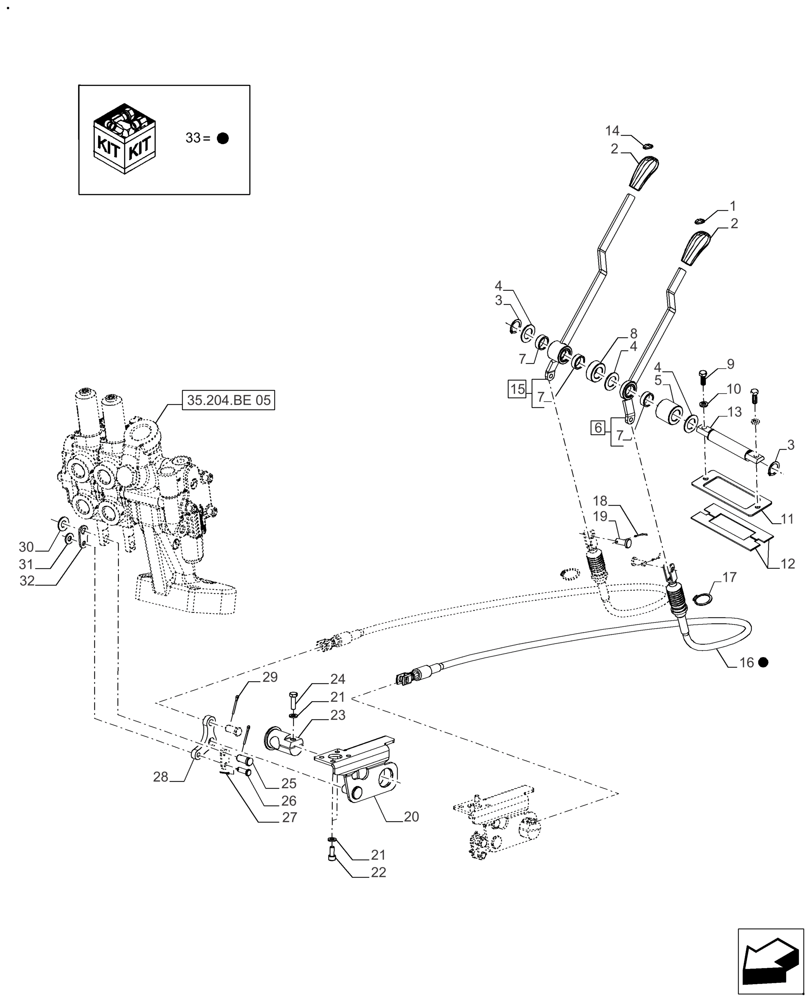

Запчасти Case IH FARMALL 110A (35.204.BL[08]) - REMOTE CONTROL VALVE, 2 CONTROL VALVE, CAB - AFTER SN: CF01578M (35) - HYDRAULIC SYSTEMS

1

87698505

DATA PLAQUE

Green

1шт.

2

47056482

KNOB

2шт.

3

81822229

SNAP RING,#75, 3/4", Ext

2шт.

4

82989335

SHIM

3шт.

5

73336111

SPACER

Spacer Long Valve

1шт.

6

73335642

CONTROL LEVER

Lever Remote Valve Assy, Incl 7

1шт.

7

73335637

BUSHING

Bushing Remote Valve Assy

3шт.

8

73336109

SPACER

Spacer Short Valve

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

10

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

11

73335657

FENDER

Flange Levers

1шт.

12

73335634

SEAL

Seal Levers

2шт.

13

73335632

PIN

Pin Remote Valve

1шт.

14

87698506

DATA PLAQUE

Blue

1шт.

15

47460949

LEVER

Lever Remote Valve Assy, Incl 7, Start Year: 16-APR-13

1шт.

16

47956630

CABLE

ASSY-HYD R/CNTRL VLV, with two clevis, OAL = 1000 mm / 39.37"

2шт.

17

81865873

CLIP,19.40mm D

2шт.

18

81813879

COTTER PIN,1/16" x 3/4"

2шт.

19

385818

CLEVIS PIN,M8 x 20

2шт.

20

73338186

SUPPORT

SUP ASSY REMOTE VLV

2шт.

21

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.

22

47537437

SCREW

SCREW, HEX SOC, M6X1.0X14.0 FULL 12.9ZND

4шт.

23

87683059

PIN,28mm OD x 46.5mm L

, Years: -17-JAN-14, Serial Range: -NH03900M, NH03901M, NH03902M

2шт.

23

47600116

PIN

Pin, Groove, Start Year: 17-JAN-14, Start Serial: NH03900M, NH03901M, NH03902M

2шт.

24

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

25

86637937

CLEVIS PIN,3/8" x 11/16"

4шт.

26

81873225

PIN,1/4" x 49/64" L

2шт.

27

81454228

COTTER PIN,1/16" x .50" L

2шт.

28

73338188

CAM

CAM, PIVOT

2шт.

29

81813880

COTTER PIN,3/32" x 3/4"

4шт.

30

85700664

WASHER,3/8" x .81" x .08" Thk

2шт.

31

83926806

WASHER,1/4", SAE

2шт.

32

73338189

PLATE

LINK

4шт.

33

48018733

KIT

Cab 2 Remote Valves, Incl 16

1шт.

To See the Full Kit Composition Look Figure 90.160.BL (02)

1шт.
