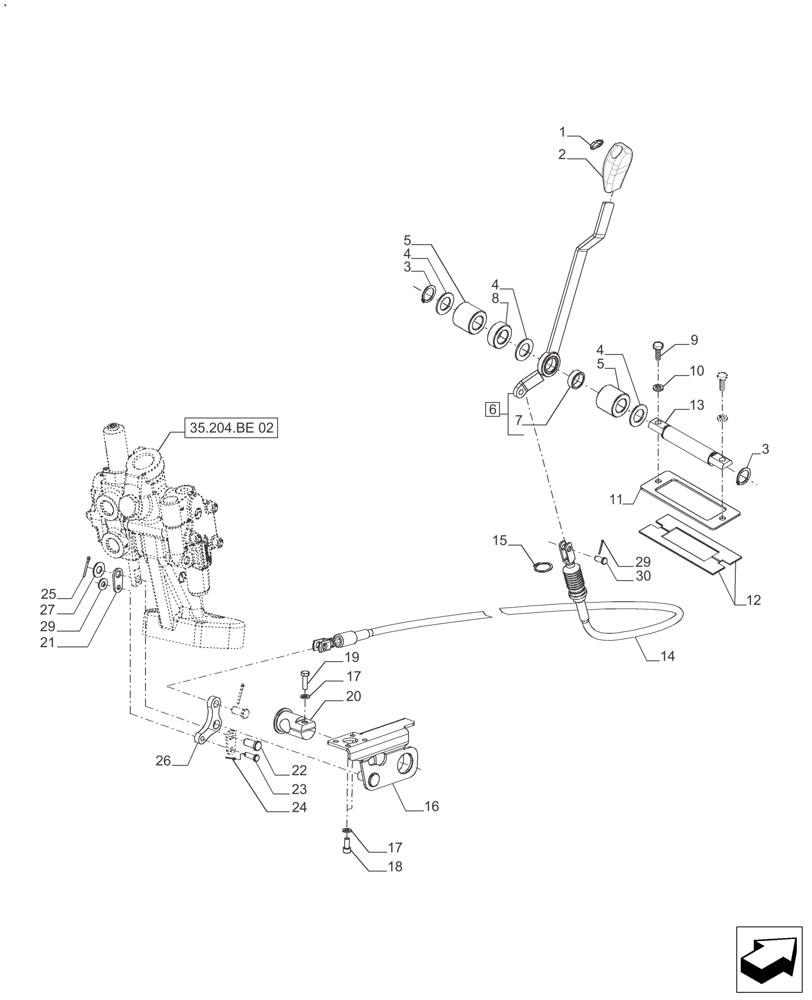

Запчасти Case IH FARMALL 110A (35.204.BL[07]) - REMOTE CONTROL VALVE, 1 CONTROL LEVER, CAB - AFTER SN: CF01573M (35) - HYDRAULIC SYSTEMS

1

87698505

DATA PLAQUE

Green

1шт.

2

47056482

KNOB

1шт.

3

81822229

SNAP RING,#75, 3/4", Ext

2шт.

4

82989335

SHIM

3шт.

5

73336111

SPACER

Spacer Long Valve

2шт.

6

73335642

CONTROL LEVER

Lever Remote Valve Assy, Incl 7

1шт.

7

73335637

BUSHING

Bushing Remote Valve Assy

1шт.

8

73336109

SPACER

Spacer Short Valve

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

10

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

11

73335657

FENDER

Flange Levers

1шт.

12

73335634

SEAL

Seal Levers

2шт.

13

73335632

PIN

Pin Remote Valve

1шт.

14

47956630

CABLE

ASSY-HYD R/CNTRL VLV, with two clevis, OAL = 1000 mm / 39.37"

1шт.

15

81865873

CLIP,19.40mm D

1шт.

16

73338186

SUPPORT

SUP ASSY REMOTE VLV

1шт.

17

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

18

47537437

SCREW

2шт.

19

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

20

87683059

PIN,28mm OD x 46.5mm L

, Years: -17-JAN-14, Serial Range: -NH03900M, NH03901M, NH03902M

1шт.

20

47600116

PIN

Pin, Groove, Start Year: 17-JAN-14, Start Serial: NH03900M, NH03901M, NH03902M

1шт.

21

73338189

PLATE

LINK

2шт.

22

86637937

CLEVIS PIN,3/8" x 11/16"

2шт.

23

81873225

PIN,1/4" x 49/64" L

1шт.

24

81454228

COTTER PIN,1/16" x .50" L

1шт.

25

81813880

COTTER PIN,3/32" x 3/4"

2шт.

26

73338188

CAM

CAM, PIVOT

1шт.

27

85700664

WASHER,3/8" x .81" x .08" Thk

1шт.

28

83926806

WASHER,1/4", SAE

1шт.

29

81813879

COTTER PIN,1/16" x 3/4"

1шт.

30

385818

CLEVIS PIN,M8 x 20

1шт.
