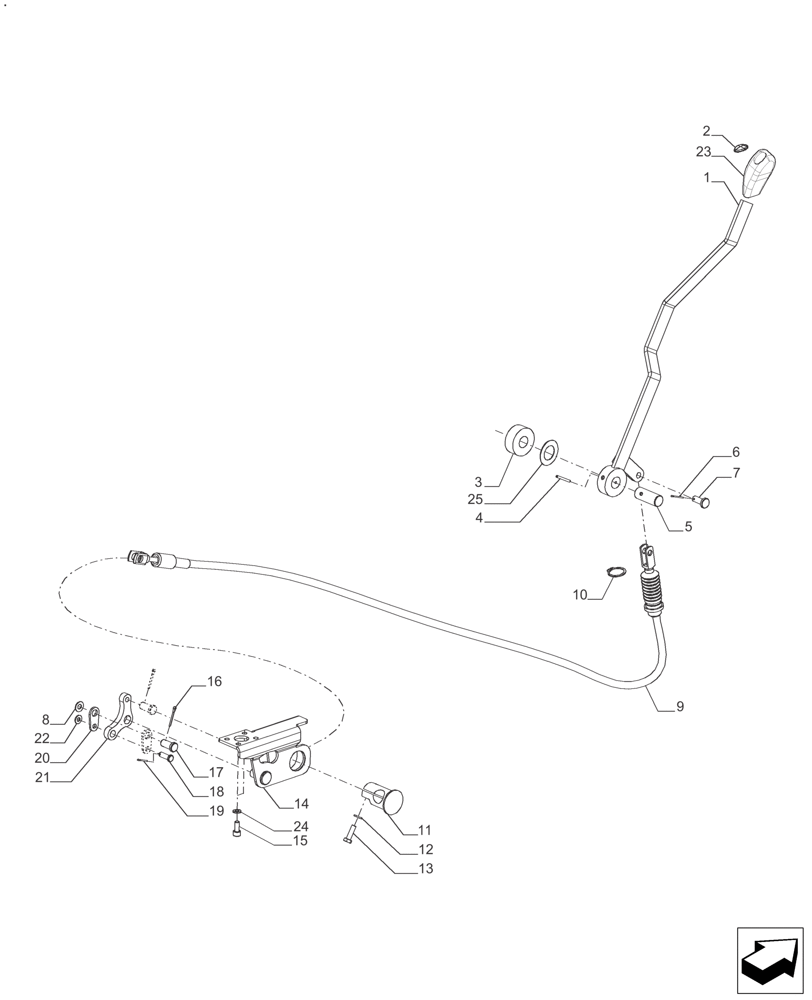

Запчасти Case IH FARMALL 110A (35.204.BL[04]) - REMOTE CONTROL VALVE, 1 CONTROL LEVER, PLATFORM - BEFORE SN: CF01573M (35) - HYDRAULIC SYSTEMS

1

73335475

LEVER

1шт.

2

87698505

DATA PLAQUE

Green

1шт.

3

82989384

LEVER

Lever Hub

1шт.

4

14162270

LOCK PIN,M3 x 28, Slotted

1шт.

5

47451547

SHAFT

1шт.

6

81813879

COTTER PIN,1/16" x 3/4"

1шт.

7

385818

CLEVIS PIN,M8 x 20

1шт.

8

85700664

WASHER,3/8" x .81" x .08" Thk

1шт.

9

47769396

CABLE

L= 1200 mm

1шт.

10

81865873

CLIP,19.40mm D

1шт.

11

87683059

PIN,28mm OD x 46.5mm L

, Years: -17-JAN-14, Serial Range: -NH03900M, NH03901M, NH03902M

1шт.

11

47600116

PIN

Pin, Groove, Start Year: 17-JAN-14, Start Serial: NH03900M, NH03901M, NH03902M

1шт.

12

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

13

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

14

73338186

SUPPORT

SUP ASSY REMOTE VLV DRIVE

1шт.

15

47537437

SCREW

SCREW, HEX SOC, M6X1.0X14.0 FULL 12.9ZND

2шт.

16

81813880

COTTER PIN,3/32" x 3/4"

2шт.

17

86637937

CLEVIS PIN,3/8" x 11/16"

2шт.

18

81873225

PIN,1/4" x 49/64" L

1шт.

19

81454228

COTTER PIN,1/16" x .50" L

1шт.

20

73338189

PLATE

Link

2шт.

21

73338188

CAM

CAM, PIVOT

1шт.

22

83926806

WASHER,1/4", SAE

1шт.

23

47056482

KNOB

1шт.

24

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

25

82989331

SHIM

0.015

1шт.

25

82989332

SHIM

0.018, Start Year: 05-FEB-14

1шт.

25

82989333

SHIM

0.022, Start Year: 05-FEB-14

1шт.

25

82989334

SHIM

0.025, Start Year: 05-FEB-14

1шт.

25

82989335

SHIM

0.028, Start Year: 05-FEB-14

1шт.
