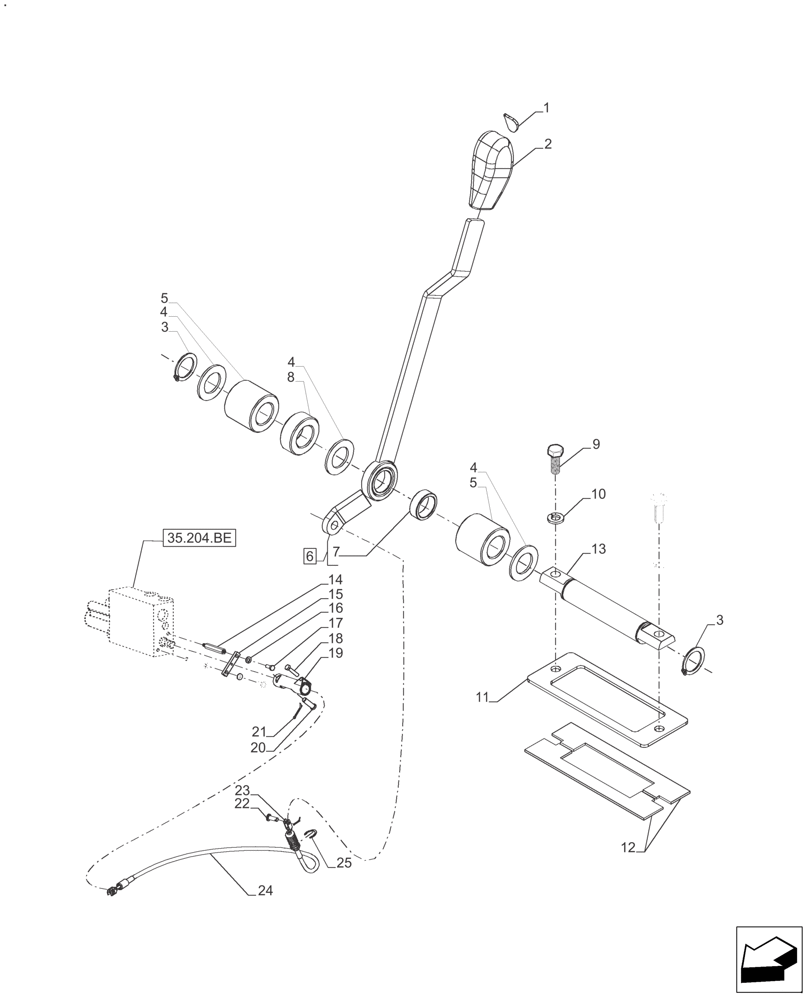

Запчасти Case IH FARMALL 110A (35.204.BL[01]) - 1 CONTROL VALVE, CAB - BEFORE SN: CF01573M (35) - HYDRAULIC SYSTEMS

1

87698505

DATA PLAQUE

Green

1шт.

2

47056482

KNOB

1шт.

3

81822229

SNAP RING,#75, 3/4", Ext

2шт.

4

82989335

SHIM

3шт.

5

73336111

SPACER

Spacer Long Valve

2шт.

6

73335642

CONTROL LEVER

Lever Remote Valve Assy, Incl 7

1шт.

7

73335637

BUSHING

Bushing Remote Valve Assy

1шт.

8

73336109

SPACER

Spacer Short Valve

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

10

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

11

73335657

FENDER

Flange Levers

1шт.

12

73335634

SEAL

Seal Levers

2шт.

13

73335632

PIN

Pin Remote Valve

1шт.

14

73336322

STUD

Stud Valve Cable

2шт.

15

73336321

CLAMP

Clamp Valve Cable

1шт.

16

83935046

LOCK WASHER,Helical Spring, 1/4" ID x 0.489" OD x 0.062" Thk

2шт.

17

83925971

SCREW,M6 x 1 x 1mm, Gr 8.8

2шт.

18

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

19

73336318

VALVE

Couple Valve Cable

1шт.

20

81823756

CLEVIS PIN,3/8" x 1 9/64"

1шт.

21

85700711

COTTER PIN,3/32" x 1"

1шт.

22

385818

CLEVIS PIN,M8 x 20

1шт.

23

81813879

COTTER PIN,1/16" x 3/4"

1шт.

24

47769399

CABLE

Cable Assy. Hydraulic Control Valve, with two clevis, OAL = 600 mm / 23.622"

1шт.

25

81865873

CLIP,19.40mm D

1шт.
