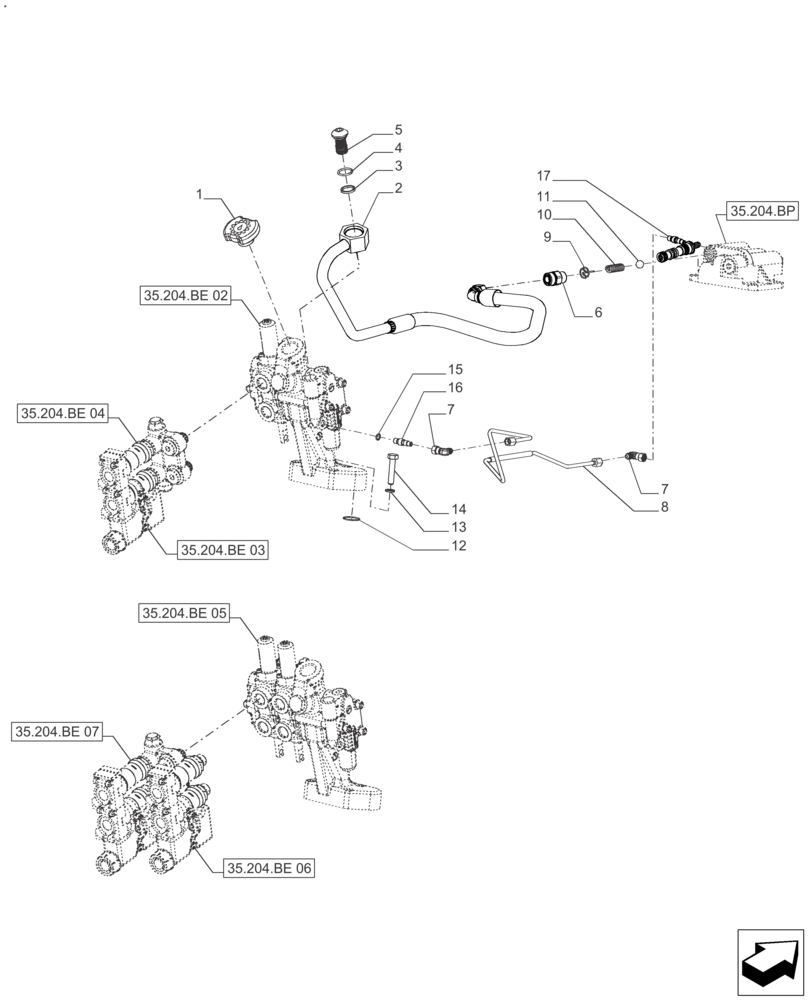

Запчасти Case IH FARMALL 110A (35.204.BJ[01]) - REMOTE CONTROL VALVE, HOSES (1 & 2 VALVES) - AFTER SN: CF01573M, CF01578M (35) - HYDRAULIC SYSTEMS

1

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

2

47651587

HOSE

HOSE, HYD, PRIORITY VALVE, Start Serial: CF02869M

1шт.

3

82982927

OIL SEAL,22.35mm ID x 26.98mm OD x 3.17mm Thk

1шт.

4

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

73335070

BANJO BOLT

1шт.

6

47651589

FITTING

, Start Serial: CF02869M

1шт.

7

83926127

90 ELBOW,Swl, 7/16"-20

2шт.

8

73337997

TUBE

Tube, Hyd Assy, Remote Valve

1шт.

9

83953244

STOP

1шт.

10

83946314

SPRING

1шт.

11

81820737

BALL,9/16"

1шт.

12

9626940

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1шт.

13

85700672

LOCK WASHER,M10

4шт.

14

47538137

BOLT

Bolt, M10 x 1.25 x 50 Full 8.8 Geo Din HD

4шт.

15

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

83925042

PLUG

1шт.

17

47980283

CONVERSION KIT

VALVE, DELUXE CONVERSION

1шт.
