/ / / / / / / / (35.204.BE[19]) - VAR - 429479, 429480 - REMOTE CONTROL VALVE (4 VALVES), NOT APPLY FOR NAR

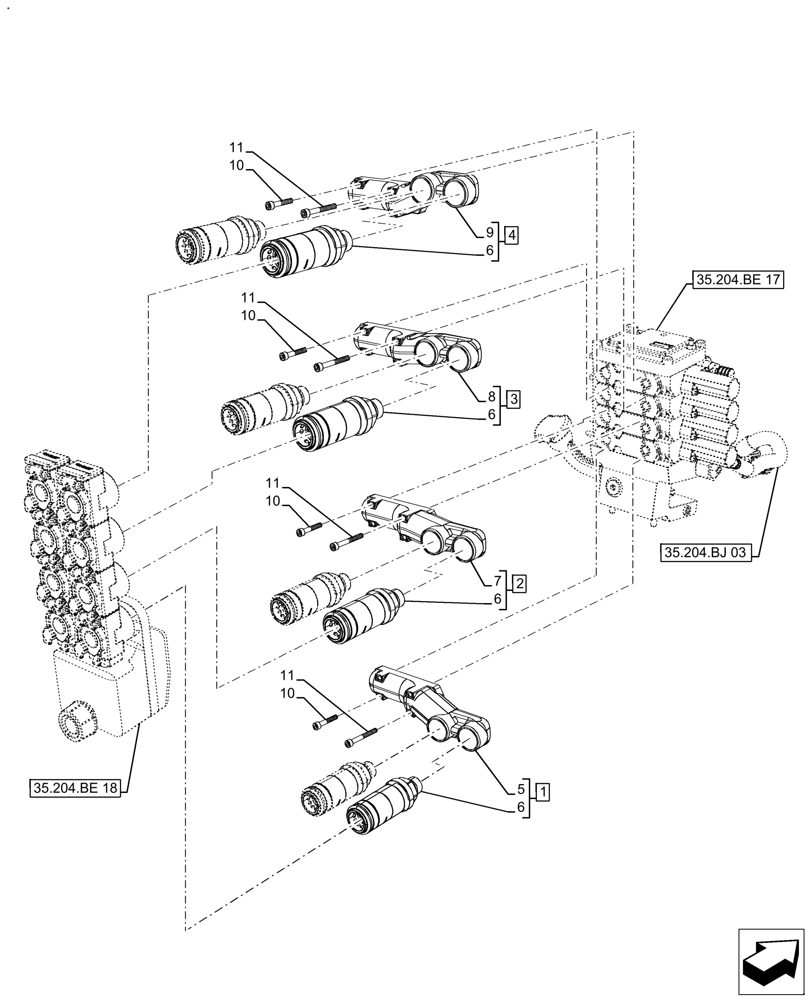

Запчасти Case IH FARMALL 110A (35.204.BE[19]) - VAR - 429479, 429480 - REMOTE CONTROL VALVE (4 VALVES), NOT APPLY FOR NAR (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case IH FARMALL 110A - (35.204.BE[19]) - VAR - 429479, 429480 - REMOTE CONTROL VALVE (4 VALVES), NOT APPLY FOR NAR (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/5401837.png)
35.204.be 18
2
6
11
10
11
5
11
7
8
11
10
6
6
10
10
9
1
3
6
4
35.204.bj 03
35.204.be 17
1
87381958
QUICK MALE COUPLING
Incl 5, 6
1шт.
2
87381963
QUICK MALE COUPLING
Incl 6, 7
1шт.
3
87381964
QUICK MALE COUPLING
Incl 6, 8
1шт.
4
87381965
QUICK MALE COUPLING
Incl 6, 9
1шт.
5
47123058
HOLDER
1шт.
6
47370116
COUPLING
2шт.
7
47123060
Support, Quick Couplers
1шт.
8
47123062
Support, Quick Couplers
1шт.
9
47123064
Support, Quick Couplers
1шт.
10
47940507
SCREW
Hex Soc, M6 x 35 12.9 DAC
8шт.
11
47940518
SCREW
Hex Soc, M6 x 50 12.9 DAC
8шт.
Выбрано товаров: 0
