(35.204.BE[13]) - VAR - 429471, 429476 - REMOTE CONTROL VALVE (1 VALVE), NOT APPLY FOR NAR

Запчасти Case IH FARMALL 110A (35.204.BE[13]) - VAR - 429471, 429476 - REMOTE CONTROL VALVE (1 VALVE), NOT APPLY FOR NAR (35) - HYDRAULIC SYSTEMS

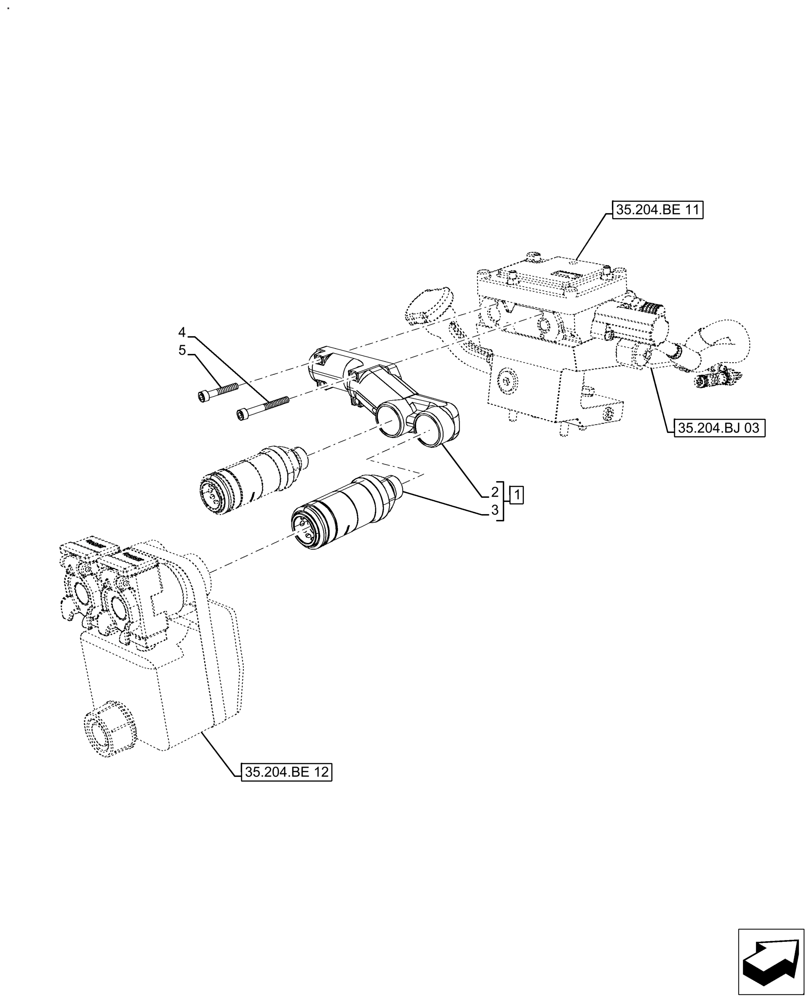

Схема запчастей Case IH FARMALL 110A - (35.204.BE[13]) - VAR - 429471, 429476 - REMOTE CONTROL VALVE (1 VALVE), NOT APPLY FOR NAR (35) - HYDRAULIC SYSTEMS
35.204.be 12
2
5
4
1
3
35.204.be 11
35.204.bj 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381958

QUICK MALE COUPLING

Incl 2, 3

1шт.

2

47123058

HOLDER

Support, Quick Couplers

1шт.

3

47370116

COUPLING

2шт.

4

47940518

SCREW

Hex Soc, M6 x 50 12.9 DAC

2шт.

5

47940507

SCREW

Screw, Hex Soc, M6 x 35 12.9 DAC

2шт.
