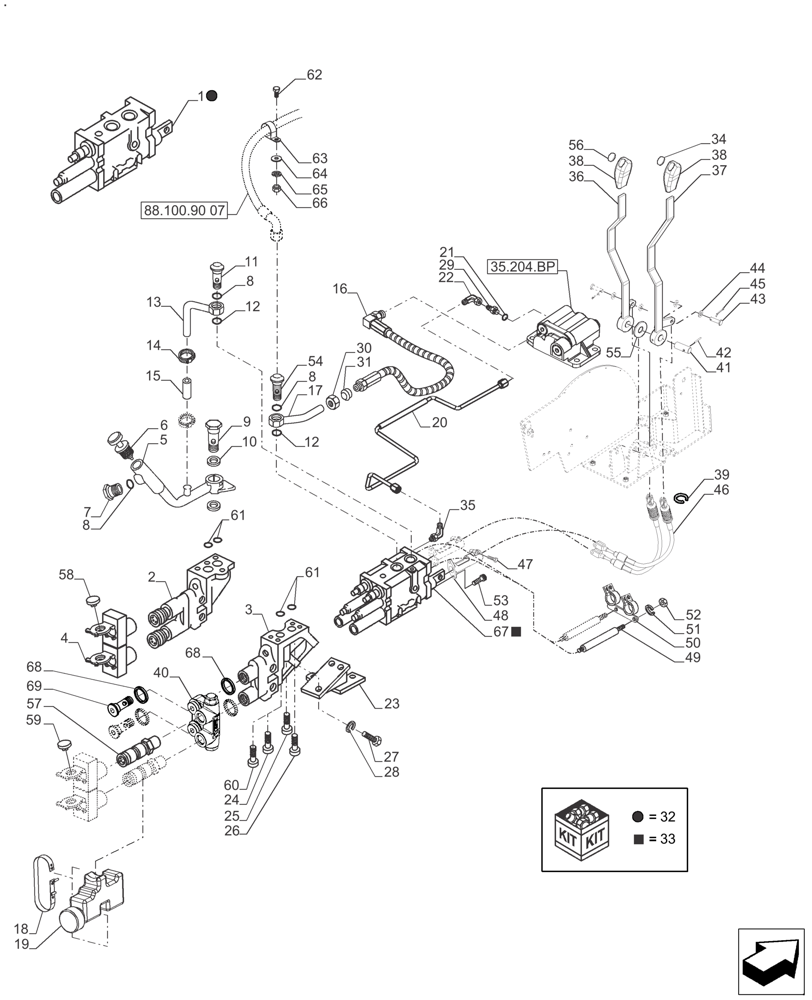

Запчасти Case IH FARMALL 110A (35.204.BE[01]) - DELUXE REMOTE HYDRAULIC CONTROL VALVE - BEFORE SN: CF01573M, CF01578M, CF01596M (35) - HYDRAULIC SYSTEMS

1

82988268

HYDRAULIC VALVE

Valve Assy. Hydraulic Remote Control 1 Spool

1шт.

2

87382000

PUSH-PULL COUPLING

Quick Coupler Assy., LH

1шт.

3

87382001

PUSH-PULL COUPLING

Quick Coupler Assy., RH, Incl 57

1шт.

4

82018943

DUST CAP

Dust, Cover Assy.

1/2шт.

5

82983752

NECK FILLER

Assy. Oil Fill Tube

1шт.

6

83907851

FILLER CAP

Cap Oil Filler Tube

1шт.

7

83957506

PLUG,3/4"

1шт.

8

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

3шт.

9

81872082

BANJO BOLT,1 3/8"-12 x M70.1

Rear Axle Filler Pipe

1шт.

10

81872311

COPPER WASHER,35.6mm ID x 48.3mm OD x 1.5mm Thk

Gasket

2шт.

11

83934404

BANJO BOLT,7/8" - 14

Lubricant

1шт.

12

82982927

OIL SEAL,22.35mm ID x 26.98mm OD x 3.17mm Thk

Tube Return Oil

2шт.

13

82983805

ADAPTER

Tube Assy., Oil Return

1шт.

14

82878201

CLAMP,22 - 32

Hose

2шт.

15

82989346

FLEXIBLE HOSE

Hose Flexible, Remote Valve

1шт.

16

82983354

HYDRAULIC HOSE,12.7mm ID x 585mm L, SAE 100R2

Assy, Remote Valve Priority

1шт.

17

82983355

HYD TUBE,135.1 mm Length

Adaptor, Tube Assy., Remote Valve Pressure

1шт.

18

82032061

CLIP

Only With Simple Valve

1шт.

18

82032061

CLIP

Only With Double Valve

2шт.

18

82032061

CLIP

Only With Quadruple Valve

4шт.

19

47922580

BOTTLE

Only With Simple Valve

1шт.

19

47922580

BOTTLE

Only With Double Valve

2шт.

19

47922580

BOTTLE

Only With Quadruple Valve

4шт.

20

82988908

TUBE

Tube Assy. Remote Valve

1шт.

21

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

83926127

90 ELBOW,Swl, 7/16"-20

1/4 Tube OD - 37°

1шт.

23

82988418

VALVE

Support Assy. Remote Valve

1шт.

24

83929306

HEX SOC SCREW,5/16"-18 x 3 1/2", Gr 8

Allen

1шт.

25

83913138

HEX SOC SCREW,5/16" - 18 x 1-3/4", Gr 8

Allen

1шт.

26

81823507

SCREW,5/16" - 18 x 1", Gr 8

Allen

4шт.

27

81821205

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

28

83907387

LOCK WASHER,3/8"

3шт.

29

83925042

PLUG

Plug, Hydraulic Lift Unload Valve

1шт.

30

83934417

TUBE NUT,0.625" OD

1шт.

31

83934416

FERRULE

Ferrule

1шт.

32

82989079

REPAIR KIT

Valve of Luxe 1 Spool, Incl 1

1шт.

33

82989147

REPAIR KIT

Valve of Luxe 2 Spool, Incl 67

1шт.

34

87698505

DATA PLAQUE

1шт.

35

83934423

90 ELBOW,7/16"-20, 37° x 7/16"-20, O-Ring

1/4 Nom Tube OD

1шт.

36

73335477

LEVER

Lever LH, Remote Valve

1шт.

37

73335475

LEVER

Lever RH, Remote Valve

1шт.

38

47056482

KNOB

2шт.

39

81865873

CLIP,19.40mm D

Remote Control Valve Cable

1/2шт.

40

73336125

VALVE

Retaining Assy., Incl 68, 69

1шт.

41

385818

CLEVIS PIN,M8 x 20

2шт.

42

14162270

LOCK PIN,M3 x 28, Slotted

1шт.

43

335040

CLEVIS PIN,M8 x 28mm OAL

2шт.

44

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

(9 x 17 x 1.5 mm), Flat Stl.

4шт.

45

85700711

COTTER PIN,3/32" x 1"

2шт.

46

47956630

CABLE

ASSY-HYD R/CNTRL VLV, with two clevis, OAL = 1000 mm / 39.37"

2шт.

47

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

48

82989240

SUPPORT

Support (PLAT)

2шт.

49

81865843

ROD

Control Remote Valve (CAB)

2шт.

50

81879193

CLAMP

(CAB)

1шт.

51

82936477

LOCK WASHER,#10

(CAB)

2шт.

52

81838649

NUT,M5

(x 0.8, G8.8) (CAB)

2шт.

53

81823507

SCREW,5/16" - 18 x 1", Gr 8

4шт.

54

73335070

BANJO BOLT

Bolt Assy - Hydraulic Remote Control Valve Fitting

1шт.

55

82989331

SHIM

Shim, .400/.361 [.015/.014] Thickness

1шт.

55

82989332

SHIM

Shim, .476/.438 [.018/.017] Thickness

1шт.

55

82989333

SHIM

Shim, .559/.508 [.022/.020] Thickness

1шт.

56

87698506

DATA PLAQUE

(Blue)

1шт.

57

47370116

COUPLING

2шт.

57

83925156

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

57

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

58

82019035

DISC,Blue

Couple

2шт.

59

82019032

DISC,Green

Couple

2шт.

60

83929307

HEX SOC SCREW,5/16"-18 x 4 1/2", Gr 8

Allen

1шт.

61

83925156

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

62

83907141

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8

Use Only with Front Loader, Start Year: 14-JAN-13

1шт.

63

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

Use Only with Front Loader, Start Year: 14-JAN-13

4шт.

64

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

Use Only with Front Loader, Start Year: 14-JAN-13

1шт.

65

81845769

LOCK WASHER,5/16"

Use Only with Front Loader, Start Year: 14-JAN-13

1шт.

66

83958007

NUT,M8, G8

Use Only with Front Loader, Start Year: 14-JAN-13

1шт.

67

82988269

HYDRAULIC VALVE

Valve Assy. Hydraulic Remote Control 2 Spool

1шт.

67

82988269R

REMAN-HYD VALVE

Valve Assy. Hydraulic Remote Control 2 Spool

1шт.

67

82988269C

CORE-VALVE HYD

Return Number

1шт.

67

82988269

HYDRAULIC VALVE

Valve Assy. Hydraulic Remote Control 4 Spool

2шт.

67

82988269R

REMAN-HYD VALVE

Valve Assy. Hydraulic Remote Control 4 Spool

2шт.

67

82988269C

CORE-VALVE HYD

Return Number

2шт.

68

47965623

SEALING WASHER

Washer Sealing, Incl in 40

4шт.

69

NSS

NOT SOLD SEPARAT

Connector Bolt 22 mm Diameter, Incl in 40

2шт.
