Запчасти Case IH FARMALL 110A (35.124.AD[01]) - HYDRAULIC LIFT ASSIST CYLINDER SINGLE (35) - HYDRAULIC SYSTEMS

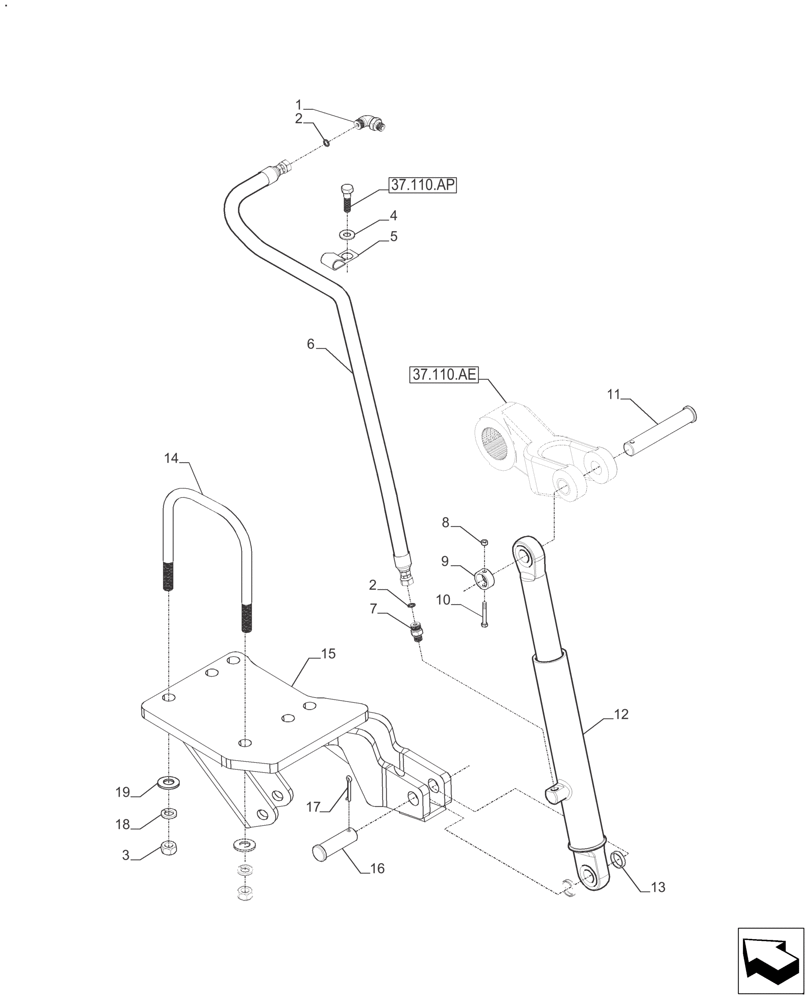

Схема запчастей Case IH FARMALL 110A - (35.124.AD[01]) - HYDRAULIC LIFT ASSIST CYLINDER SINGLE (35) - HYDRAULIC SYSTEMS
16
6
19
8
4
5
1
2
10
7
37.110.ae
9
37.110.ap
15
18
17
3
11
2
14
12
13

Артикул

Название

Примечание

Количество

1

83961741

90 ELBOW,11/16"-16 ORFS x 9/16"-18 ORB

1шт.

2

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Seal

2шт.

3

408

NUT,5/8" - 18, Gr 5

(CAB) 4/6 Cyl.

2шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

5

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

6

82988176

HOSE,9.53mm ID x 1200mm L

Assy, LH, Auxiliary Cylinder RAM

1шт.

7

81863515

HYD CONNECTOR,M14 x 11/16"-16 ORS

1шт.

8

81851140

NUT,M6 x 1, Cl 8

Nut, Pin, Cylinder Ram, Fork

1шт.

9

82001205

SPACER,25.4mm ID x 34mm OD x 14mm L

Spacer

1шт.

10

82880929

BOLT,Hex, M6 x 1 x 45mm, Gr 8.8

Pin, Cylinder Ram, Fork

1шт.

11

82980688

PIN,25.25mm OD x 154.5mm L

Cylinder Ram, Fork

1шт.

12

82005025

LIFT CYLINDER

Cylinder Assy. Hydraulic Lift Assist RAM.

1шт.

13

83993405

SPACER,M26 ID x 30 x 6 Thk

2шт.

14

83919385

BOLT,U, 5/8" - 18 x 8"

Bolt U

1шт.

ONLY WITH CAB|3|SOLO CON CABINA|8|CABINADO

1шт.

15

73337153

SUPPORT

SUP ASSY R/C-STAB LH PTD

1шт.

16

83993409

PIN,25.2mm OD x 85.5mm L

Lower

1шт.

17

83980608

COTTER PIN,3/16" x 1 3/4" L

1шт.

18

86729275

LOCK WASHER,5/8 0.634 CST ZND

(CAB) 4/6 Cyl.

2шт.

19

82894584

WASHER

Flat Washer 5/8 17 x 34 x 2.6, Start Year: 10-APR-13

4шт.

ONLY WITH CAB

1шт.

Выбрано товаров: 21
