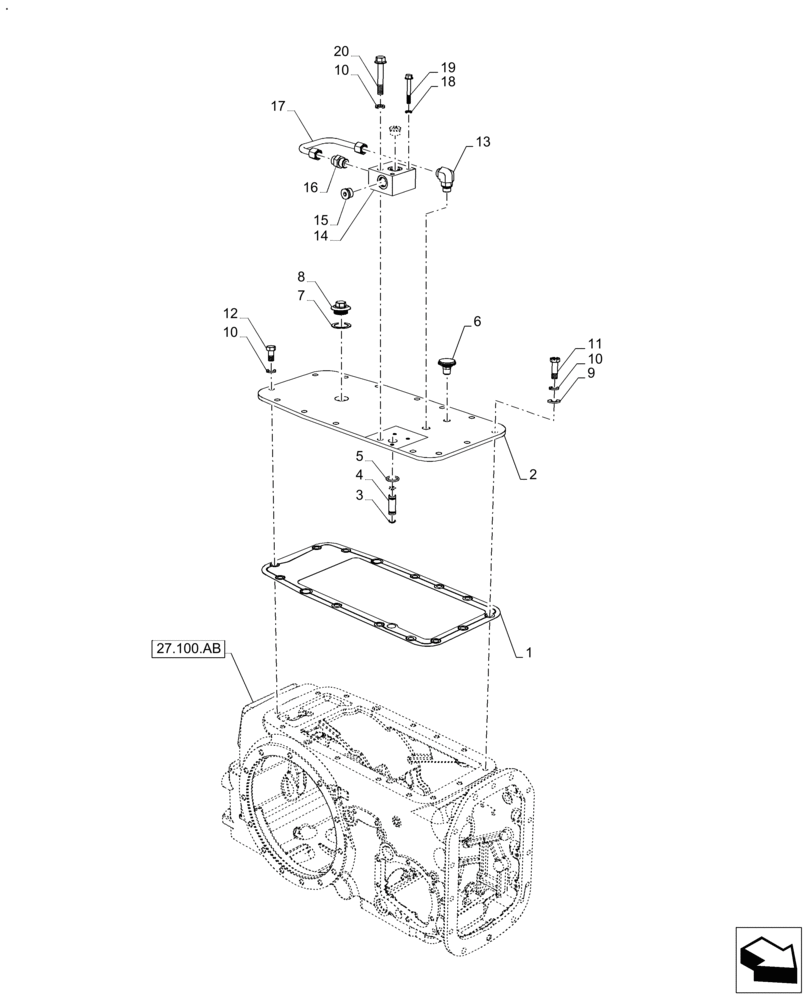

Запчасти Case IH FARMALL 110A (35.100.AB) - LESS HYDRAULIC LIFT, ASSY (35) - HYDRAULIC SYSTEMS

1

81865596

GASKET,0.24mm Thk

HYD LIFT HSG COVER

1шт.

2

47506262

COVER PTD, LESS HYD LIFT COVER

1шт.

3

83992634

O-RING,0.562" ID x 0.07" Width

2шт.

4

83902336

TUBE,17.145 mm OD, 50.04 mm Length

1шт.

5

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

6

83925022

BREATHER,.375-18 NPT

ASSY, HYDRAULIC LIFT

1шт.

7

81872311

COPPER WASHER,35.6mm ID x 48.3mm OD x 1.5mm Thk

1шт.

8

83924810

PLUG,1-3/8" - 12

1шт.

9

81825893

WASHER,1/2" ID x 1.062" OD x 0.095" Thk

7шт.

10

83925802

LOCK WASHER,1/2"

15шт.

11

81843379

LOCK BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

7шт.

12

81821209

BOLT,Hex, 1/2" - 13 x 1", Gr 5

7шт.

13

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

1шт.

14

47506470

MANIFOLD, HYD PTD, MANIFOLD, HYD PTD, LE

1шт.

15

86625138

PLUG,7/18" - 14

2шт.

16

87610720

HYD CONNECTOR,7/8" - 14 ORB x 13/16" - 16 ORFS

-8 ORFS X -10 ORB

1шт.

17

47525789

TUBE, HYD PTD, ASM RE CYCLING TUBE

1шт.

18

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

3шт.

19

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

3шт.

20

84246779

BOLT

FLANGE, 1/2-13 X 3.0 GR 8 ZND

1шт.
