Запчасти Case IH FARMALL 110A (31.114.AI) - CLUTCH & VALVE ASSEMBLY, PTO (31) - IMPLEMENT POWER TAKE OFF

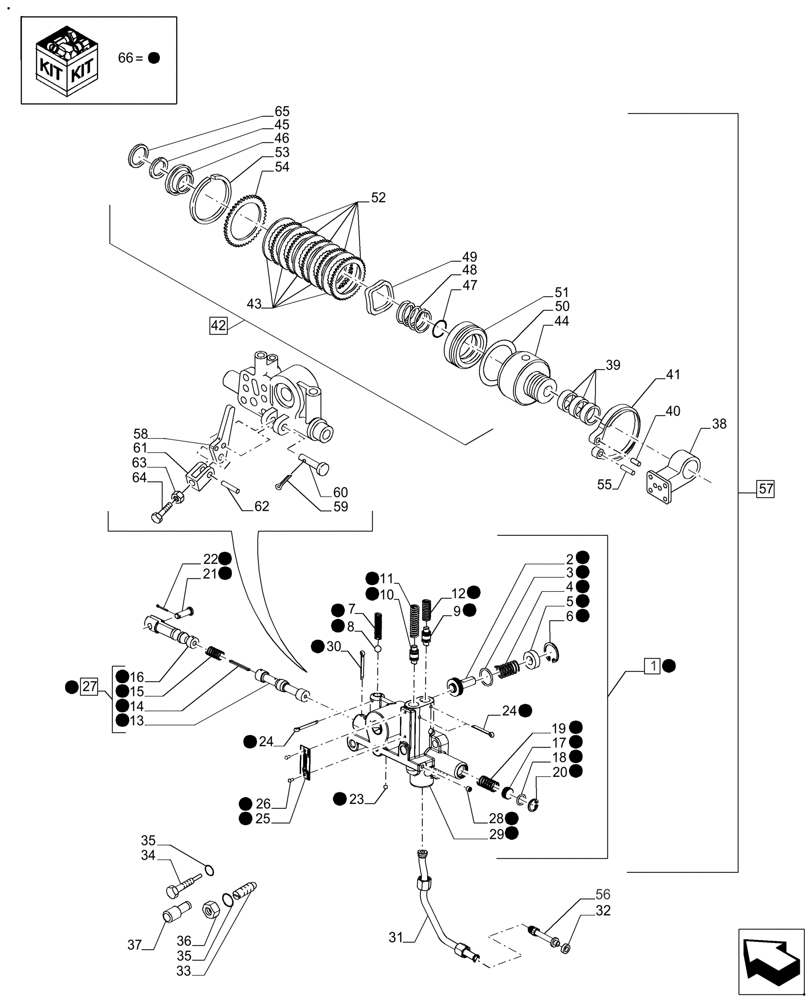

Схема запчастей Case IH FARMALL 110A - (31.114.AI) - CLUTCH & VALVE ASSEMBLY, PTO (31) - IMPLEMENT POWER TAKE OFF
35
34
25
55
33
9
14
43
32
3
51
6
5
52
12
22
26
15
40
59
21
20
24
37
2
18
53
47
39
16
61
57
50
54
38
58
29
31
45
27
17
36
49
11
30
1
46
19
56
48
65
41
7
13
60
42
24
23
64
66
10
63
44
28
8
62
4
35

Артикул

Название

Примечание

Количество

1

82989498

HYDRAULIC VALVE

VALVE ASSY-PTO DRIVE CLUTCH (MECHANICAL), Incl 2 - 30

1шт.

1

73337532

HYDRAULIC VALVE

VALVE ASSY-PTO DRIVE CLUTCH (POWER SHUTTLE), Incl 2 - 30, Not Shown

1шт.

2

83999380

PISTON

1шт.

3

83416166

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

4

81866141

SPRING,Compression, 0.66"OD x 1.35" L

1шт.

5

83999367

GUIDE

1шт.

6

83999348

SNAP RING

1шт.

7

81801953

SPRING

1шт.

8

83902379

BALL,5/16"

1шт.

9

81827246

HYDRAULIC VALVE

1шт.

10

83924792

HYDRAULIC VALVE

1шт.

11

83955510

SPRING

1шт.

12

83924798

SPRING

1шт.

13

82967723

VALVE

VALVE-PTO DRIVE CLUTCH

1шт.

14

82971658

LINK

LINK-PTO DRIVE LUTCH CONTROL VLV

1шт.

15

82967642

SPRING

SPRING-INDEP PTO CLUTCH VALVE

1шт.

16

82967735

PLUNGER

PLUNGER-IPTO CLUTCH VALVE

1шт.

17

83924801

RETAINER

1шт.

18

83416160

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

19

83924800

SPRING

1шт.

20

83924811

SNAP RING,M14, Int

1шт.

21

81873225

PIN,1/4" x 49/64" L

1шт.

22

81454228

COTTER PIN,1/16" x .50" L

1шт.

23

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

24

85700336

COTTER PIN

3шт.

25

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Incl in 1

2шт.

27

83925863

PLUNGER

Incl 13 - 16

1шт.

28

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

29

81865579

HOUSING

1шт.

30

82928308

COTTER PIN,5/32" x 1"

1шт.

31

47858578

TUBE

Upper Tube, Assy. PTO

1шт.

32

82006934

OIL SEAL,12.39mm ID x 23.72mm OD x 10.55mm Thk

Seal, PTO, Oil Tube

1шт.

33

83907422

PIN,16.38mm OD x 38.1mm L

1шт.

34

83929580

PIN,6.9mm OD x 30.5mm L

Pin

1шт.

35

81817883

SEAL,5.84mm ID x 12.95mm OD x 1.75mm Thk

Seal

2шт.

36

86509499

JAM NUT,3/8"-16, G2

1шт.

37

81879012

PLASTIC-RUBBER TUBE,7.83 mm ID, 9.5 mm OD, 22 mm Length

PTO

1шт.

38

81826819

SUPPORT

Electric Valve, Support

1шт.

39

81809513

OIL SEAL,Split, 55.24mm ID x 60.33mm OD x 3.15mm Thk

3шт.

40

81874974

PIN,5/16" x 5/8" L

1шт.

41

47124034

BRAKE BAND,0.8mm Thk

Band Assy., PTO Drive Clutch

1шт.

42

47721092

CLUTCH & DISC ASSY

Assy, Independent PTO, Drive, Incl 44 - 55

1шт.

43

81870755

CLUTCH PLATE,106.55mm ID x 148.84mm OD x 2.34mm Thk

Plate Assy., Internal Splines, Standard Pump

5шт.

44

83924795

HOUSING

& Bushing Assy

1шт.

45

81808602

SNAP RING,1.97" ID

1шт.

46

81804877

SEAT/SLOT

Spring

1шт.

47

83416992

O-RING,3.63mm Thk x 53.11mm ID

Seal

1шт.

48

83935173

SPRING

Spring

1шт.

49

81833907

SPRING

Spring

1шт.

50

81805281

OIL SEAL,5.32" x 5.875" x .125" Thk

Transmission Clutch

1шт.

51

81876155

PISTON

Piston, Drive Clutch

1шт.

52

81808607

CLUTCH PLATE

Plate

5шт.

53

9823829

SNAP RING,6.25" OD

Transmission Clutch, PTO

1шт.

54

9824099

PISTON,113.5mm ID x 154.69mm OD x 9.7mm Thk

Plate, Transmission, Dual Power

1шт.

55

81819797

ANCHOR,11.18mm OD x 22.35mm L

Anchor PTO, Drive Clutch Brake Band Adj. Screw

1шт.

56

73337103

TUBE

TUBE ASSY LOWER PTO CLUTCH VALVE

1шт.

57

73337118

CLUTCH

Clutch and Valve Assy PTO Drive (MECHANICAL), Incl 1 - 30, 39 - 55, 58 - 64

1шт.

57

73336954

CLUTCH

Clutch and Valve Assy PTO Drive (POWER SHUTTLE), Incl 1 - 30, 39 - 55, 58 - 64

1шт.

58

81819791

ARM

1шт.

59

81454228

COTTER PIN,1/16" x .50" L

1шт.

60

83902339

CLEVIS PIN,1/4" x 1 9/32"

1шт.

61

83956645

CLEVIS,#10 - 32

Clevis

1шт.

62

81820593

PIN,3/16" x 5/8"

Lock

1шт.

63

9635646

LOCK NUT

1шт.

64

83905941

SCREW,#10 - 24 x 1"

1шт.

65

82967742

BUSHING,27.03mm ID x 30.28mm OD x 38.1mm L

1шт.

66

47612560

VALVE ASSY, KIT REPAIR, MECHANICAL, Incl 1 - 30, Start Serial: CF01999M

1шт.

66

47612566

VALVE ASSY, KIT REPAIR, POWER SHUTTLE, Incl 1 - 30, Start Serial: CF01999M

1шт.

Выбрано товаров: 69
