Запчасти Case IH FARMALL 110A (31.114.AB) - VAR - 390844, 330808 - SHAFT & GEAR - 2-SPEED (540/1000 RPM) (31) - IMPLEMENT POWER TAKE OFF

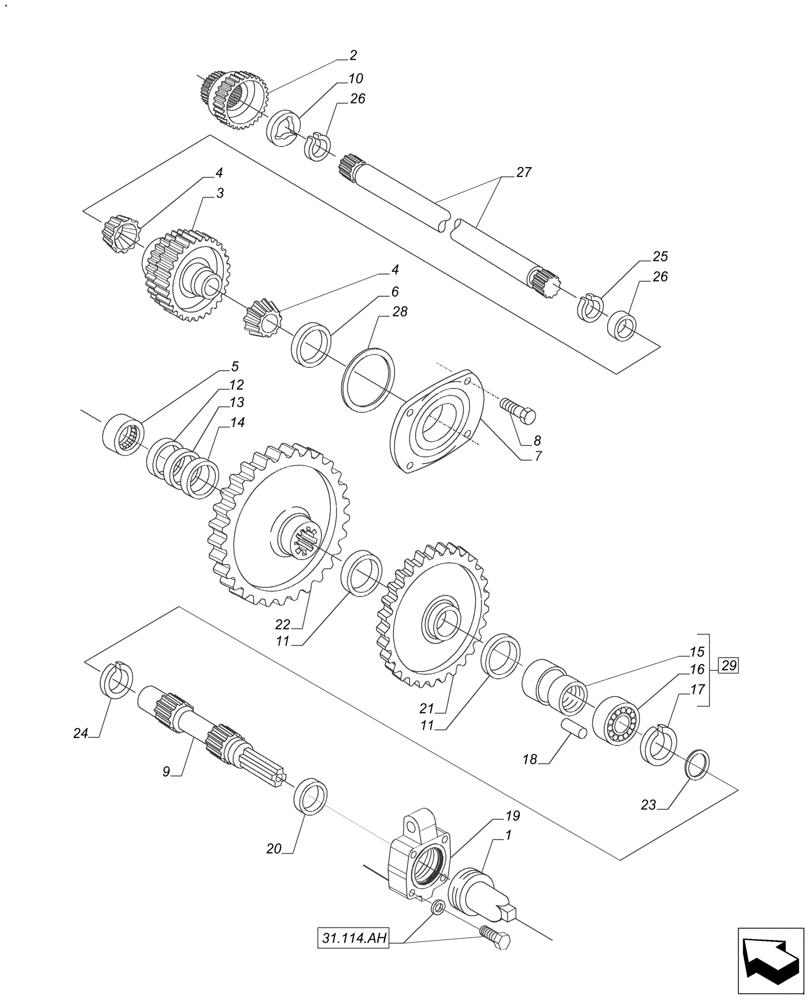

Схема запчастей Case IH FARMALL 110A - (31.114.AB) - VAR - 390844, 330808 - SHAFT & GEAR - 2-SPEED (540/1000 RPM) (31) - IMPLEMENT POWER TAKE OFF
16
2
9
27
26
6
29
24
23
11
25
14
7
22
11
13
5
28
8
31.114.ah
10
1
20
4
18
12
19
17
26
3
21
15
4

Артикул

Название

Примечание

Количество

1

47952294

Cap Cover, PTO Shaft

1шт.

2

81865535

HUB

PTO Drive Clutch

1шт.

3

73337478

GEAR

Gear 20 T/41 T - PTO Drive

1шт.

4

82971754

BEARING ASSY,41.27mm ID x 19.76mm W

2шт.

5

83913095

BEARING ASSY,Needle, 38.09mm ID x 47.64mm OD x 31.75mm W

Pilot, Bearing

1шт.

6

83924756

SHIM,67.3mm ID x 72.9mm OD x 0.53mm Thk

PTO, Upper Shaft, Bearing, Retaining

1шт.

6

83924757

SHIM,67.3mm ID x 72.9mm OD x 0.32mm Thk

PTO, Upper Shaft, Bearing, Retaining

1шт.

6

83924758

SHIM,67.3mm ID x 72.9mm OD x 0.14mm Thk

PTO, Upper Shaft, Bearing, Retaining

1шт.

6

83924759

SHIM,.0030" (.071mm) Thk

PTO, Upper Shaft, Bearing, Retaining

1шт.

6

83924760

SHIM,67.3mm ID x 72.9mm OD x 0.03mm Thk

PTO, Upper Shaft, Bearing, Retaining

1шт.

7

82983270

RETAINER

PTO, Rear, Upper Shaft

1шт.

8

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

4шт.

9

84157778

PTO SHAFT

Output, 1000 RPM

1шт.

9

47925433

PTO SHAFT

Output, 540 RPM

1шт.

10

81801955

THRUST WASHER,33.53mm ID x 53.85mm OD x 1.6mm Thk

1шт.

11

83924599

THRUST WASHER,50.8mm ID x 69.9mm OD x 1.65mm Thk

PTO

2шт.

12

9845542

THRUST WASHER,63.55mm ID x 82.3mm OD x 2.41mm Thk

PTO (540)

1шт.

12

87679392

THRUST WASHER,65.16mm ID x 90mm OD x 2mm Thk

65x90x2 mm (540/1000)

1шт.

13

9845543

THRUST BEARING,63.55mm ID x 82.3mm OD x 1.98mm W

(540)

1шт.

13

87679391

THRUST BEARING,65mm ID x 90mm OD x 3mm W

(540/1000)

1шт.

14

83927910

THRUST WASHER,63.55mm ID x 82.3mm OD x 0.81mm Thk

Lock (540)

1шт.

14

87679392

THRUST WASHER,65.16mm ID x 90mm OD x 2mm Thk

65x90x2 mm (540/1000)

1шт.

15

83946838

SLEEVE,47.4mm ID x 82.6mm OD x 67.6mm L

1шт.

16

81827243

BEARING ASSY

Pilot

1шт.

17

81819793

RING,2.78" ID

Retainer

1шт.

18

83946839

COILED PIN,M3 x 14

Roll

1шт.

19

83997961

RETAINER

PTO Shaft

1шт.

20

89823545

SEAL

Retainer, PTO Rear Shaft

1шт.

21

83926452

GEAR,84 T, 1000 RPM

PTO Driven

1шт.

22

84157779

DRIVEN GEAR

PTO Driven, 540/1000 RPM

1шт.

23

9823571

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

Incl in 15

1шт.

24

83953236

SNAP RING,3.23mm Thk, Int

1шт.

25

82923152

SNAP RING,1 1/16", Ext

2шт.

26

81819794

SHIM,28.7mm ID x 35.05mm OD x 0.28mm Thk

PTO Shaft, Adjust

1шт.

27

83924761

SHAFT,21 T

Upper PTO

1шт.

28

83926596

O-RING,4.484" ID x 4.762" OD x 0.139"

1шт.

29

82972881

BEARING ASSY

PTO, Output, Shaft, Incl Ref 15 -18

1шт.

Выбрано товаров: 37
